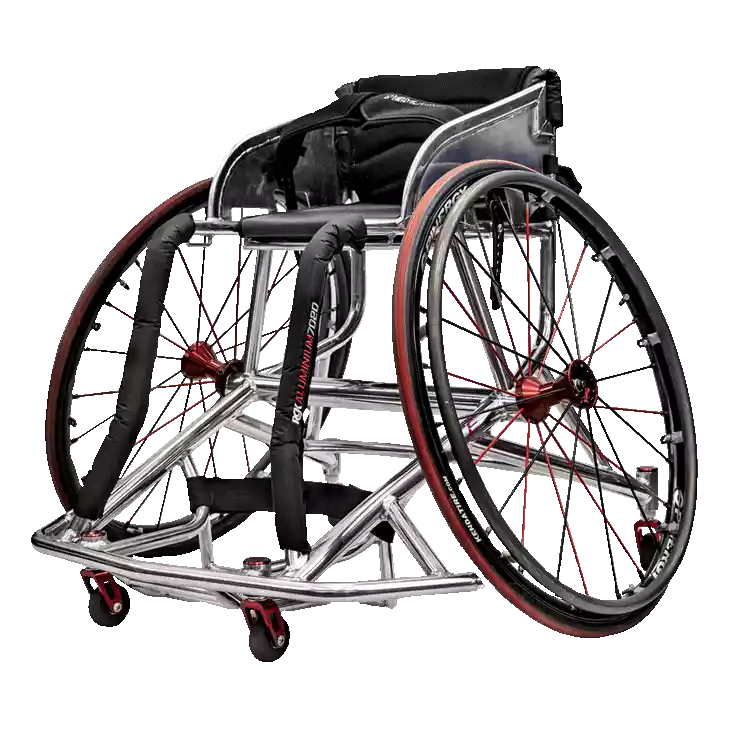

Elite SeriesSports Wheelchair

The RGK Elite Series has evolved from over 30 years of innovation, testing, and expertise. Designed entirely around your measurements and your style of play, the Elite gives you the ultimate responsive connection, ergonomic positioning, and speed that your best performance requires. It's the sports chair of choice for wheelchair basketball superstars such as Sophie Carrigill and Helen Freeman. Why would you choose anything less?

With the perfection of performance and responsiveness of the Elite X, you can bring out your best on the court. At its core, this transcendent chair has a unique, pioneering carbon fiber axle which makes it significantly stiffer and lighter.

The Elite CX features a carbon fiber seat that blends your body and chair to become one entity. This fusion allows for a super responsive connection that remains unparalleled. Bonded together, the wheelchair and player have maximized efficiency and optimized performance; control of the chair becomes pure instinct through direct propulsion.

Contact an RGK Genius Please call 1-800-333-4000 to order this product Options and Prices

Elite Series Comparison

The RGK Elite wheelchair basketball chair is available in three different versions, each with their own strengths: the Elite, the Elite X, and the Elite CX.

	Elite	Elite X	Elite CX
Experience Level	Intermediate to Professional	Intermediate to Professional	Experienced or Professional
Player Classification Suitability	1 to 4.5 players	1 to 4.5 players	2 to 4.5 players
Product Weight	20.3 lbs.	19.2 lbs.	20.3 lbs.
Maximum User Weight	275 lbs.	275 lbs.	275 lbs.
Made to Measure	✔	✔	✔
7020 Aluminum Tri-Frame	✔	✔	✔
Carbon Fiber Axle	-	✔	✔
Carbon Fiber Seating System	-	-	✔
Airtech Sport Technology	✔	✔	-
	Learn More	Learn More	Learn More

Elite Series Key Features

Unparalleled in the basketball world, the RGK Elite's lightweight frame guarantees to deliver the performance your training has paved the way for. The near-endless options available for backrest and seating positioning allow for a setup that will work just for you, ensuring that you have the closest connection and maximum performance to allow you to focus entirely on the court rather than propulsion.

The utmost best performance of your wheelchair is ensured by only using elements produced by market leaders, alongside a staggering 19 quality checks throughout the build, from the initial measurements to the final delivery.

Optimized biomechanics for maximum power and efficiency
Seating position to suit your game
Perfect toe-in/out for minimum drag
Bones Reds high-precision caster bearings as standard to maximize energy
Low-ride caster forks for optimum performance
Tri-Frame aluminum chassis design

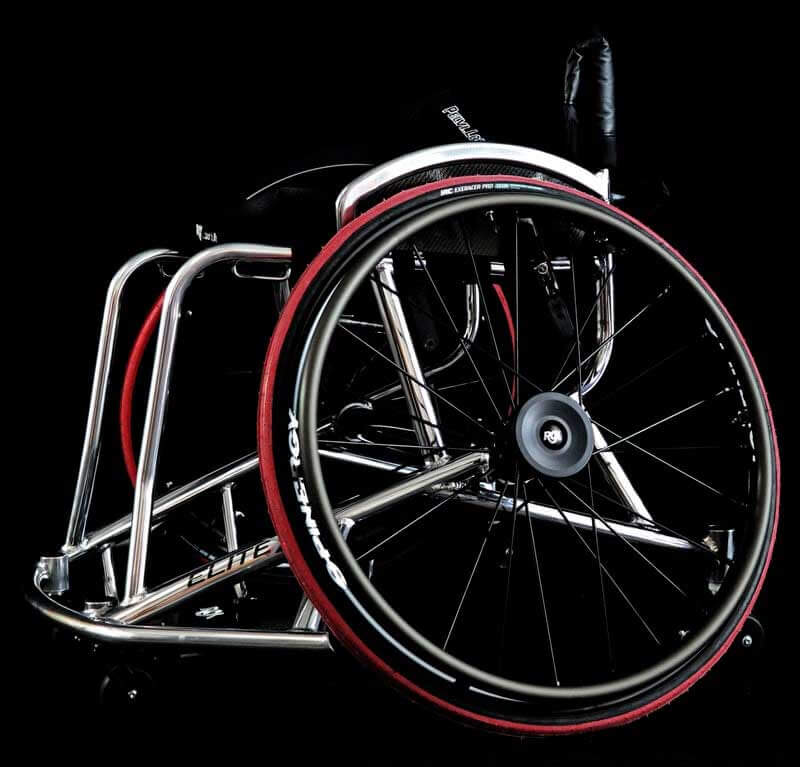

Elite X Key Features
- Carbon fiber axle
- Carbon fiber sideguards with made-to-measure CNC sidearms (upgrade option)
- Ceramic bearings in rear wheels, casters, and frame (upgrade option)
- Titanium fasteners
- Titanium buckles
- Minute design changes for maximum weight saving gains
Elite CX Key Features
- Carbon fiber seating technology for improved agility and responsiveness
- Low friction caster wheels with less dirt pick-up

Tri-Frame

The Tri-Frame is a new design that better distributes the energy expended during play across more sections of the chair. This provides peace of mind that your chair can withstand anything that's thrown at it. Instead of just the axle, the force is now split across the downtube, the strongest part of the frame, as well.

Aerospace-grade 7020 aluminum frame with A10 heat treatment as standard
Triangular frame chassis design (Tri-Frame) that takes the main stress off of the axle with the strongest shape possible
Reinforced "impact areas" to prevent game and travel damage, such as backrest and anti-tip
Heavy duty frame design available

Frame Options

Fixed or adjustable footrest position

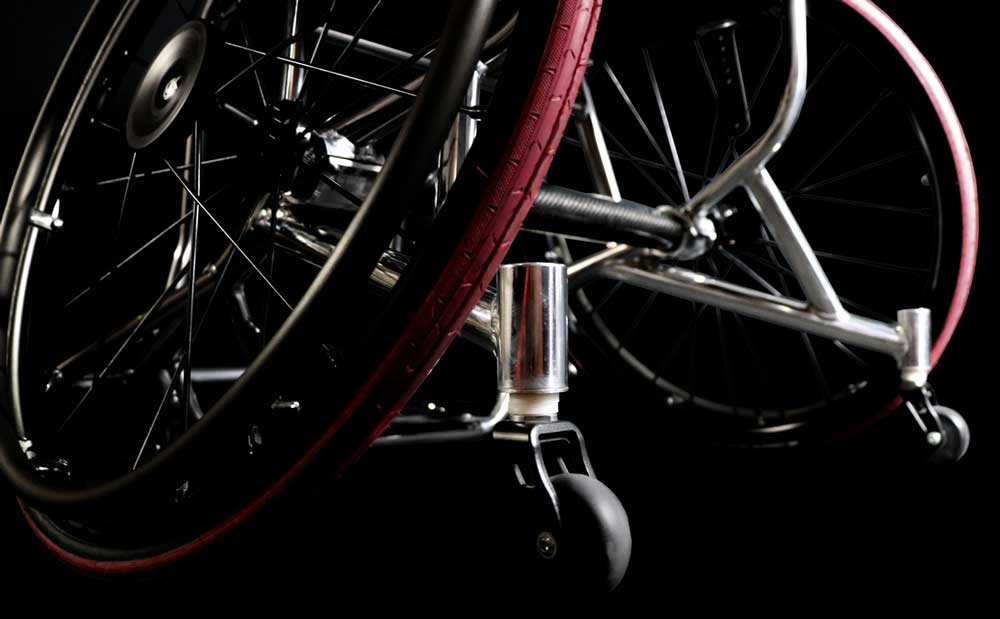

Single or double anti-tip
Fixed or removable anti-tip
Range of front wing designs

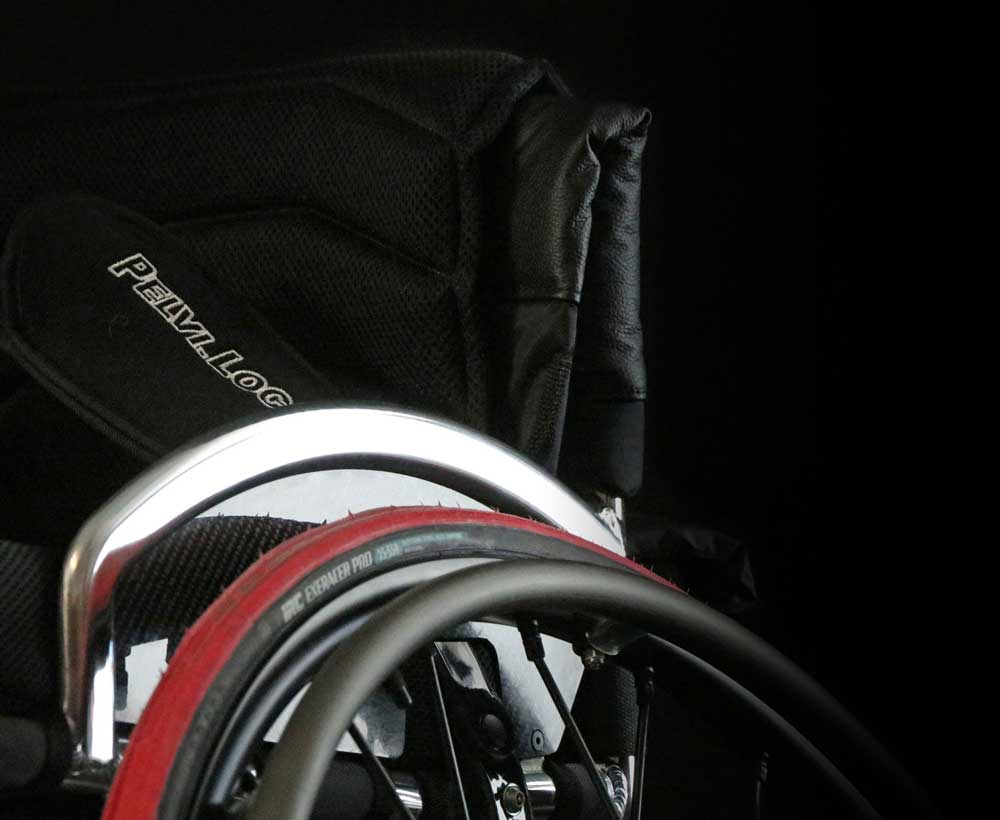

Carbon Fiber Sideguards

Carbon fiber sideguards are exclusive to the Elite X
Up to 3.5 ounces total weight savings switching from aluminum to carbon fiber sideguards.
Specialized CNC sidearms, made to measure each and every time, allowing for any shape to be created. These provide a beautiful edge that is nearly impossible to get when working with carbon fiber.

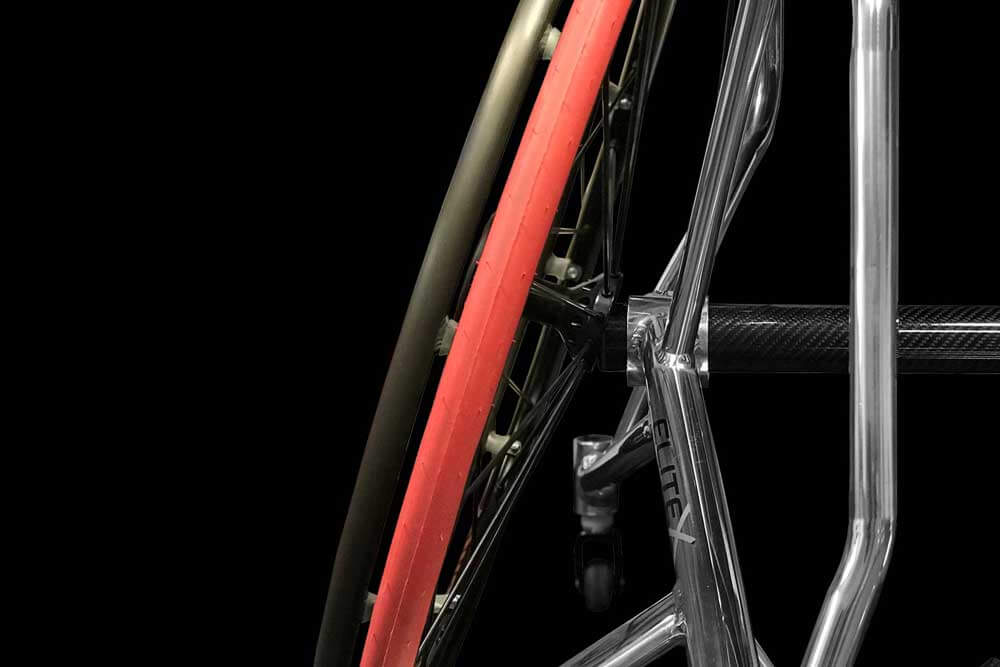

Carbon Fiber Axle

Exclusive to the Elite X and Elite CX, the carbon fiber axle offers a significant weight savings benefit compared to aluminum.
Carbon fiber enhances stiffness and rigidity of the chair (it's 8 times stronger than aluminum!).
The carbon fiber axle is clamped to the frame, not welded in position. This allows for fine tuning of the chair's toe in/out setting so you can get your chair rolling exactly how you want it to.

Elite CX Carbon Fiber Seating System

The most important feature of the Elite CX is the use of carbon fiber in the seat. Carbon fiber has high tensile strength with incredibly low weight. By creating a seat from this material, we are able to curve the design to shape completely around the contours of your body, ensuring the best connection which transfers any upper body movement directly to the chair itself. This evens out the energy distribution, making the chair more comfortable and improves responsiveness & performance.

Optimized biomechanics for maximum power and efficiency
Carbon fiber seating technology for improved agility and responsiveness
Seating position to suit your game
Perfect toe in/out for minimum drag
Bones Reds high precision caster bearings as standard to maximize energy
Low friction caster wheels with less dirt pick-up

Elite CX: Superior Ergonomics

Unique, Elite CX-exclusive carbon fiber backrest and seat shaped to your measurements
Ergonomic seat for pelvic positioning and optimum balance
Tapered seat design for super responsiveness
Seat mounts via clamp to frame, allowing for adjustment and easy removal for transportation
Seat base is easily adjustable 10mm in all directions
Backrest features an adjustable ±5-10° pivot
Curved design shaped around the contours of your body ensures the maximum connection between you and your chair
Evening out energy distribution makes the chair more comfortable and improves responsiveness & performance
A better connection to your seat allows any upper body movement to transfer to the chair

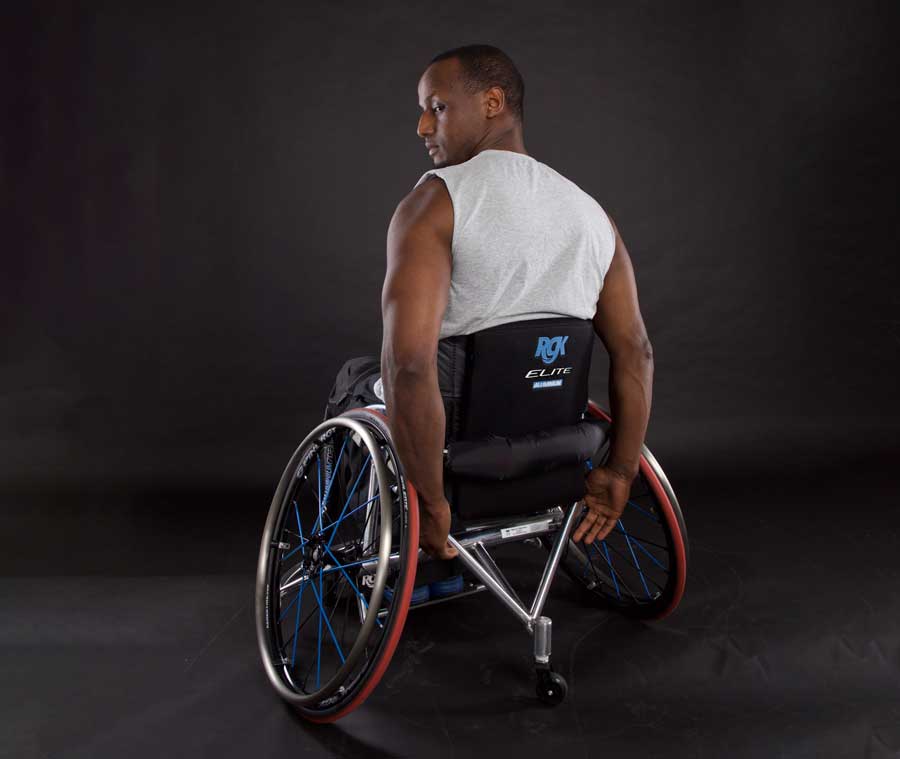

Additional Features

The RGK Elite Series basketball wheelchairs are packed with features and options.

Strength
- Aerospace-grade 7020 aluminum as standard
- Brand-new Tri-Frame design
- Reinforced "impact areas" (such as the backrest and anti-tip) to prevent game and travel damage
- Heavy-duty frame design available
Ergonomics
- Wide range of ergonomic backrest options to support your requirements for maximum comfort and balance
- Ergonomic seat for pelvic positioning and optimum balance
- Tapered seat, V-front, or asymmetrical frame design for superior responsiveness
Personalization
- Choose from polished, brushed, raw, or painted frame finishes
- Choose an accent color to suit your style
- Add your team logo on the backrest
Strapping
- Wide range of ratchet and velcro strapping to connect you securely to the frame
- Calf and toe straps supplied as standard
- Pelvic-loc strapping
- Waist strap available for additional support
- Fixed and adjustable mounting for versatility
- Titanium buckles and fasteners throughout
Airtech Sport Technology
- New mesh strap-adjustable seat upholstery including low-profile titanium buckles
- Tension-adjustable backrest and center pad with mesh cover panels and low-profile titanium buckles for better support and positioning
- Breathable material to keep you cool
- Designed with lightweight and durable kevlar-reinforced wings
Airtech Sport Technology not available on Elite CX

Interested in talking with us directly about your own made-to-measure RGK wheelchair?

Whether you'd like to arrange a demo and assessment or you just have some general questions about wheelchairs, complete this form and a dedicated RGK Genius will be in touch to help you. Your RGK Genius can talk you through the process of getting a new wheelchair and help you to decide which of our extensive range of products is most suitable for your needs.

Name*

Email Address*

U.S. phone number

( ) -

Preferred contact method*

Email
Phone call

Product of interest

Comments

Your personal information will only be used in order to contact you about your interest in an RGK wheelchair. For information about our privacy practices, please see our privacy policy.

Media

Specifications

Dimensions

Seat Width:250 to 500mm (in 5mm increments)

Seat Depth:250 to 500mm (in 5mm increments)

Front Seat-to-Floor Height:480 to 630mm (in 5mm increments)

Rear Seat-to-Floor Height:360 to 630mm (in 5mm increments)

Back Height:203 to 431mm (in 5mm increments)

Back Angle Adjustment:20° of adjustment (10° forward and 10° rearward from 90°)

Frame Angle:Determined by Occupied Frame Length - most common is between 60° and 90°

Center of Gravity (COG) Adjustment:0 to 178mm

Product Information

Model Number:

Elite: ELA
Elite X: EXA
Elite CX: ECA

Performance/Weights

Frame Material:7020 Aluminum

User Weight Capacity:275 lbs. (125 kg)

Product Weight:

Elite: 20.3 lbs. (9.2 kg)
Elite X: 19.2 lbs. (8.7 kg)
Elite CX: 20.3 lbs. (9.2 kg)

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

RGK Elite Series Brochure

Order Forms

Frequently Asked Questions

What is "made to measure"?

Individual Measurements
Over 30 individual measurements are taken of you and the wheelchair, so that it can be designed and built to your individual requirements.

Ergonomic Options
Alongside many functional options, a wide range of ergonomic options are available to provide optimum comfort, balance, and posture.

Lightweight and Compact
The lightest possible solution is achieved using individual measurements, the highest quality materials, and rigid frame designs.

Why "made to measure"?

Optimum Posture
Sitting in the correct position can significantly reduce the risks of developing pressure-related issues in both the short and long term. Good health helps to promote a more active lifestyle, which in turn can positively impact your wellbeing.

Optimum Comfort
Feeling comfortable increases confidence, which helps you to achieve an active lifestyle. The likelihood of developing prolonged discomfort, pain, and persistent injuries is significantly reduced.

Maximum Performance
You and your made-to-measure wheelchair work in complete unison. This reduces the amount of energy needed to propel, and in turn increases the wheelchair's efficiency to maximize your abilities.
