XT4 All-Terrain Power Wheelchair

Push your outdoor boundaries further than ever before

Upgrade to driving the world's most advanced four-wheel drive power wheelchair. The XT4 builds on Magic Mobility's impressive experience in delivering extreme off-road 4WD power wheelchair performance. The XT4 boasts incredible stability, range, comfort, and control over even the most challenging of terrains.

The XT4's patented front and rear suspension, unique servo-powered steering, and high-capacity battery are combined with low-pressure, knobby tires. And it's powered by the torque needed in a world that's not flat. The XT4 is the ultimate wheelchair for outdoor adventurers.

Request a trial

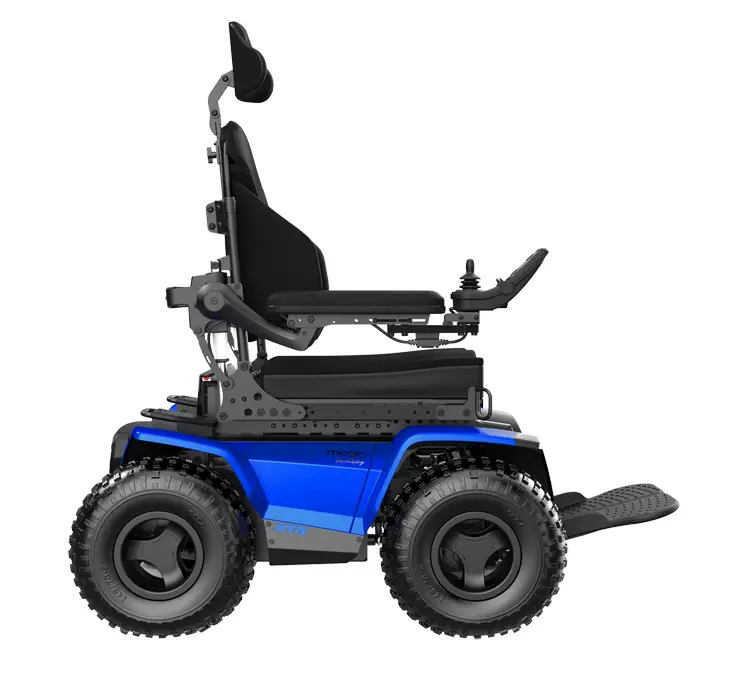

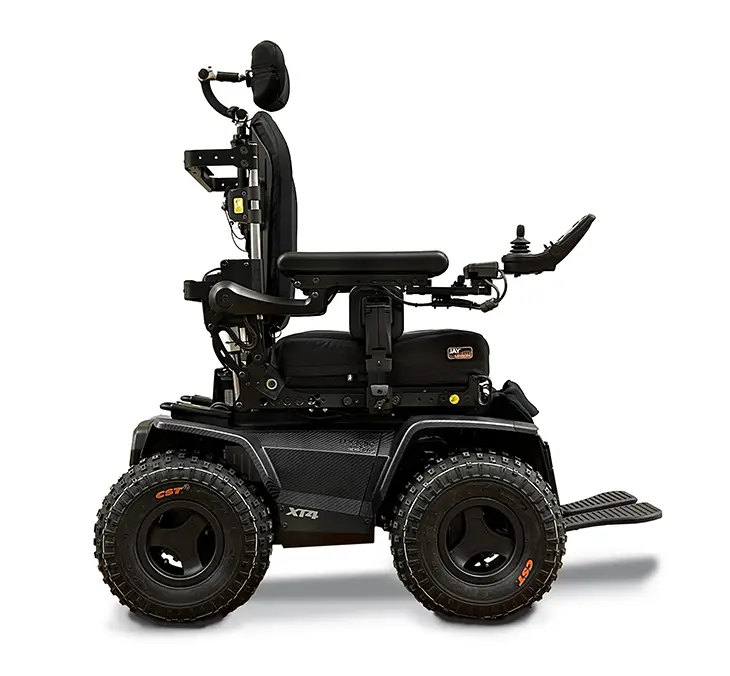

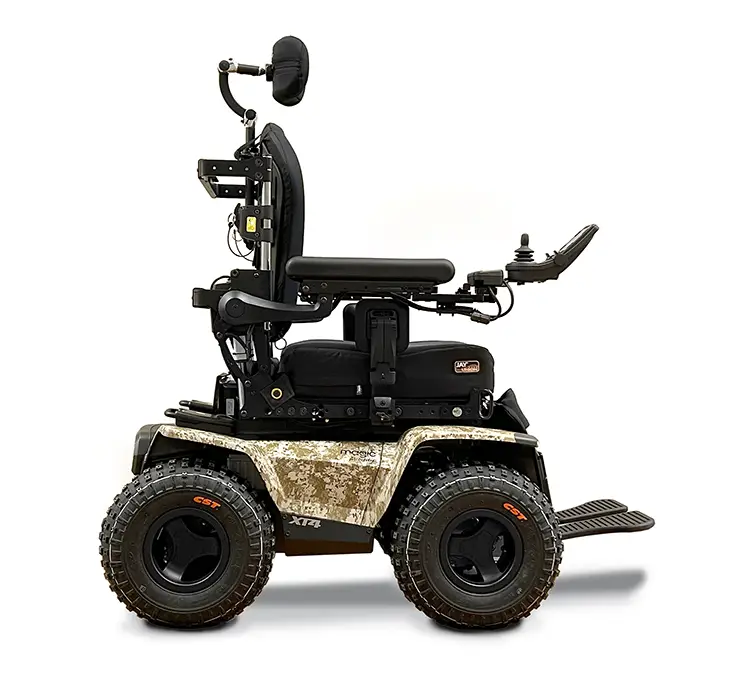

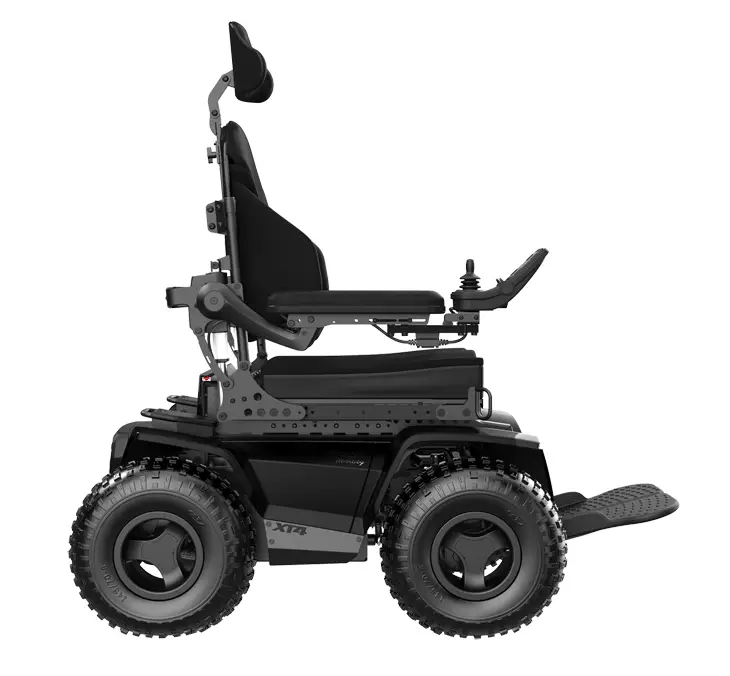

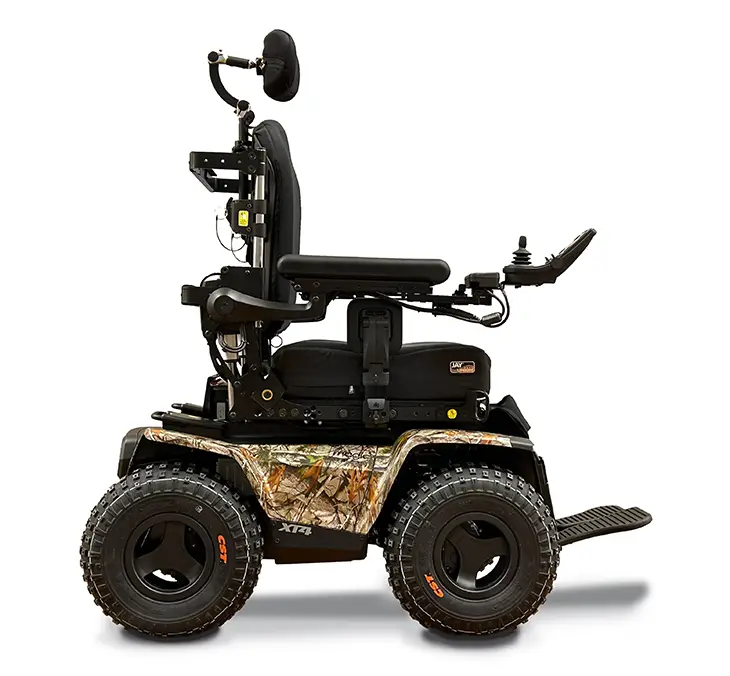

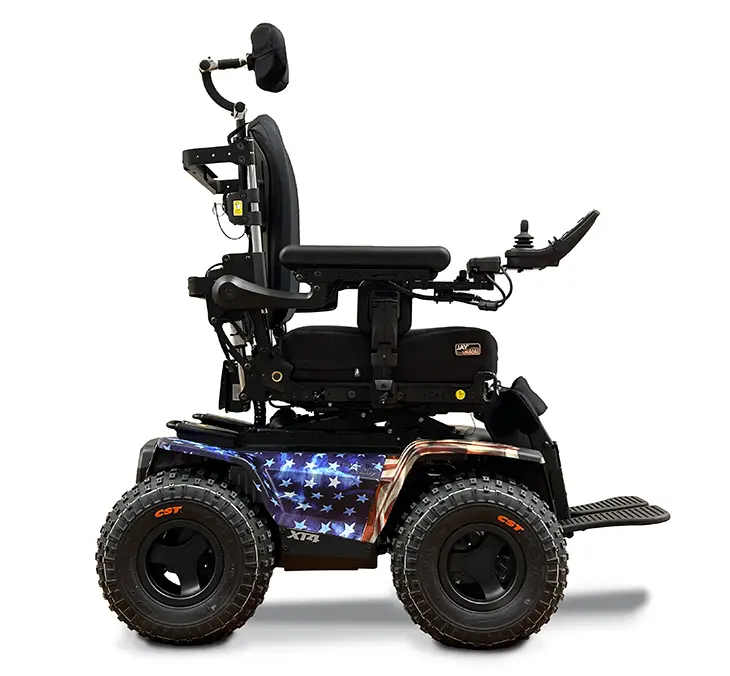

Available colors:

Options and Prices

Magic Mobility XT4 4x4 all-terrain power wheelchair

Patented suspension

Superior 4x4 traction and stability

The XT4's front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps to keep all four wheels firmly on the ground and delivers a smoother ride, greater stability, and more power & control across even the most extreme off-road terrains.

More outdoor features

Servo Power Steering

Effortless, intuitive steering

Steering the XT4 is smooth, easy, and precise. Its servo-powered system eliminates the struggle of traditional 4x4 power wheelchairs, making turning and reversing effortless. Just point the joystick in the direction you want to go, and the front wheels will follow! It makes driving in reverse a breeze and simplifies three-point turns & tight maneuvers. With responsive control and no requirement for a steering lock, the XT4 moves exactly where you want – with less effort and more confidence. Even on slippery or uneven terrain, the steering remains reliable and responsive, keeping you in control no matter where you ride.

Outdoor performance

Unstoppable off-road traction

Each of the XT4's four knobby off-road tires are driven by high-efficiency, high-torque 700-watt motors. Easily power through mud, sand, or snow, and over curbs & other obstacles. Fitted with two massive Group 31 batteries as standard, the XT4 will take you further off-road than ever before.

JAY & WHITMYER Seating and Positioning Options

A wide range of JAY cushions and backs & WHITMYER headrests are available with the XT4 to meet all of your clinical needs.

Find out more

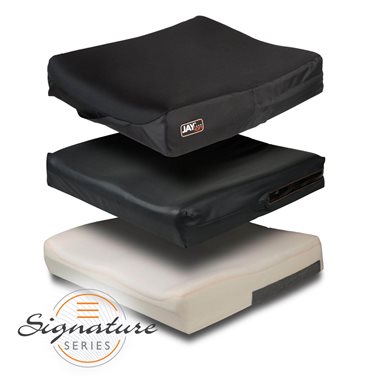

Ion^® Cushion

Comfortable, convenient, and quality skin protection and positioning wheelchair cushion

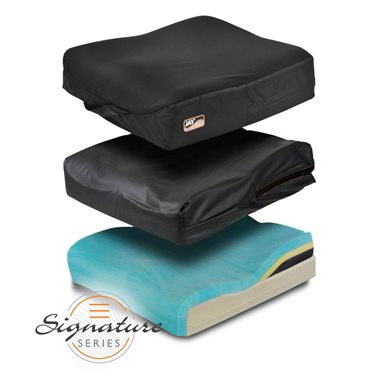

Union^® Cushion

JAY Flow^® fluid and memory foam wheelchair cushion for high performance skin protection and positioning

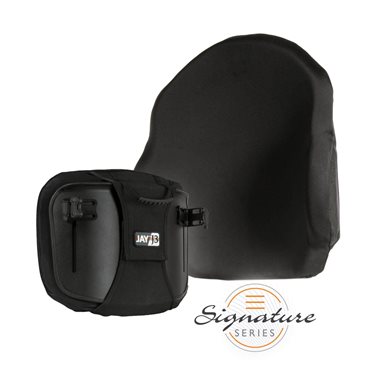

J3^® Back

More sizes. More styles. More wheelchair backs for the perfect fit.

Fusion^® Cushion

Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability

Leave No Trace

The Magic Mobility XT4 is designed to run at low tire pressures, reducing the risk of damaging trails and disturbing the natural landscape. In contrast, chairs with heavy-duty, aggressive tracked treads can cause significant ground erosion, soil compaction, and environmental damage, particularly in sensitive ecological areas.

Specifications

Dimensions

Product Width:27.5"

Product Length:39"

Seat Width:13" to 23"

Seat Depth:13" to 24"

Seat-to-Floor Height:

Back Height:

Rehab back: 16.5"-24"
Comfort (MPS) back: 22" & 26"

Turning Radius:55.5"

Product Information

Performance/Weights

Max. Range:19 miles
(range can be impacted by setup of chair and driving conditions)

Max. Speed:

6.2 mph
3.1 mph at full seat elevation

Battery Size:Group 31

Drive Wheel Position:4x4

Transit:Yes; this product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19.

User Weight Capacity:

400 lbs.
350 lbs. with Elevate or Tilt

Product Weight:Starting at 320 lbs. with batteries

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Magic Mobility Brochure

Order Forms

Magic Mobility XT4 Order Form (April 2025)

Frequently Asked Questions

Can it go in water?

Your wheelchair should not be driven through puddles or across streams/rivers. It is an electrically powered device, with motors low to the ground.

CRITICAL! Your wheelchair has electric motors and must NEVER be driven through water or into rivers, creeks, or the sea.

What is the range of Magic Mobility wheelchairs?

The range of Magic Mobility wheelchairs differs depending on usage and build factors including the battery option selected, weather, frequent stops/starts, or long straight drives. Different terrains will also have an impact on power consumption. Our advice is to familiarize yourself during your daily routine and read the battery section in the owner's manual.

How long will the batteries last?

Generally, with proper care, all the batteries we supply can last up to three years for normal or moderate wheelchair users. For heavy users who drive long distances or on challenging terrain each day, all the batteries we supply may last up to two years. Please see the owner's manual for further details on batteries and battery care.

What tire pressure should I be using off-road?

Lower tire pressures provide more traction in mud, sand, and snow. For use on firmer surfaces, tire pressures may be increased depending upon the weight of the user, their preferences, and their driving capability. The range of the wheelchair improves with higher pressures. Please refer to your owner's manual for further information.

My local mechanic thinks my tire pressures should be higher so I can move easily from on to off-road.
Tire pressures should be adjusted according to the terrain you are driving on, and there is no such thing as the "right" tire pressure for either on or off-road. When on pavement, a higher tire pressure is better, as the chair will get improved range and similar comfort. If the tire pressure is too high for off-road, it may cause damage to the steering or bearings, and the off-road capability will be significantly reduced. If possible, set the pressure according to the conditions and before you go off-road, reduce the tire pressures. This way, you won't cause any harm if you drive it on the road until you reinflate the tires. We strongly recommend you refer to the owner's manual and don't exceed the pressure ratings in the graphs.
