J3^® Back

More sizes. More styles. More wheelchair backs for the perfect fit.

Find Your Dealer

More sizes. More styles. More wheelchair backs for the perfect fit.

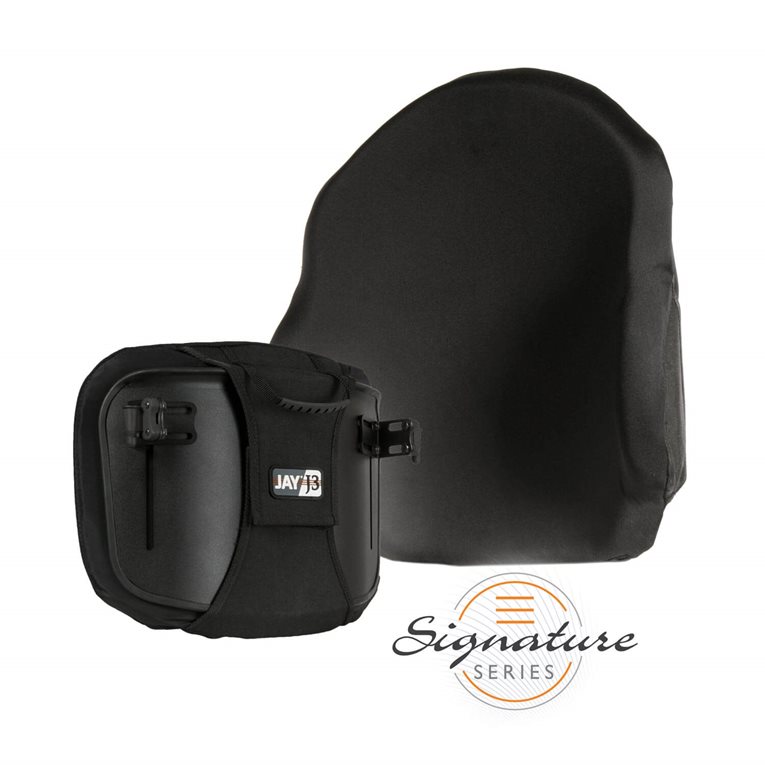

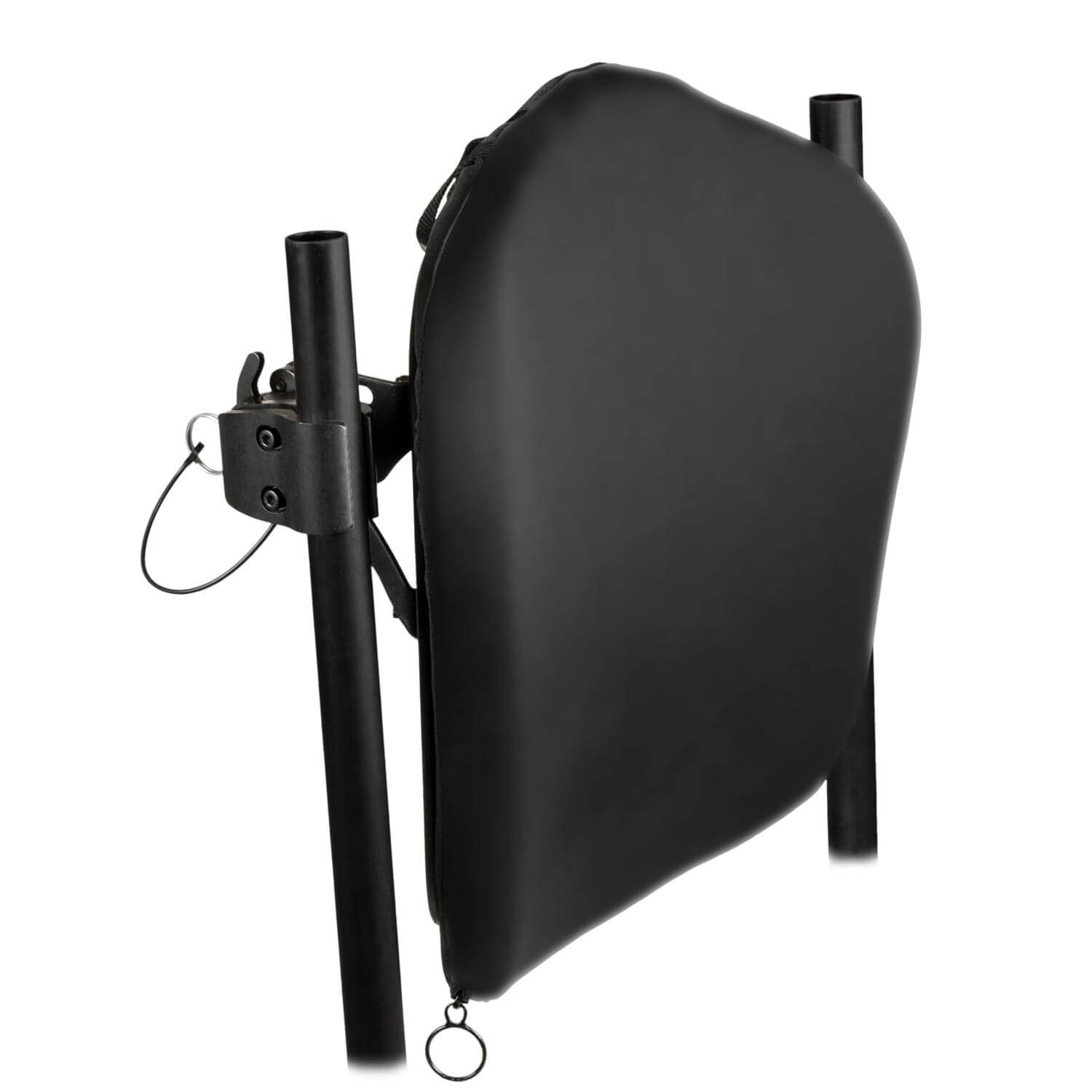

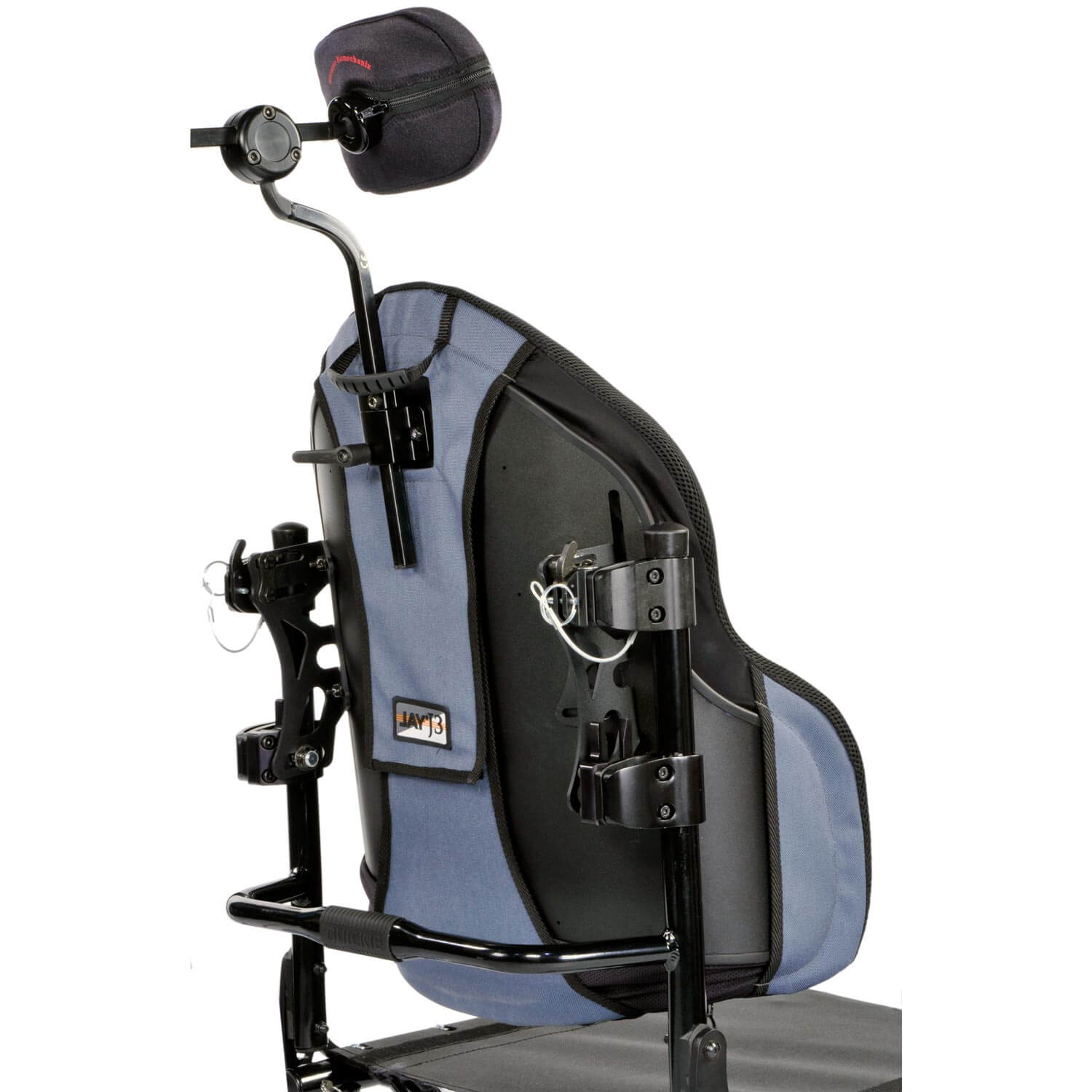

The JAY^® J3^® wheelchair back product line offers a multitude of width, height, and contour depth back shells to fit the back to the client. Each back is lightweight and adjustable, with numerous hardware choices allowing for easy installation. The most popular 6" contour back, PD, is now available in over 40 sizes.

Find Your Local Dealer

Configure

Options and Prices

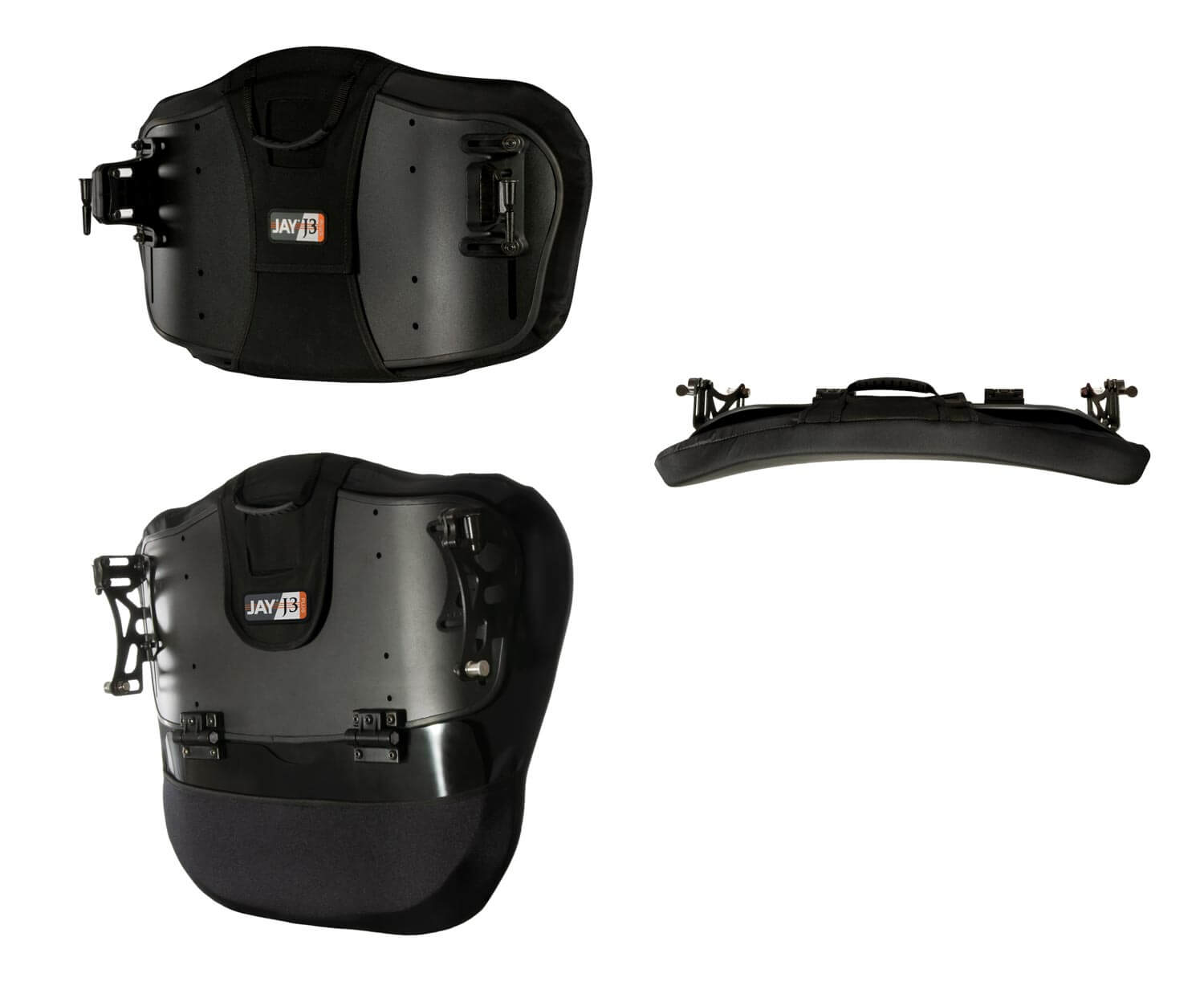

J3 Plus Backrest

Designed to specifically address the pelvic and trunk stability needs of the bariatric client, the J3 Plus Backrest* features an optional lower vanity shell extension that can pivot to accommodate redundant tissues, allowing proper positioning without interference. Accommodating up to 500 lbs. in widths of up to 26", the J3 Plus Backs are available with either TH 2-point or FS 4-point hardware and features a 2.2" deep contour to provide for non-restricted movement.

* available on the Mid Thoracic shell only.

More sizes. More styles. More wheelchair backs for the perfect fit.

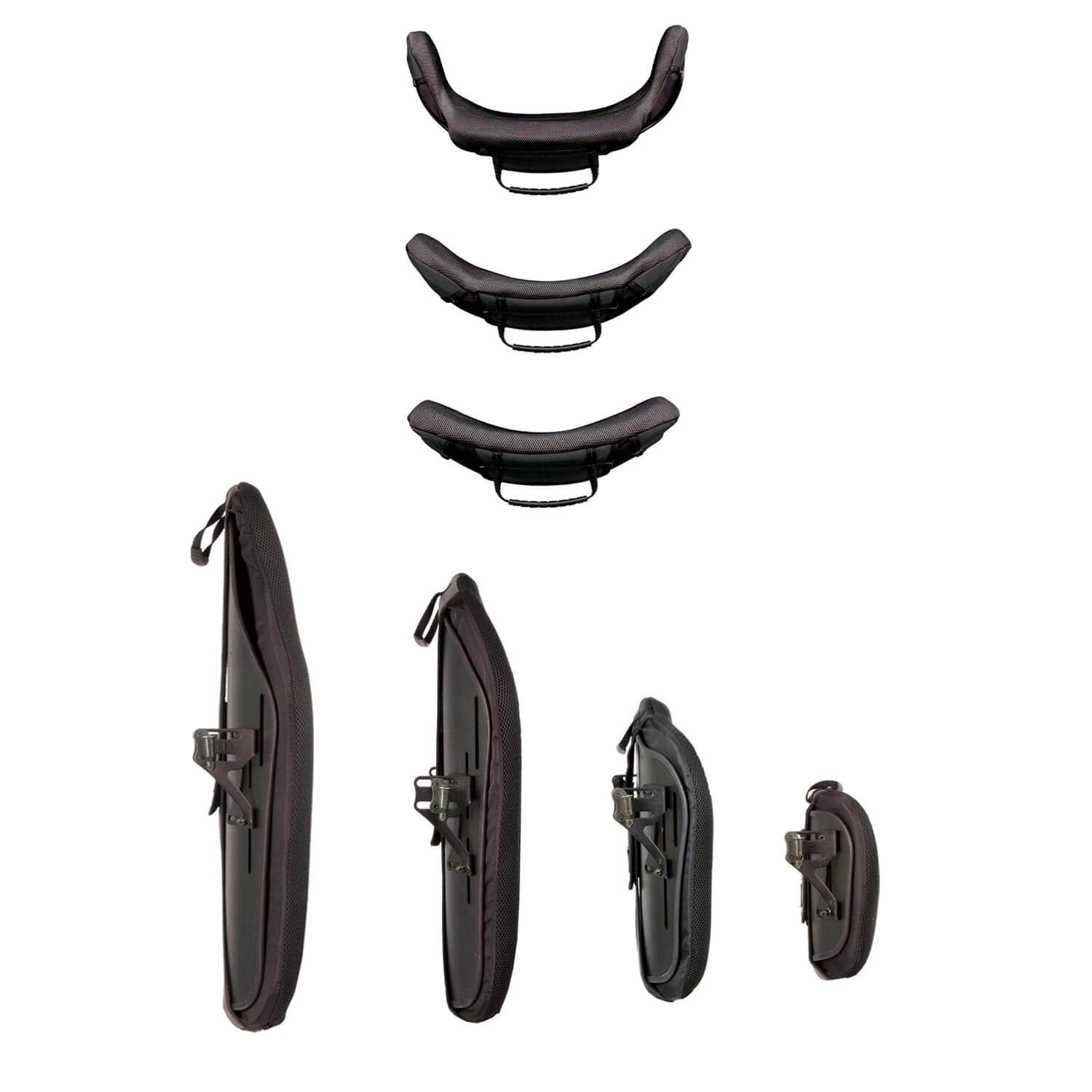

The JAY J3's solid shell is now available in four support height levels to provide support for clients with wide ranges of torso heights and levels of injuries. The addition of five new contour shapes also provides posterior and lateral pelvic and lateral thoracic stability to clients with varying postures and functional needs.

Posterior (PA) - 2.2" of lateral thoracic support
Posterior Lateral (PL) - 3" of lateral thoracic support
Posterior Deep (PD) - 6" of lateral thoracic support
Posterior Deep Lateral (PDL) - 6" of lateral thoracic support
Posterior Deep Contour (PDC) - 6" of lateral pelvic support

Lower Thoracic - 6.5" to 9.5"
Mid Thoracic - 12" to 15"
Upper Thoracic - 16.5" to 19.5"
Shoulder - 21" to 24"

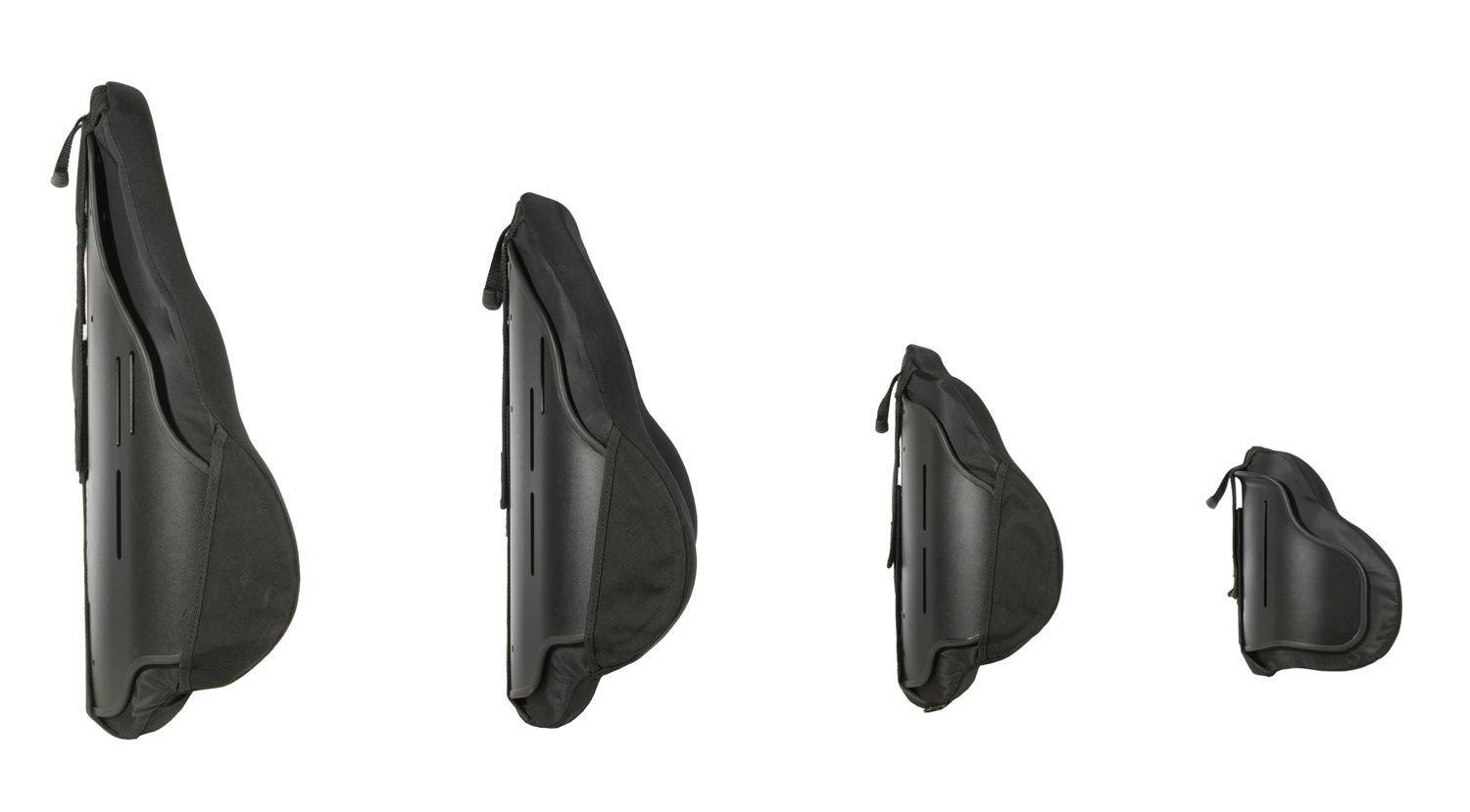

PD Back Now in Over 40 Sizes

The most popular 6" deep back is now offered in heights from 8" to 24" and widths from 12" to 20". The PD Back provides excellent midline postural support and positioning, while the curved 7" tall built-in contoured laterals offer exceptional thoracic stability.

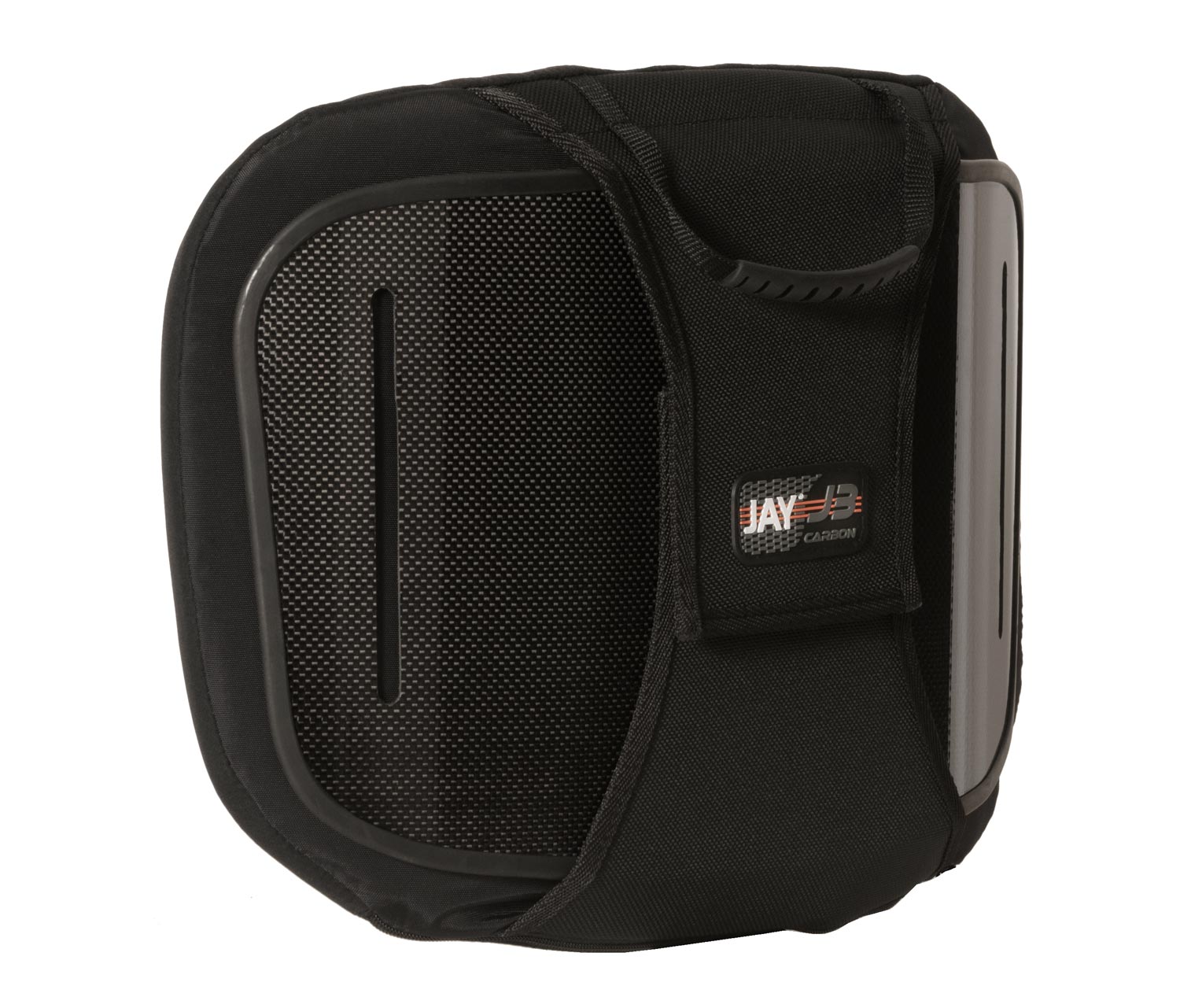

Carbon Fiber Shell

The J3 Back now offers a Carbon Fiber shell option for the ultimate in lightweight performance. Weighing as little as 2.2 lbs. when combined with RH hardware, the J3 Carbon Fiber Back is the perfect addition to any Quickie ultra lightweight wheelchair. The J3 Carbon Fiber Back can also be paired with the Freestyle Backrest System, available on the Quickie Nitrum.

Media

Specifications

Product Information

HCPCS Code:

PA: E2613/E2614
PL: E2615
PD, PDL, PDC: E2620

Dimensions/Weights

Product Height:

Lower Thoracic: 6.5", 8", 9.5"
Mid Thoracic: 12", 13.5", 15"
Upper Thoracic: 16.5", 18", 19.5"
Shoulder Height: 21", 22.5", 24"

Product Width:12" to 26"

Product Weight:1.4 lbs. and up (without hardware)

User Weight Capacity:

12" to 20" widths: 300 lbs.
22" to 26" widths: 500 lbs.

Product Options

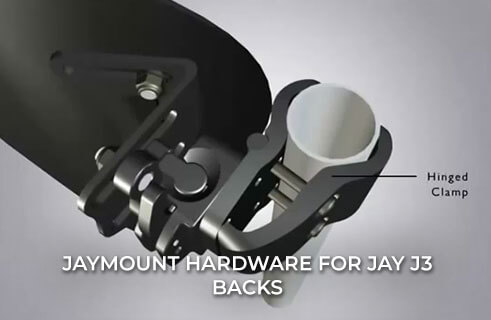

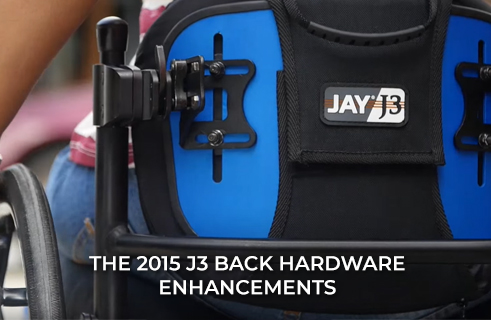

Hardware Options:

RH
SH
TH
4-Point

Hardware Angle Adjustability:20°

Hardware Width Adjustability:+2"

Frame Tubing Compatibility:3/4" to 1 1/8"

Headrest Mount Available:Yes

Shell:Lightweight, contoured

Lateral Contour Support:

PA: 2.2"
PL: 3"
PD, PDL, PDC: 6"

Insert:1 ½" soft foam

Outer Cover: Spacer Fabric and Lycra^® Stretch Outer Layer

Optional Positioning Accessories:

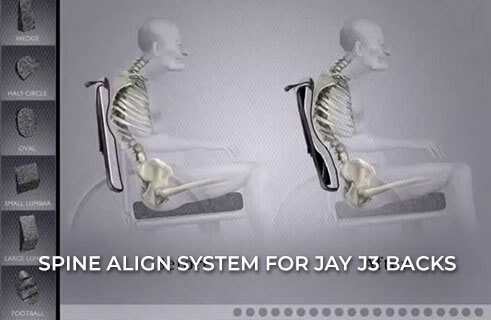

Spine Align Posture Conforming Inserts
Lateral Thoracic Pads
Chest Straps/Harnesses
Whitmyer^® Head Supports

JAY Your Way Modifications Available:Yes

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
