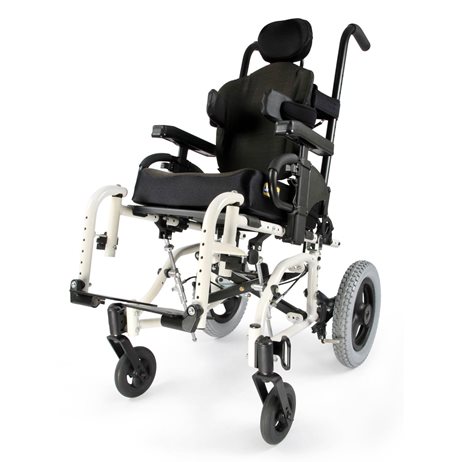

IRIS^® Tilt In Space Wheelchair

The superior standard for rotation-in-space wheelchair technology

Find Your Dealer

40° or 55° of Intelligent Rotation in Space Technology

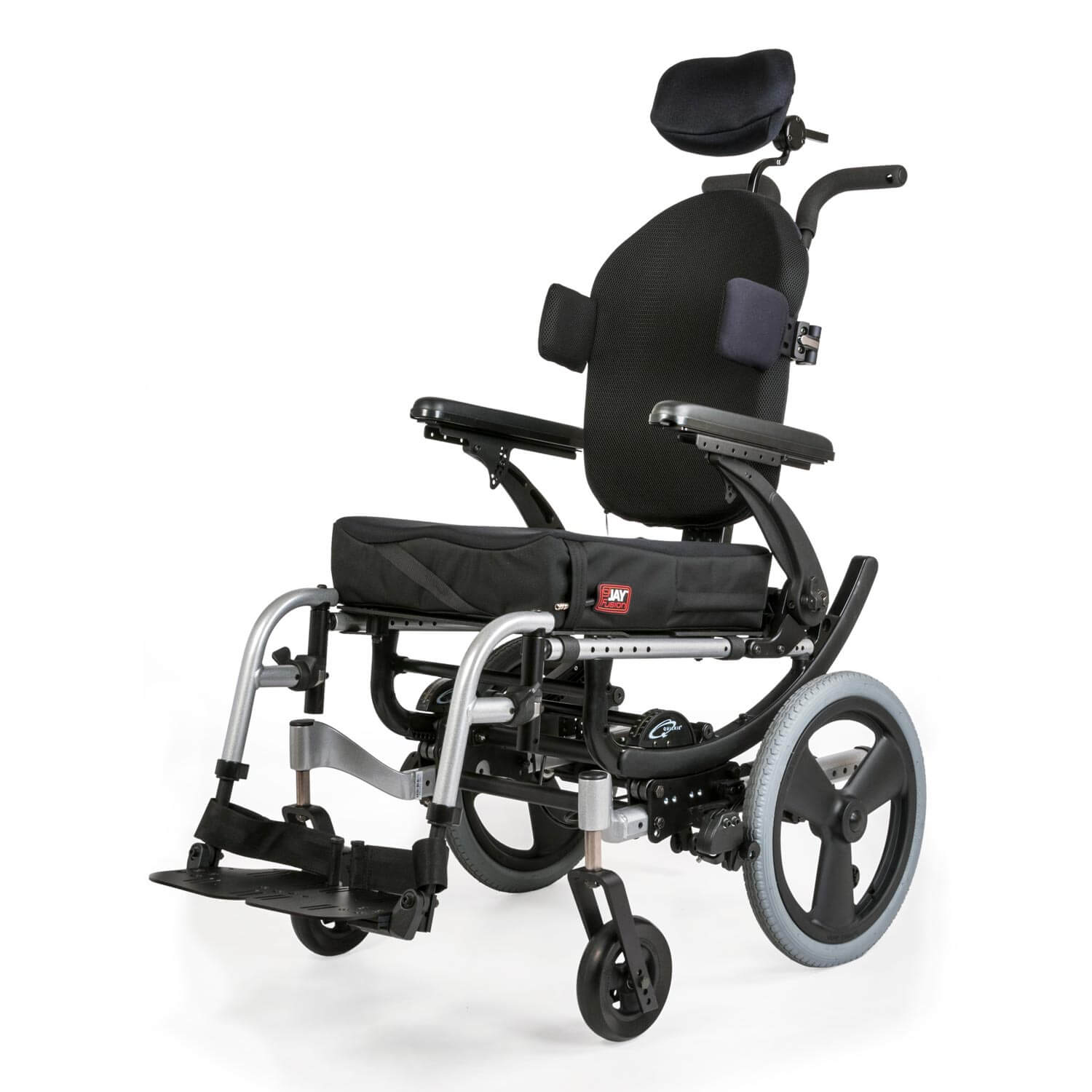

The ultimate tilt-in-space wheelchair, the QUICKIE^® IRIS^® features up to 55° of Intelligent Rotation in Space (IRIS) Technology, the broadest range of positioning and caregiver options, numerous adjustments, and one of the lightest weights among tilt-in-space wheelchairs on the market. Intelligent Rotation in Space technology means the seat frame rotates around the rider's center of gravity. This results in a smooth tilting motion that is easy to control and allows for the shortest possible wheelbase for easy maneuverability. The IRIS manual wheelchair features 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation for superior positioning.

Find Your Local Dealer

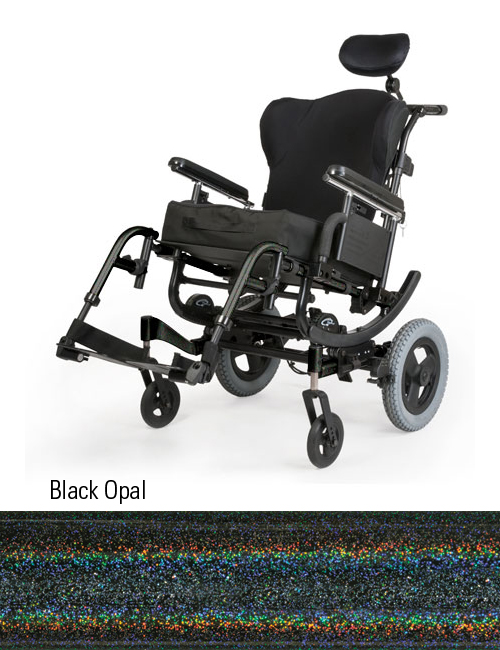

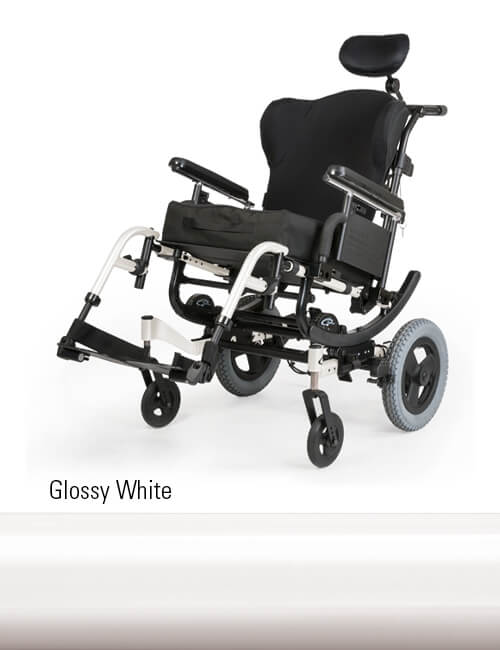

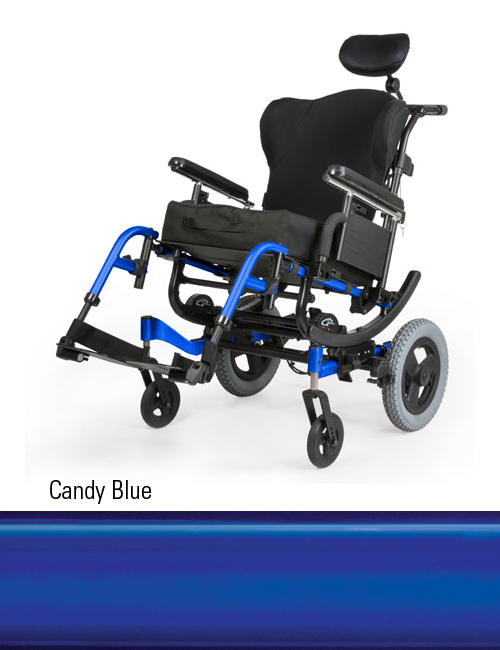

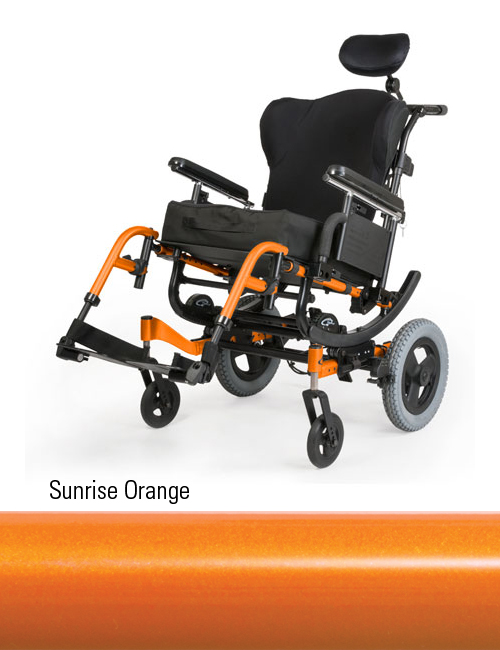

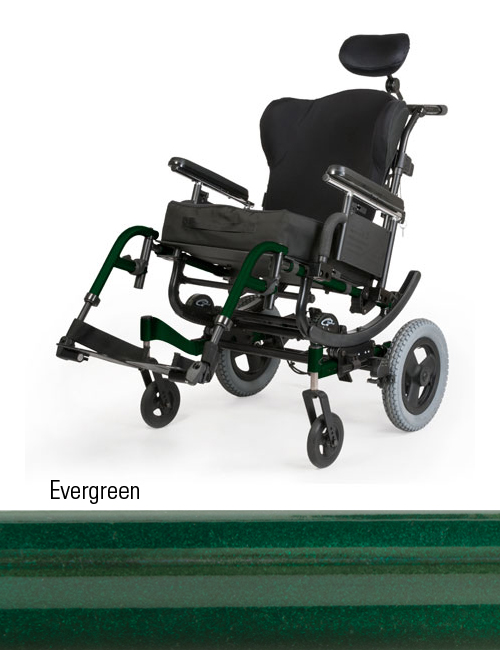

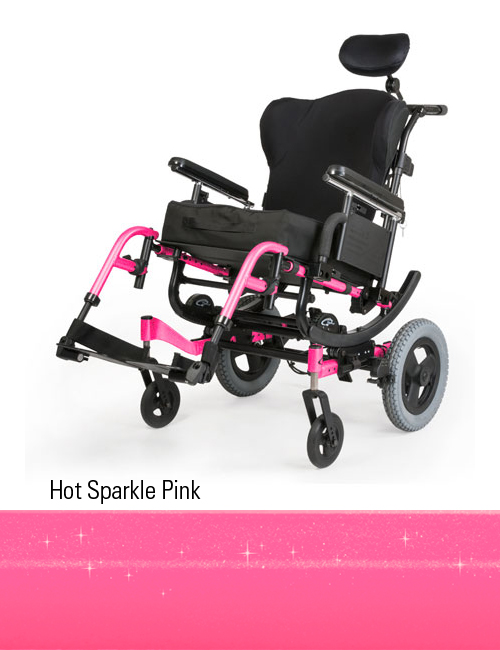

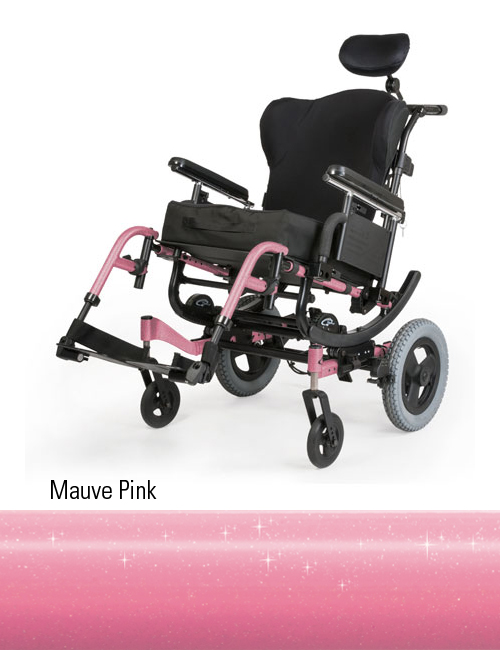

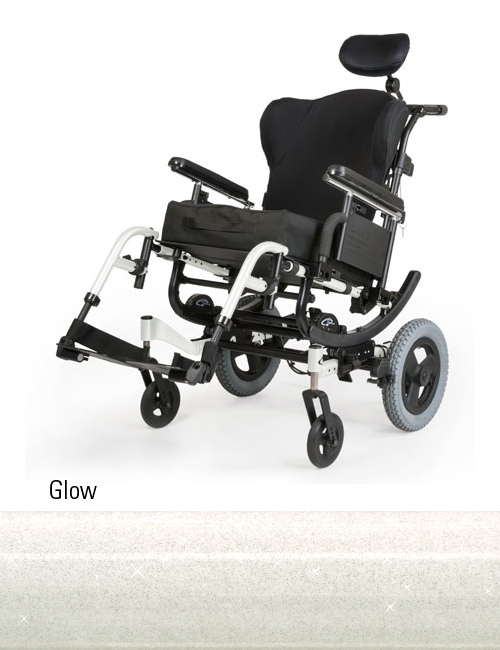

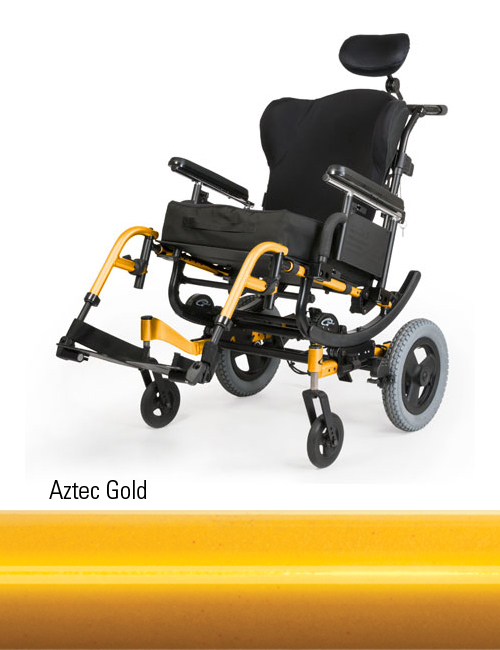

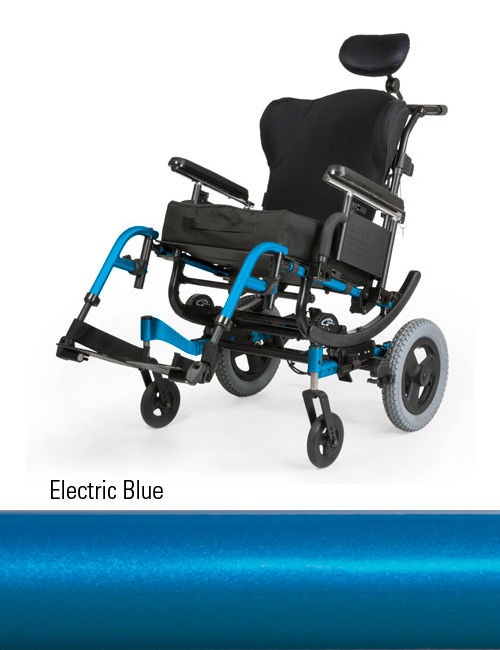

Available colors:

The color options shown are for reference only. They are not intended as accurate representations.

Options and Prices

QUICKIE IRIS: From Invention to Perfection

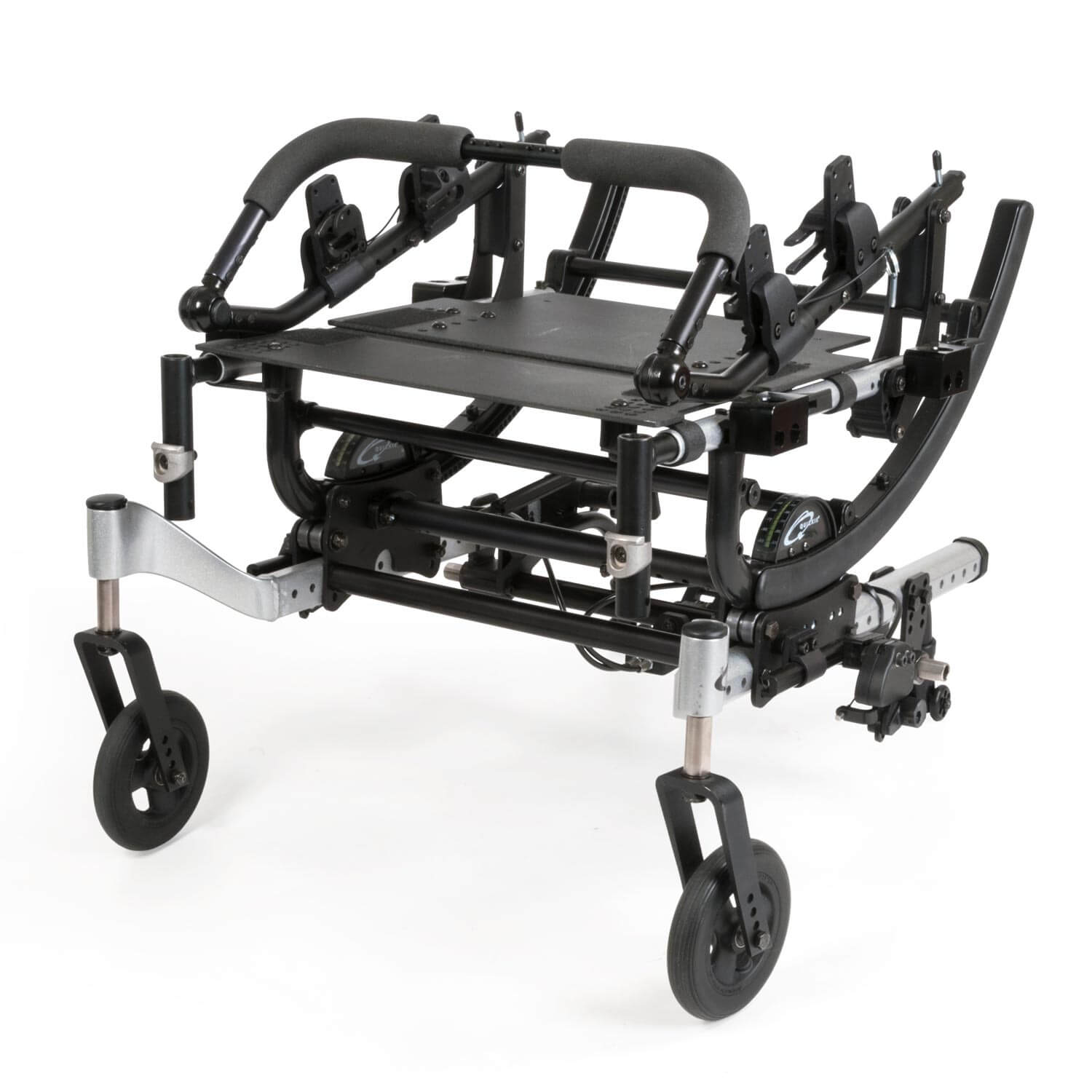

The QUICKIE IRIS^® employs a unique tilt mechanism with a curved rocker arm, enabling the seat frame to rotate on the base frame while keeping the individual's center of gravity (COG) closely aligned with the chair's center of rotation (COR). This alignment is maintained throughout the tilt cycle, offering several advantages over other tilt systems. The IRIS allows the shortest wheelbase to enhance maneuverability without compromising stability. The alignment of COG and COR reduces the risk of front-loading the casters without sacrificing safety. Additionally, the optimal alignment minimizes the effort required for tilting, promoting smooth and effortless movement. The constant COG alignment helps eliminate issues associated with horizontal shifts in other tilt systems, such as triggers for spasticity, agitation in riders with cognitive issues, and protective extension reactions.

The QUICKIE IRIS features a Standard weight capacity of 300 lbs. and a Heavy Duty weight capacity of 400 lbs.

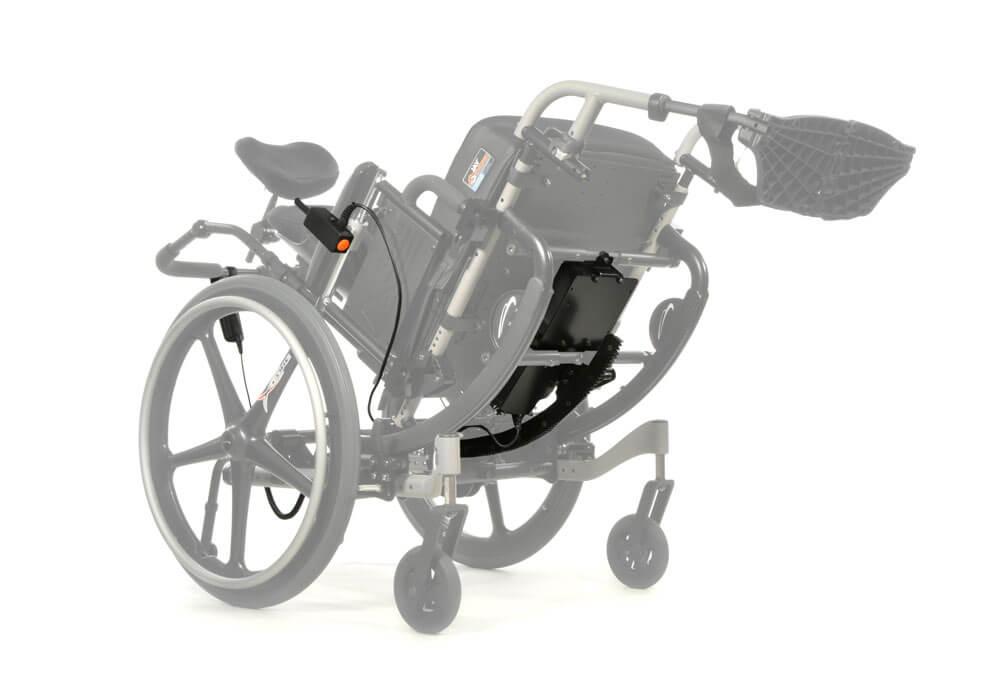

Power Tilt

The Power Tilt feature puts the rider in charge of their own comfort all day long. With a simple toggle switch conveniently located on the armrest, the rider can effortlessly adjust their body position for maximum comfort, relaxation, and skin protection. Easy to use and designed to enhance their sitting experience, Power Tilt gives more control to the rider. This feature not only improves comfort, but also helps with sitting tolerance, allowing the rider to participate more independently in daily activities and connect better with the world and those around them. Power Tilt is available for the IRIS, IRIS Heavy Duty, and the SR45 models.

Attendant Control

Though the QUICKIE IRIS is effortless to tilt, with the Attendant Control, caregivers can tilt the rider without any manual effort. The control panel, displaying the battery gauge on top, eliminates the guesswork for charging time. Attendant Control is versatile and can be hung anywhere on the chair.

Toggle Switch

The Toggle Switch provides flexibility by being mountable either vertically or horizontally, catering to the rider's preferences for easy reach. Conveniently placed on the toggle switch, the charging port ensures easy access. The Power Tilt feature is also available as a retrofit kit for added convenience.

Empulse R20: Supporting Caregivers

The Empulse R20 power-assist device makes it simple to help the caregiver push the wheelchair. It's handy uphill, downhill, and on long trips, all without affecting self-propelling or pushing. This foldable and lightweight device is easy to transport either attached or detached from the wheelchair using its backpack.

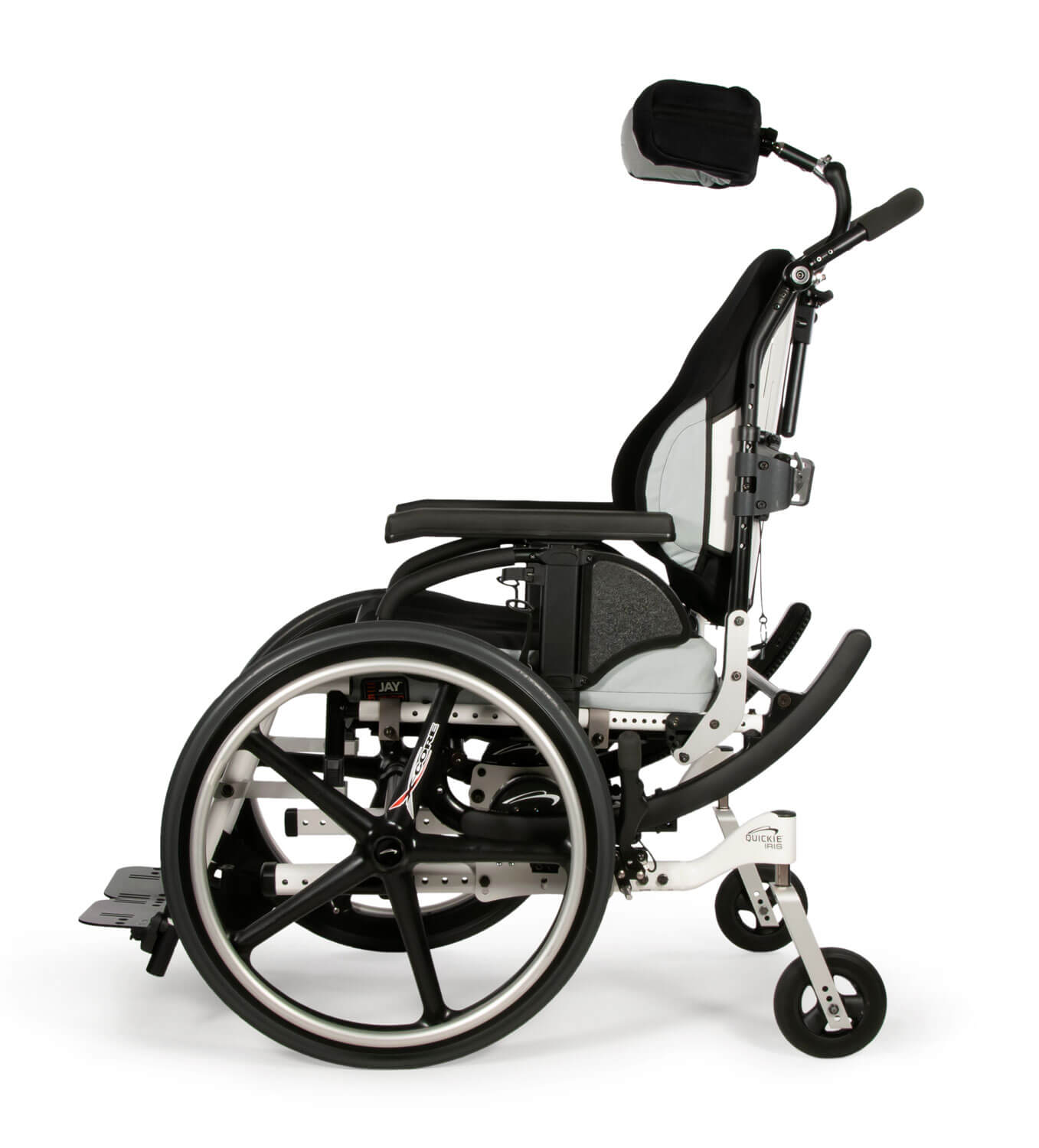

Reverse Configuration for Independent Mobility

Opt for an IRIS with reverse configuration if full tilt for pressure distribution and the ability to self-propel is desired. With a larger wheel in the front, this setup enables the rider to have increased control of the wheel, enhancing self-initiated movement.

Ride Designs

A Ride Designs Seating System works well on a QUICKIE IRIS to provide intimate support where needed, matching unique body curves while changing position in space. A Ride seating system also helps boost postural control and stabilize the pelvis and trunk, often resulting in increased performance and freedom of movement, while enhancing pressure distribution away from bony prominences.

Lower Extremity Features

The QUICKIE IRIS offers the broadest range of options in hangers, legrests, and foot plates.

Enhanced Hanger Latch

Riders with high tone can be hard on the hangers, causing breakage. A stronger latch with aluminum components is available as an option.

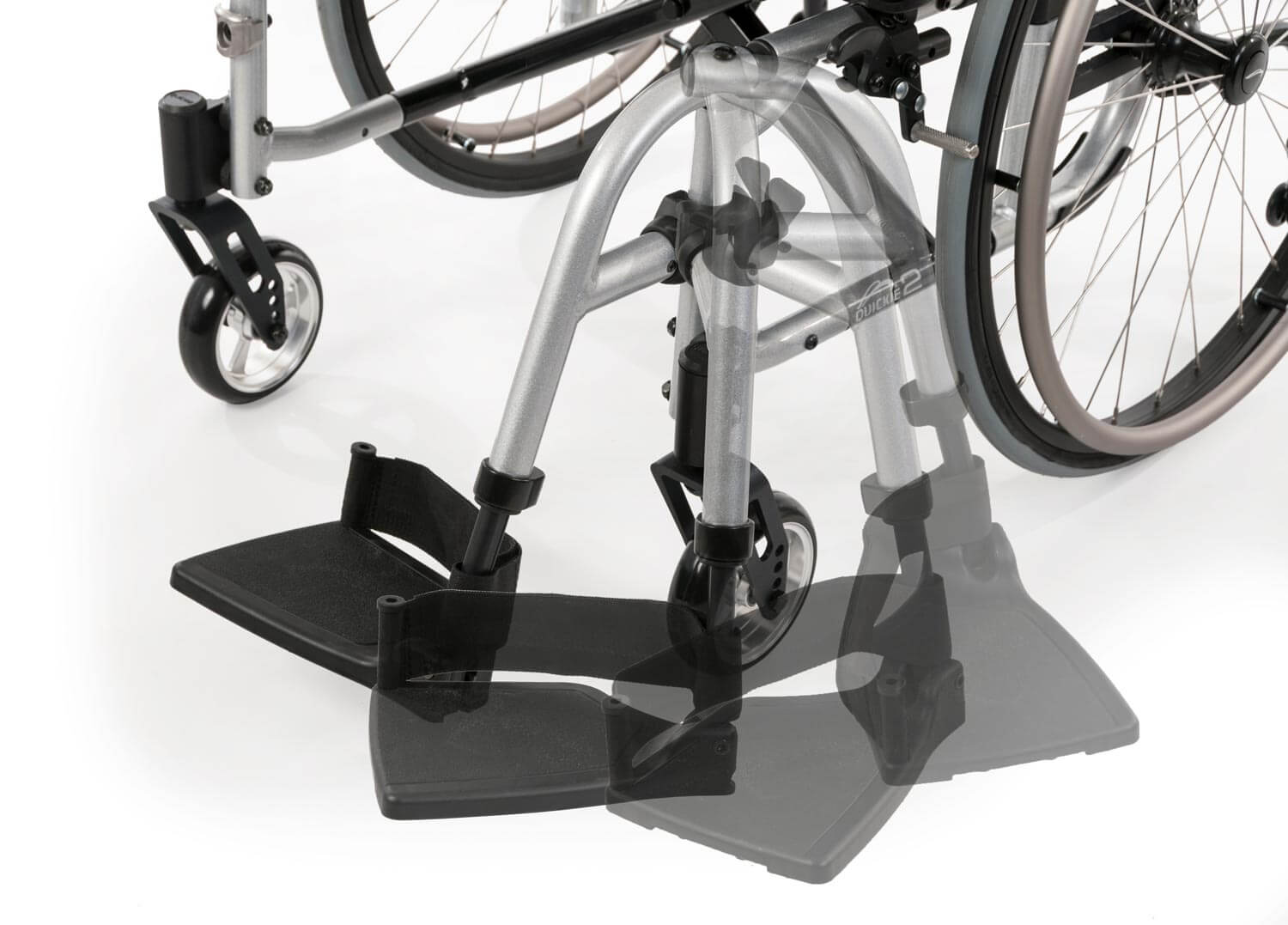

Swing-In/Out Hanger Designs

The IRIS's swing-in/out hanger design features an intuitive bi-directional release lever. A tapered locking mechanism prevents the hanger from loosening over time. The swing-in design allows the rider to get close to a bed or chair for transfers while keeping the legrest on the wheelchair.

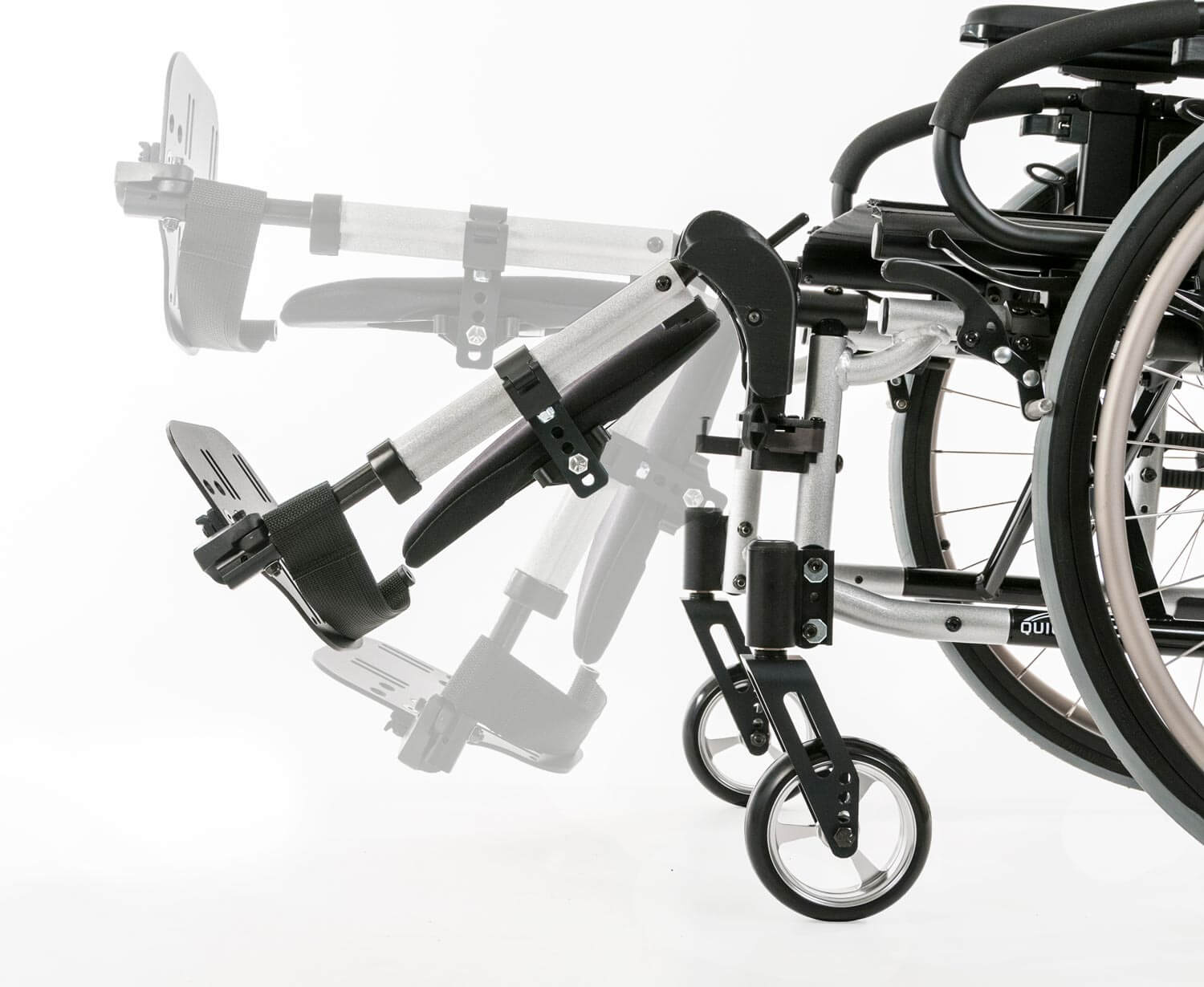

Elevating Legrest

The Elevating/Articulating Legrest includes two inches of heigh adjustment to better align with the knee joint for a natural motion. Audible clicks index its position as it is elevated. The improved latch mechanism allows swapping between swing-in/out hangers and ELR/ALR without additional hardware.
JAY Lower Extremity Support

The JAY Lower Extremity Support option is fully integrated into the QUICKIE IRIS hanger mount. The swing-in/out latch mechanism design makes changing hangers from the lower extremity support a very intuitive process. Available in two pads sizes, the technology allows for vertical and horizontal angle adjustment to achieve the proper support for the rider's needs.
Contracture Footplate

The Contracture Footplate is a durable wheelchair footrest designed for people with a decreased range of motion at the knees or the tendency to pull their legs into flexion. This footrest accommodates that range and is built to withstand regular use. It offers reliable support and comfort, ensuring a sturdy and lasting solution for those with specific mobility needs.
Foot Boxes

Pair the QUICKIE IRIS with JAY foot boxes designed to support the feet, ankles, and even calves. Properly positioned feet can help reduce pressure on other areas of the body, including under the pelvis. Pair with a JAY cushion, back, or made-to-order seating system to maximize the effectiveness of your seating solution.

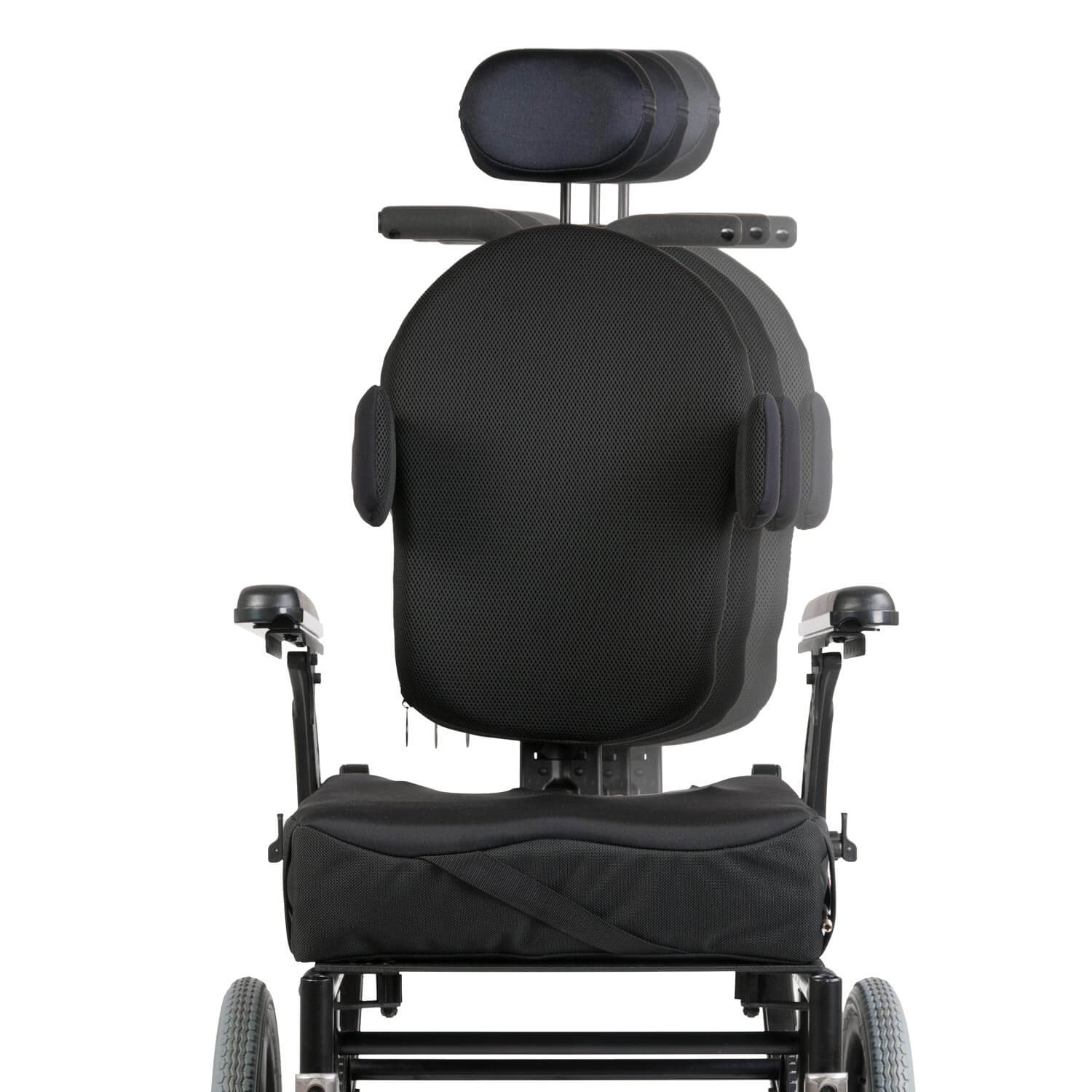

MONO Backrest System

MONO Backrest System^®

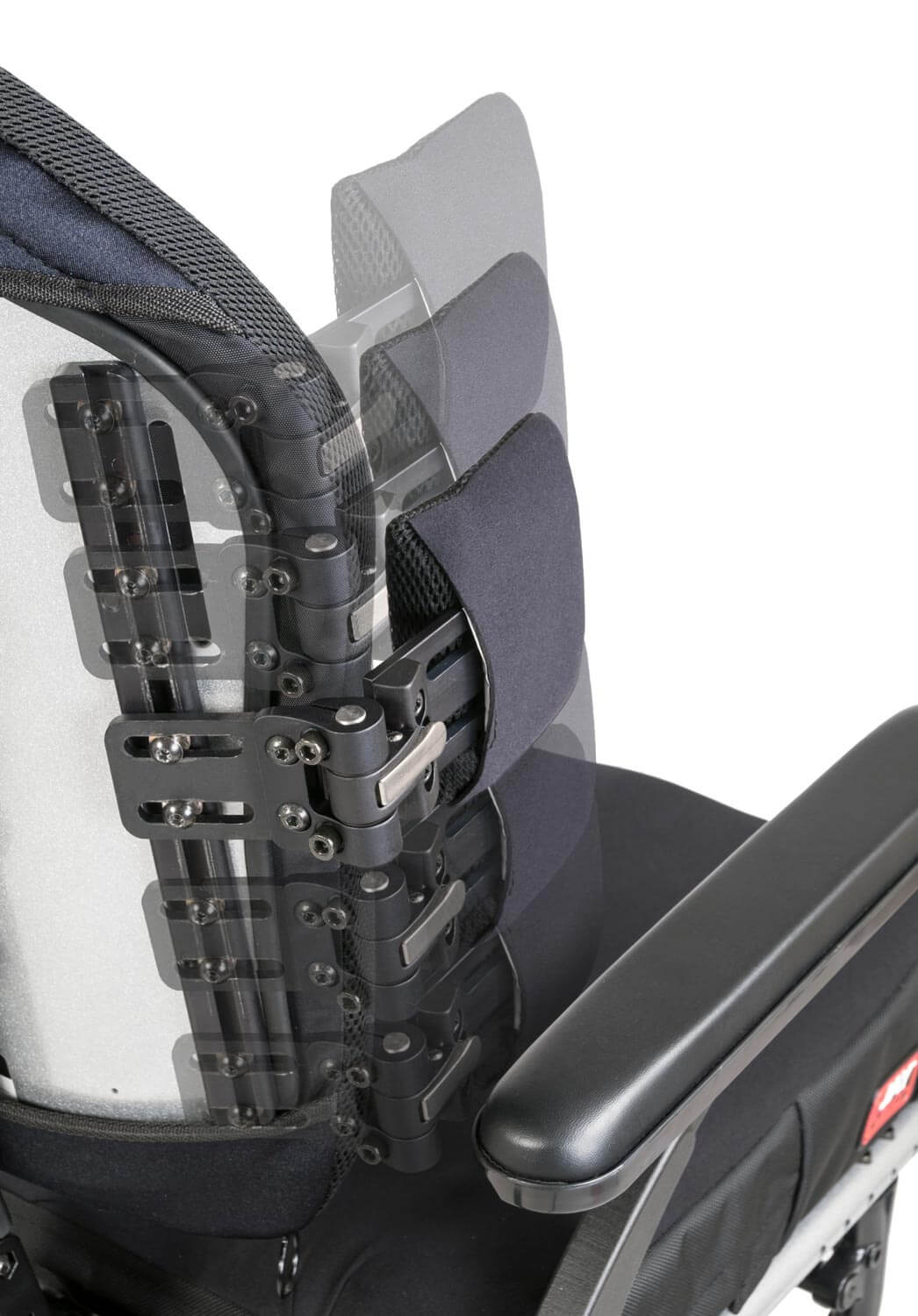

The MONO Backrest System offers an optional dynamic function, 35° angle adjustment, and forward folding for easy transport. The MONO Backrest System's single post offers limitless seating and positioning capabilities.

By mounting the backrest to a single central post, the backrest and chair widths may be selected independently
Infinite backrest height is adjusted with the rider
Hardware interference is eliminated to allow for infinite adjustment of lateral thoracic supports
The backrest can achieve two inches of midline backrest offset
A dynamic back is easily added
30° of mechanical recline is available
A vent or other accessories are easily added

Learn more

Options & Accessories

A full line of accessories is available for the IRIS, including armrests, foot hangers, caster types, rear wheel sizes, positioning belts, trays, and colors. Some of the more popular accessories are detailed below, and more can be found on the Manual Wheelchair Options & Accessories page.

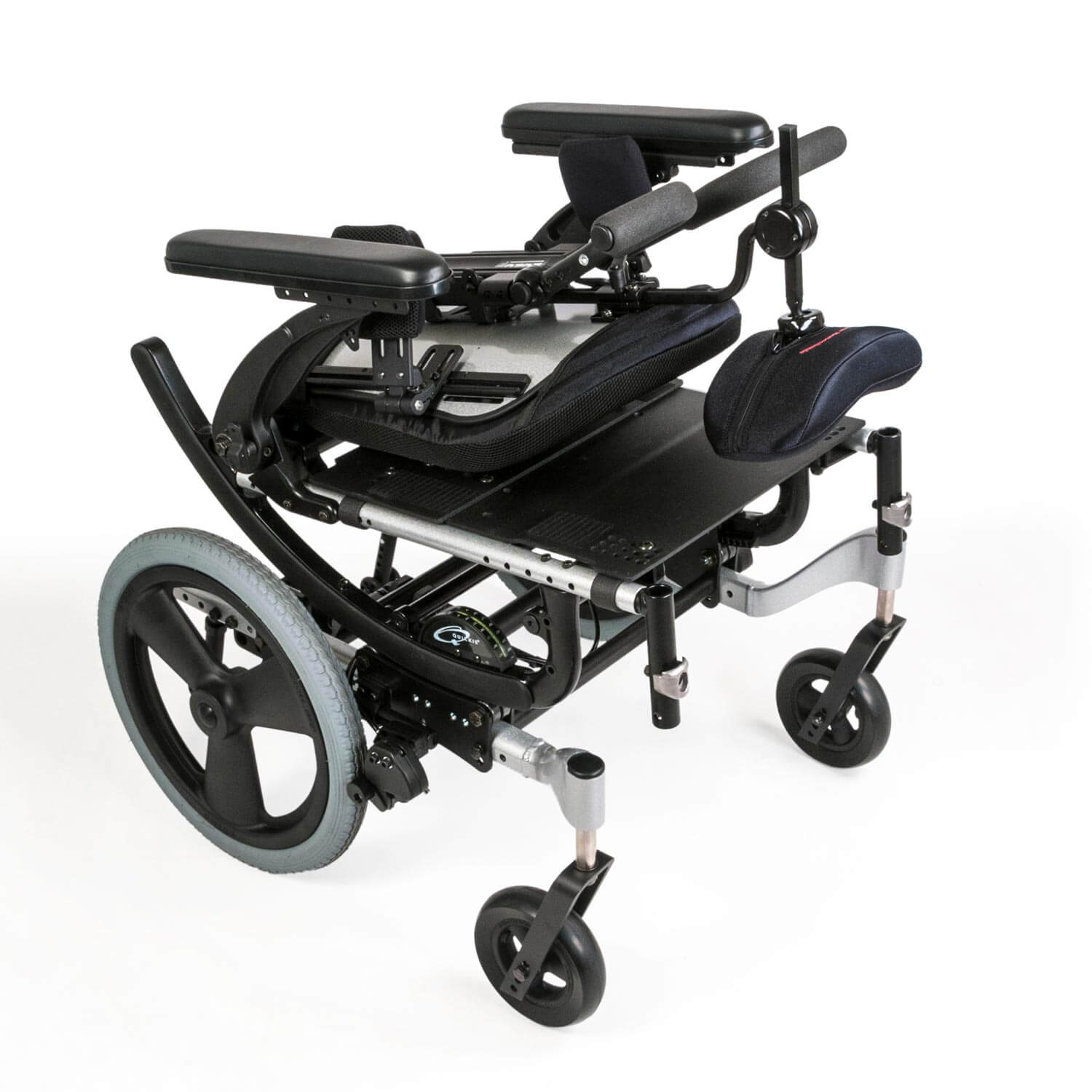

Transit

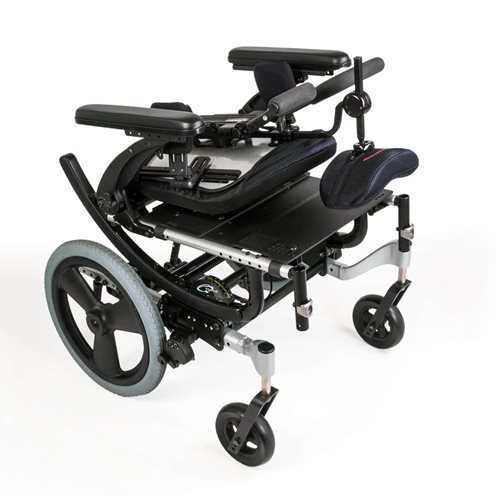

Easy to carry and exceptionally light, the IRIS weighs just 39 lbs., making it one of the lightest options available. The fold-down back enhances portability, and for added convenience during transit, consider the optional Transit feature to equip the IRIS with securement points in both the front and rear.
Vent Tray

Easily attachable either behind the backrest or behind the rear wheels, this accessory ensures convenient and secure mobility for riders relying on respiratory support.
Oxygen Holder

Designed to be hassle-free, this holder ensures secure and accessible mobility for riders relying on oxygen therapy.
IV Pole

Designed for effortless transport of medical IV systems, this holder provides a secure solution for riders requiring intravenous treatments while on the move.

Lauren using her QUICKIE Q50 R Carbon power wheelchair

My son Andrew is 24. He has been diagnosed with multiple disabilities since birth. Andrew uses the QUICKIE IRIS wheelchair to move through life. The IRIS gives Andrew the support, comfort, durability, and safety he needs. One of the features I feel is special about the IRIS is the "tilt in space." I am able to reposition Andrew throughout his day anywhere we are, and especially when he is experiencing a strong seizure. My greatest priorities for Andrew are for his happiness, comfort, and health.

Rachel A., Mom & Caregiver of Andrew

Media

Specifications

Dimensions

Seat Width:14" to 22"

Seat Depth:14" to 22"

Front Seat-to-Floor Height:12.5" to 19.5"

Rear Seat-to-Floor Height:12.5" to 19.5"

Tilt Range:

40°
55°
60°

Back Height:

15" to 21"
18" to 24"

Back Angle Adjustment: -30° to 5°

Camber:0°

Shipping Dimensions:

Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H
Palletized: 47" L x 40" W x 54" H

Product Information

Model Number:EIZ4-2

HCPCS Code:E1161 / E1233

Performance/Weights

Frame Type:Frame Options

Standard
Heavy Duty
Vent/Battery Base Tray
Contrature Seat Frame

Frame Struts:

Fixed
Width Adjustable

Frame Material:Aluminum

Transit:Yes

User Weight Capacity:

Standard: 300 lbs.
Heavy Duty: 400 lbs.

Product Weight:38 lbs.

Average Shipping Weight:

Boxed: 90 lbs. and 15 lbs.
Palletized: 150 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Order Forms

Owners Manuals

Parts Manuals

Other

Frequently Asked Questions

Can the backrest height be adjusted?

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Can I get my wheelchair in different colors?

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
