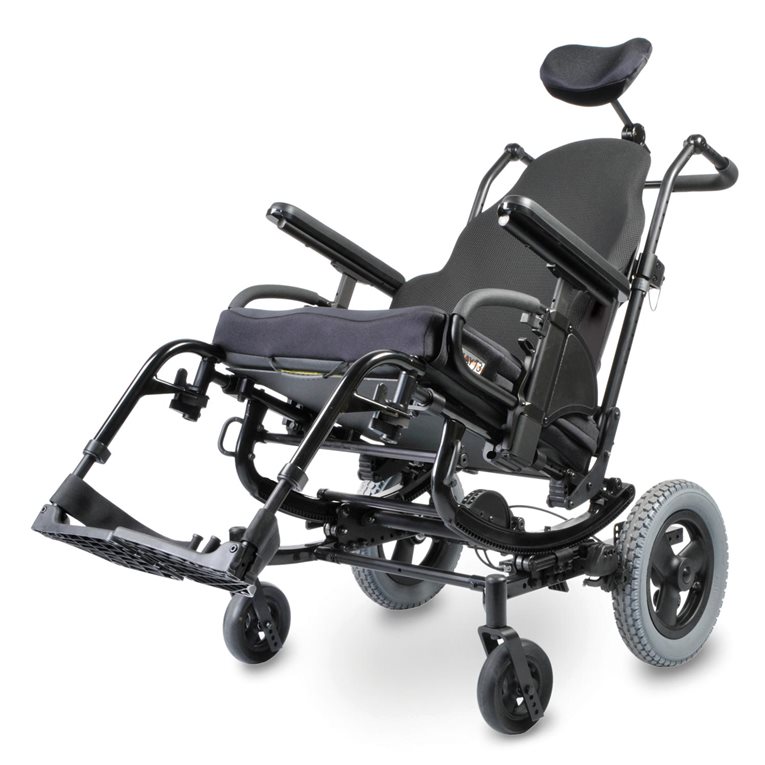

SR45^®Tilt In Space Wheelchair

The simple solution for
rotation-in-space wheelchair technology

The Quickie^® SR45^® tilt-in-space wheelchair features 45° of Intelligent Rotation in Space Technology and a simplified mix of options to provide proper positioning and comfort at an outstanding value.

Find Your Local Dealer

Available colors:

The color options shown are for reference only. They are not intended as accurate representations.

Options and Prices

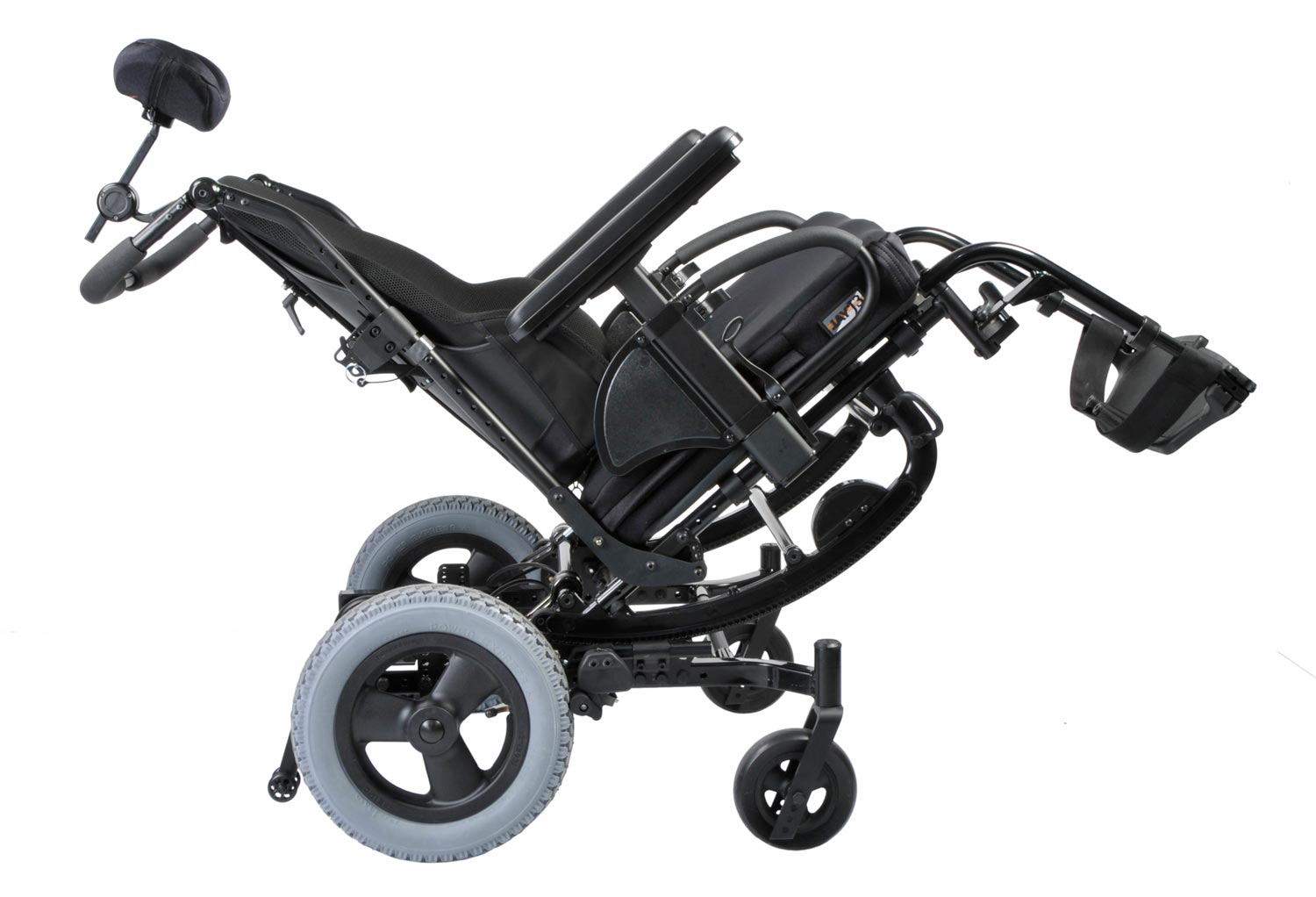

45° of Intelligent Rotation in Space Technology

Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The SR45 features up to 45° of posterior rotation for improved positioning.

Power Tilt

The Power Tilt feature puts the rider in charge of their own comfort all day long. With a simple toggle switch conveniently located on the armrest, the rider can effortlessly adjust their body position for maximum comfort, relaxation, and skin protection. Easy to use and designed to enhance their sitting experience, Power Tilt gives more control to the rider. This feature not only improves comfort, but also helps with sitting tolerance, allowing the rider to participate more independently in daily activities and connect better with the world and those around them. Power Tilt is available for the IRIS, IRIS Heavy Duty, and the SR45 models.

Attendant Control

Though the QUICKIE IRIS is effortless to tilt, with the Attendant Control, caregivers can tilt the rider without any manual effort. The control panel, displaying the battery gauge on top, eliminates the guesswork for charging time. Attendant Control is versatile and can be hung anywhere on the chair.

Toggle Switch

The Toggle Switch provides flexibility by being mountable either vertically or horizontally, catering to the rider's preferences for easy reach. Conveniently placed on the toggle switch, the charging port ensures easy access. The Power Tilt feature is also available as a retrofit kit for added convenience.

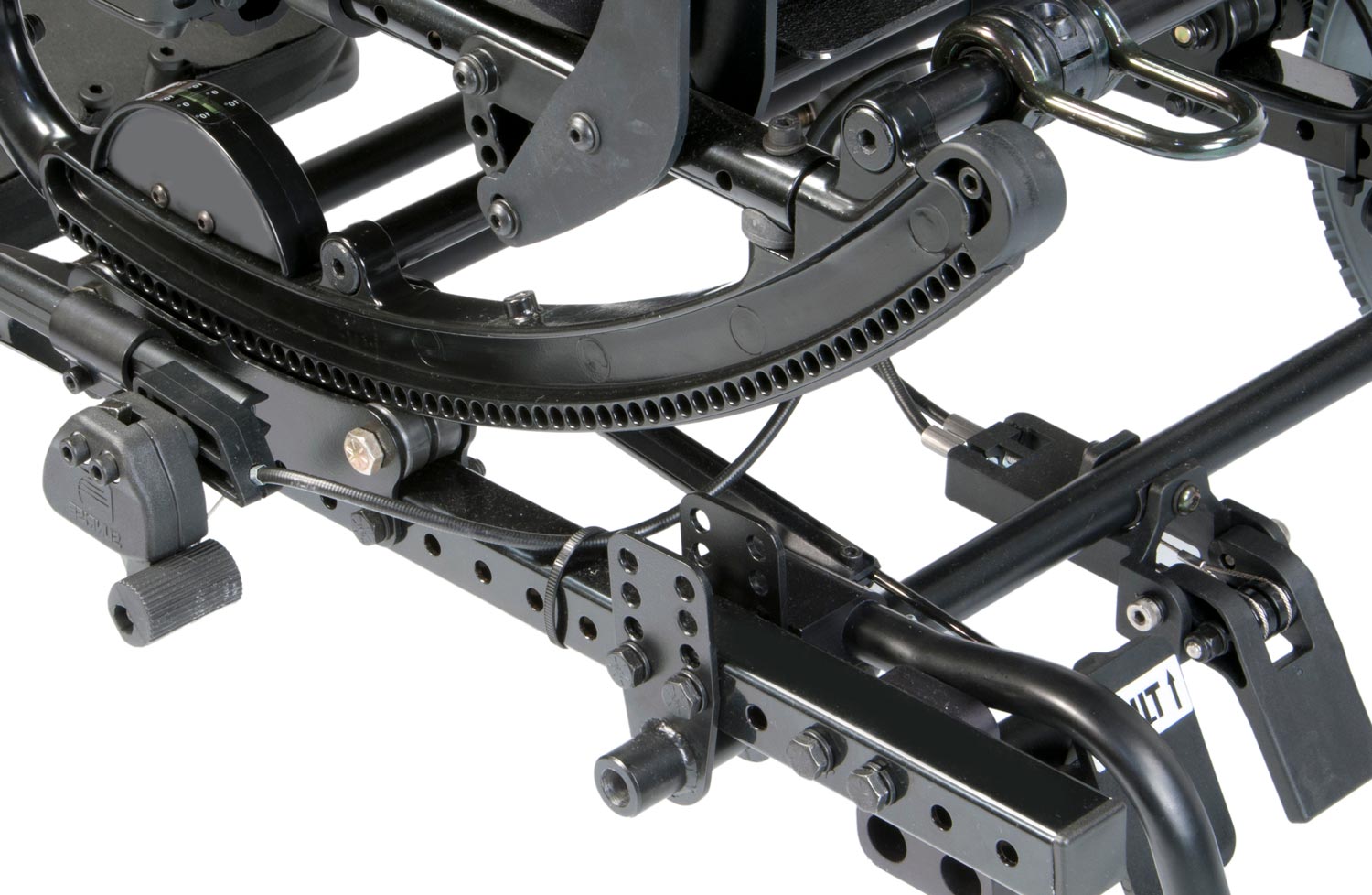

Durable Frame

The SR45 manual wheelchair is built to withstand heavy use over time. Having undergone rigorous durability testing at its 265 lb. weight capacity, you can be confident that the SR45 will last.

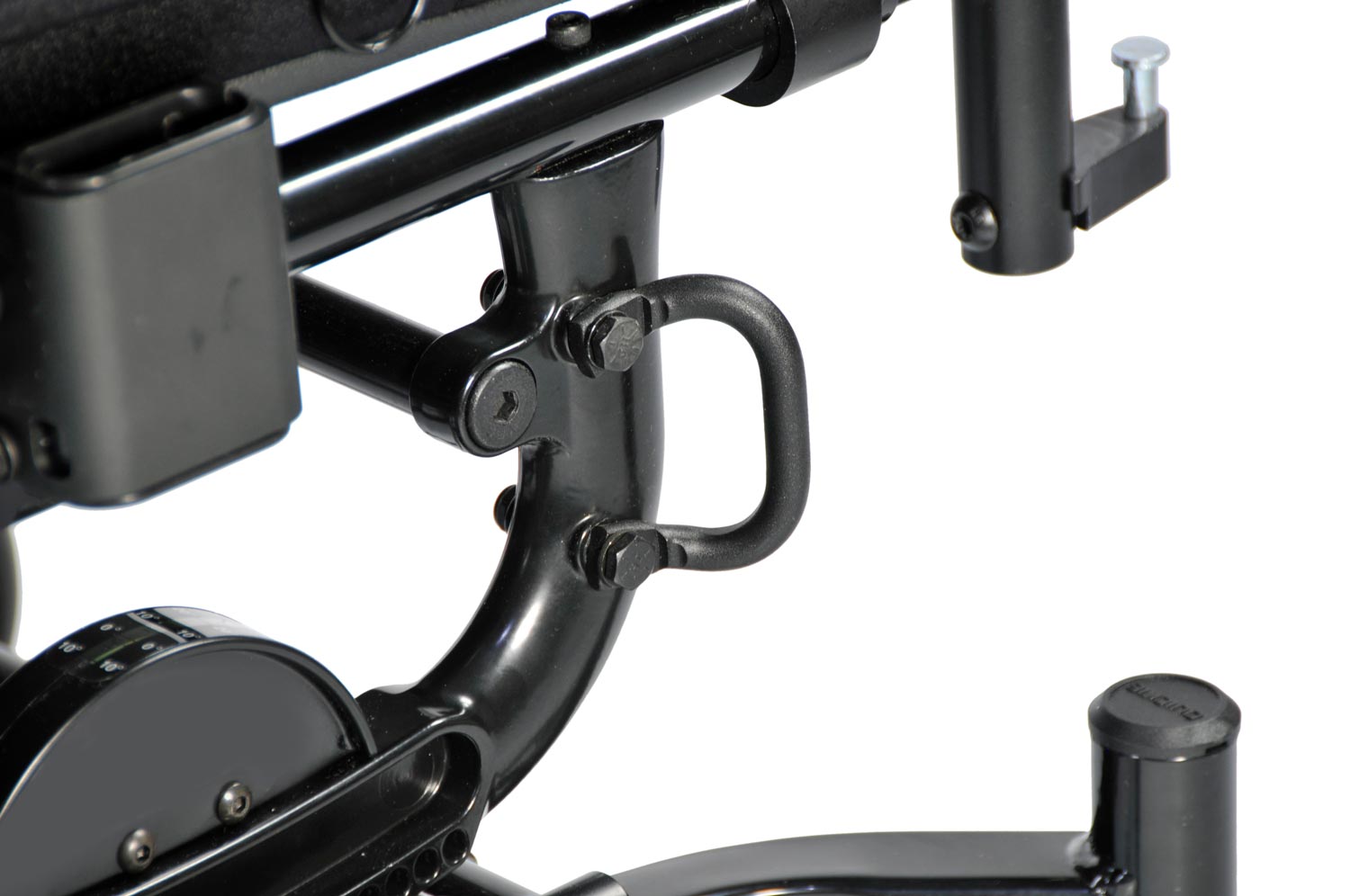

Quickie's Top Options

The SR45 is available with Quickie's most popular options and accessories for convenience and a comfortable fit, including a wide range of seat widths, seat depths, armrests, wheels, tires, transit brackets and the foot-release tilt actuator.

Media

Specifications

Dimensions

Seat Width:14" to 20"

Seat Depth:14" to 22"

Front Seat-to-Floor Height:14" to 20.5"

Rear Seat-to-Floor Height:14" to 20.5"

Tilt Range:45°

Back Height:

15" to 21"
18" to 24"

Back Angle Adjustment: -30° to 5°

Lower Leg Length Setting:9.9" to 18.7"

Camber:0°

Shipping Dimensions:

Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H
Palletized: 47" L x 40" W x 54" H

Product Information

Model Number:EIZ9

HCPCS Code:E1161

Performance/Weights

Frame Type:Standard

Frame Material:Steel

Transit:Yes

User Weight Capacity:265 lbs.

Product Weight:39 lbs.

Average Shipping Weight:

Boxed: 90 lbs. and 15 lbs.
Palletized: 150 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Order Forms

Owners Manuals

Parts Manuals

Quickie® SR45™ Parts Manual

Other

Frequently Asked Questions

Can the backrest height be adjusted?

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Can I get my wheelchair in different colors?

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
