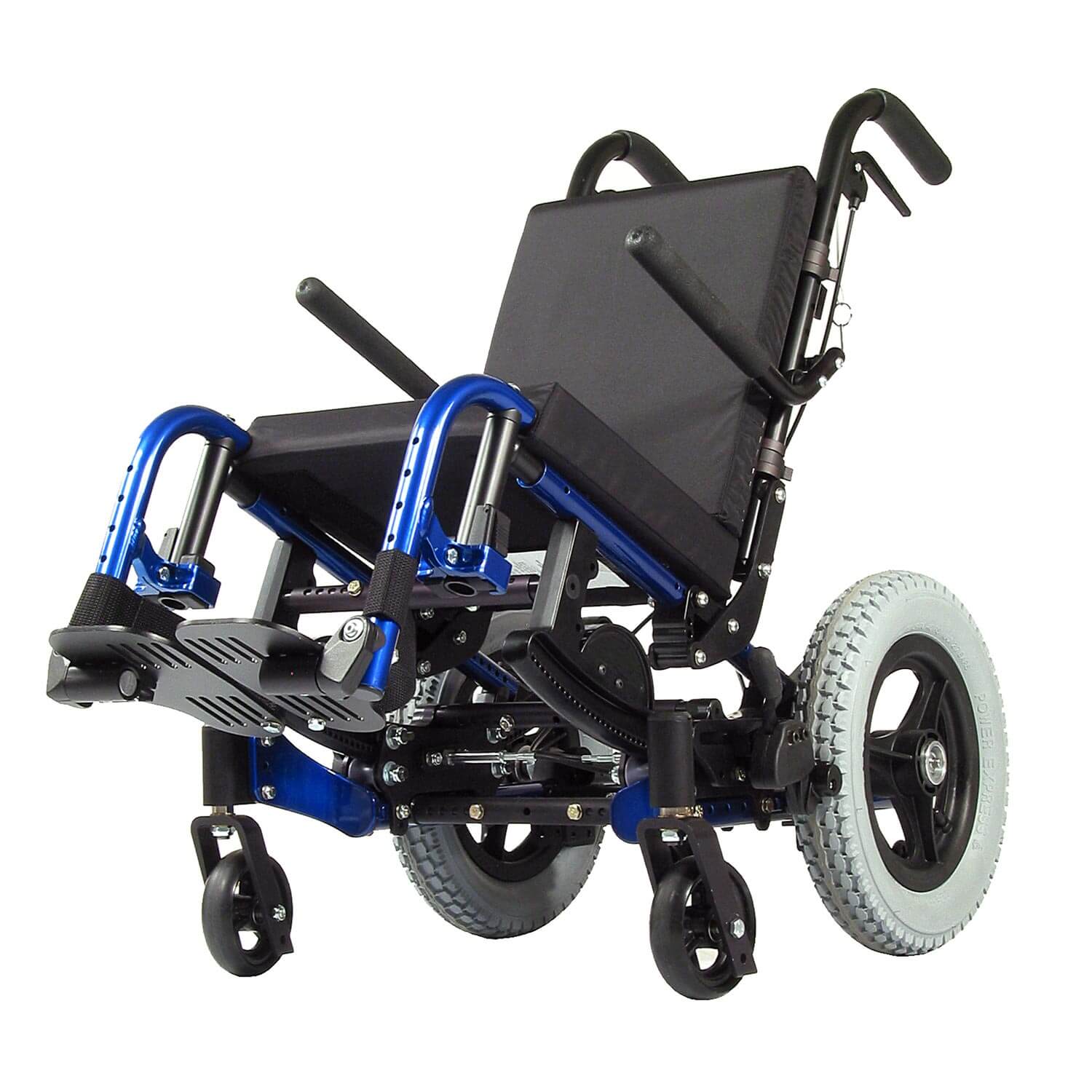

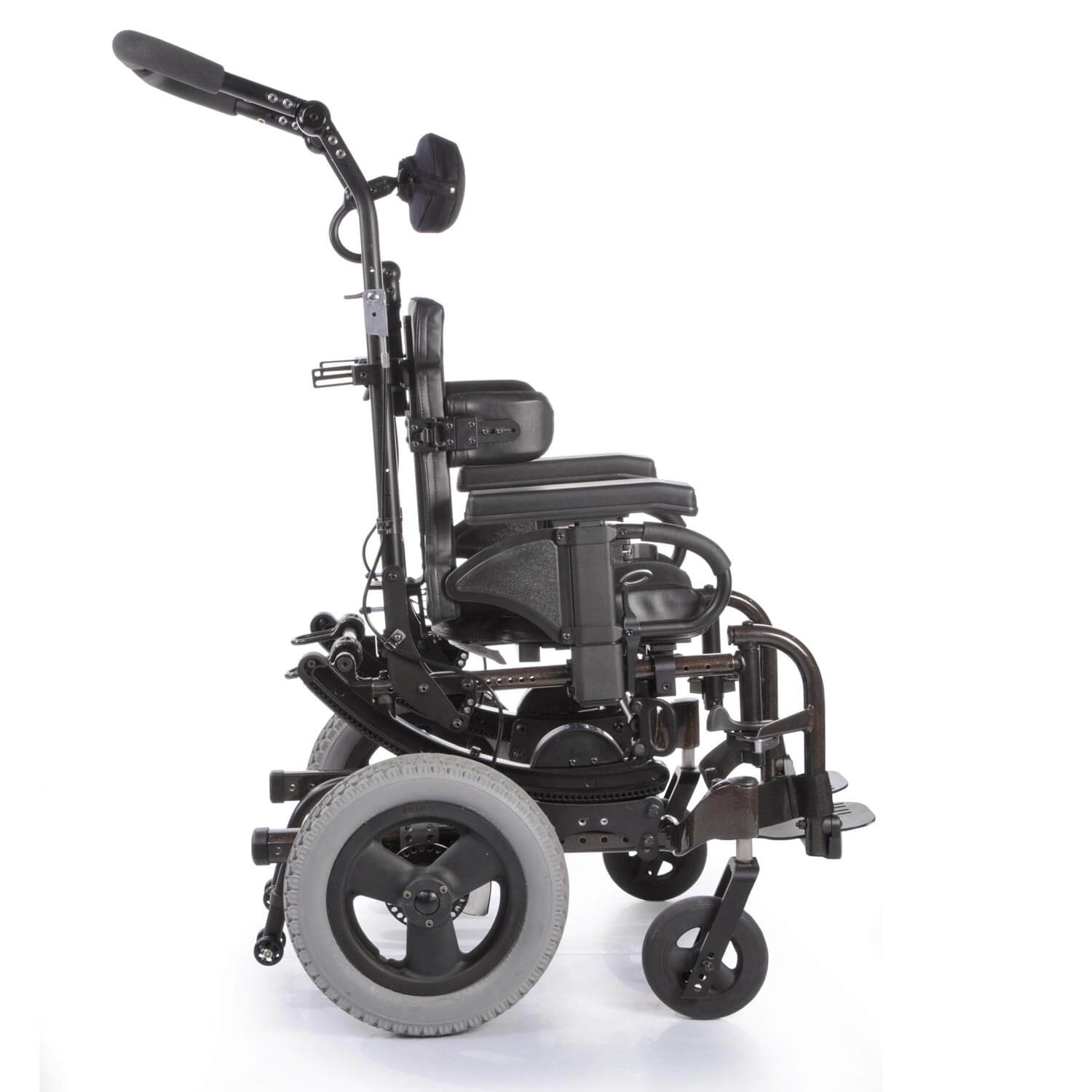

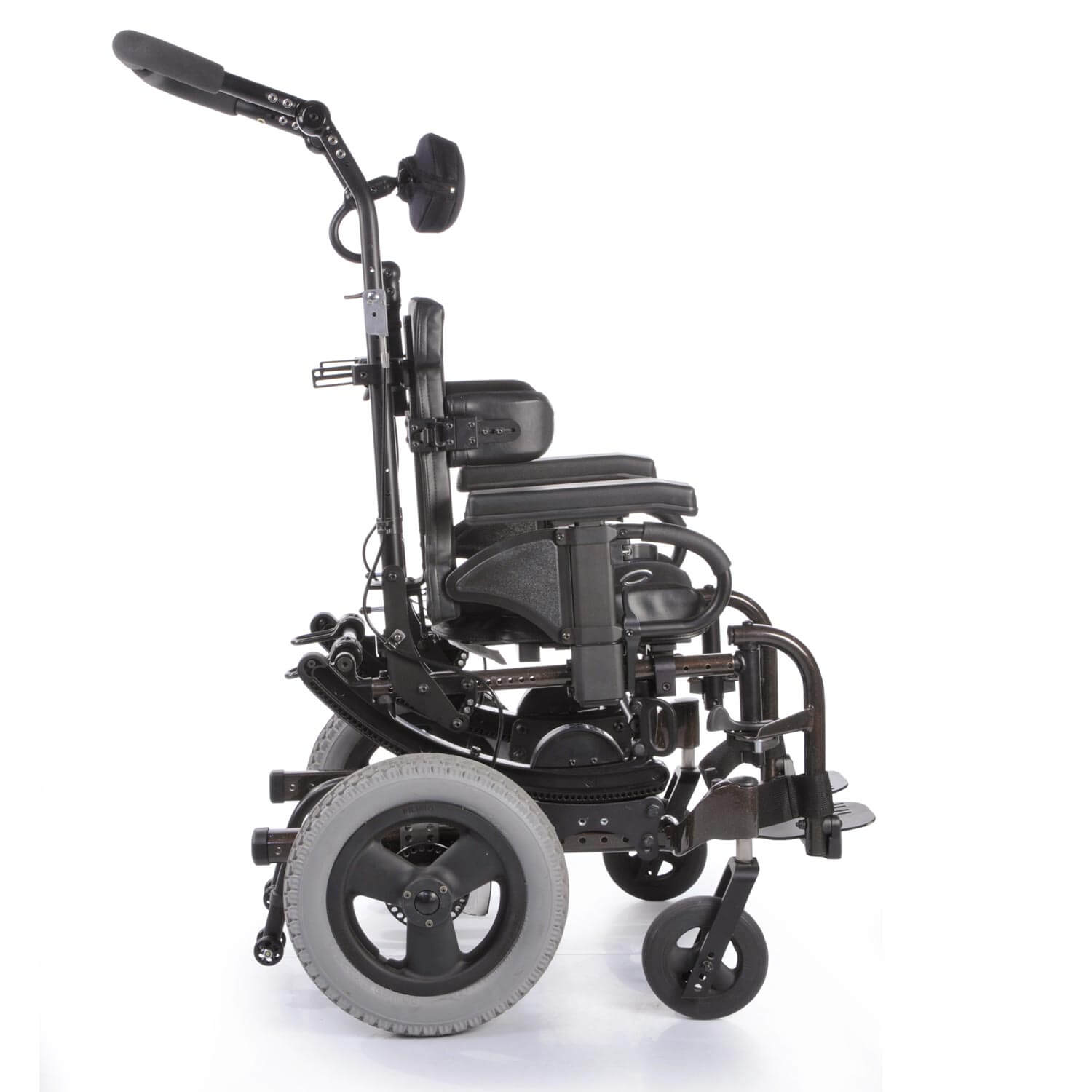

ZIPPIE^® IRIS^®Tilt In Space Wheelchair

Cutting-edge rotation-in-space wheelchair technology designed just for kids

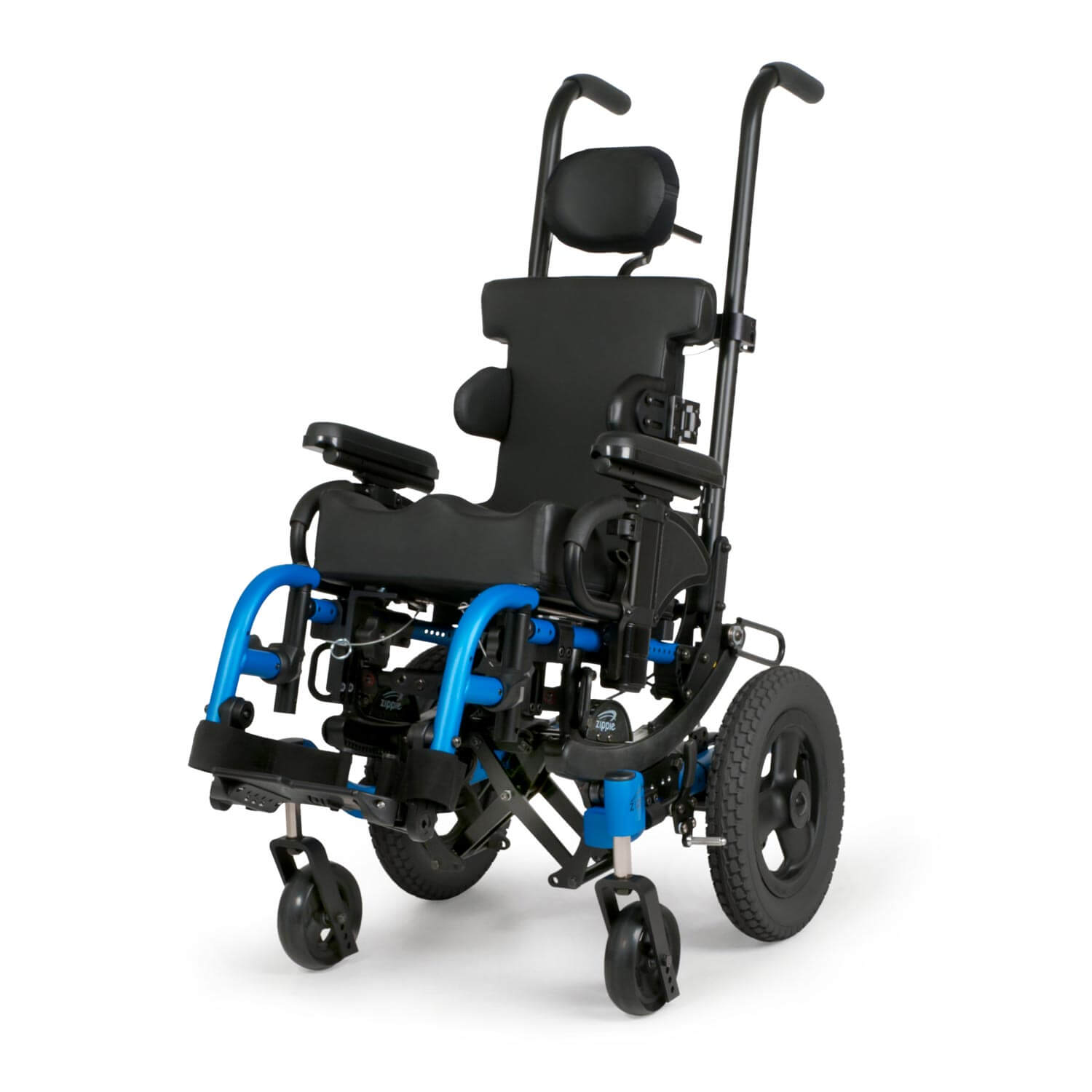

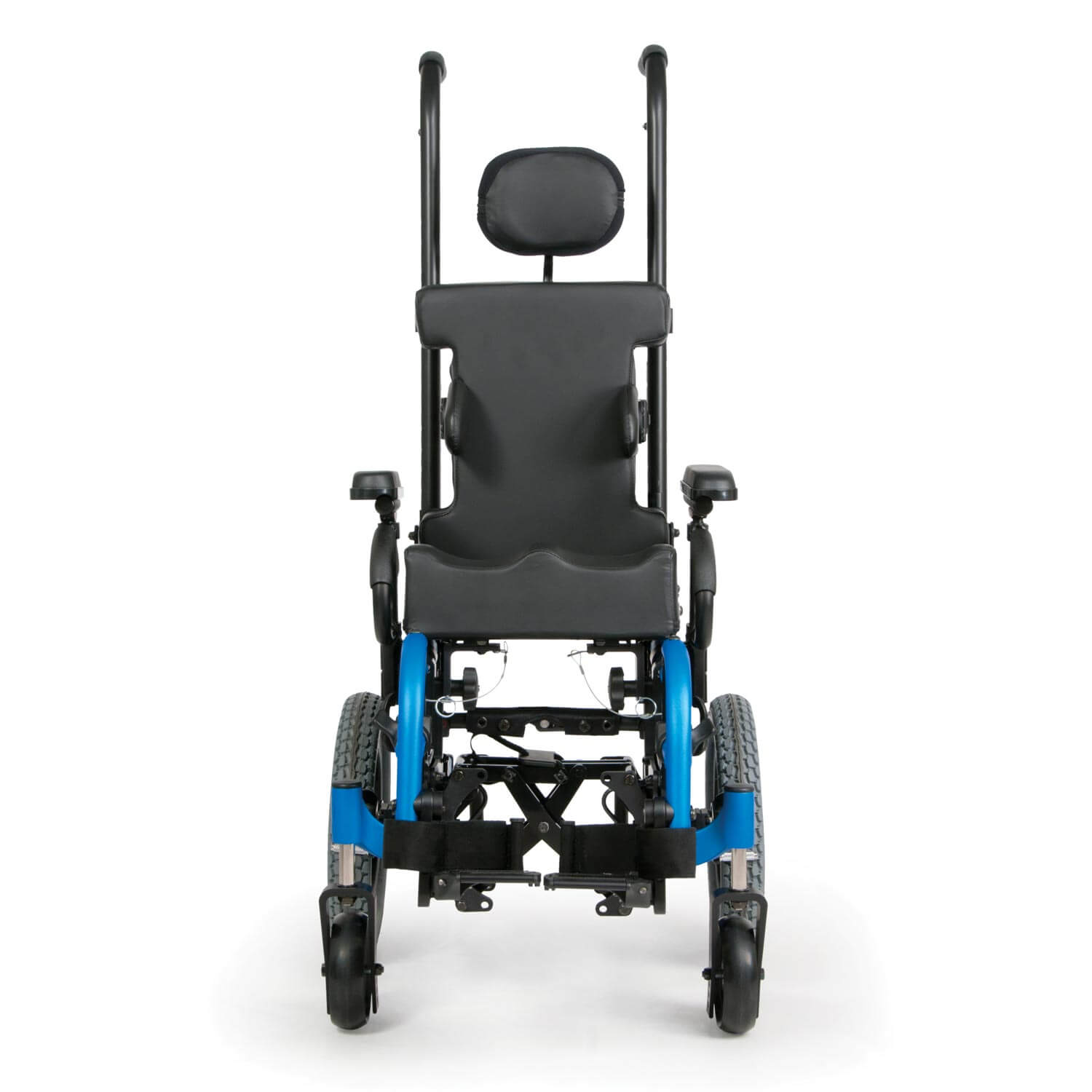

The Zippie IRIS^® rotation-in-space wheelchair offers a superior combination of positioning, maneuverability, and increased portability with the XLOCK^® folding crossbrace option.

Find Your Local Dealer

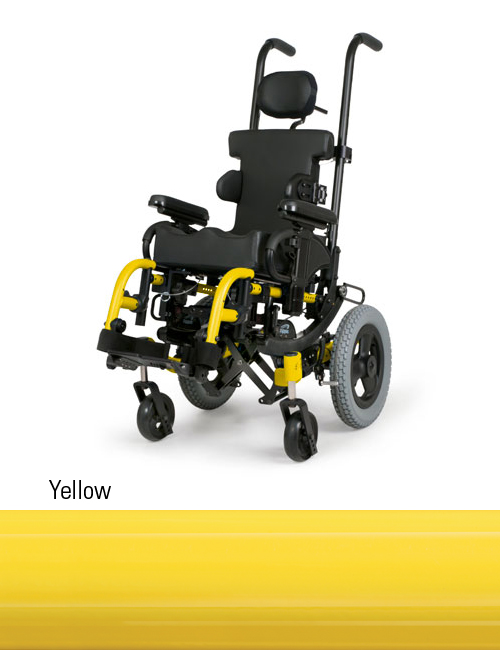

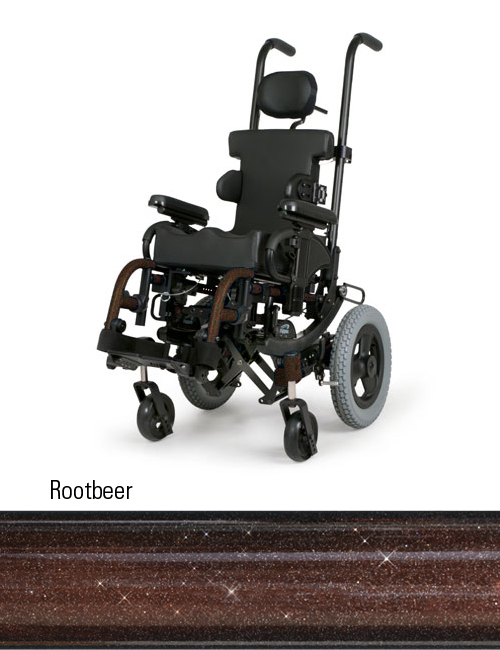

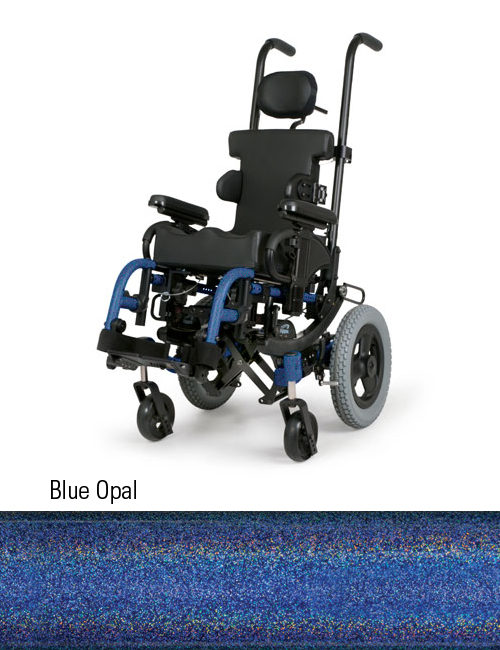

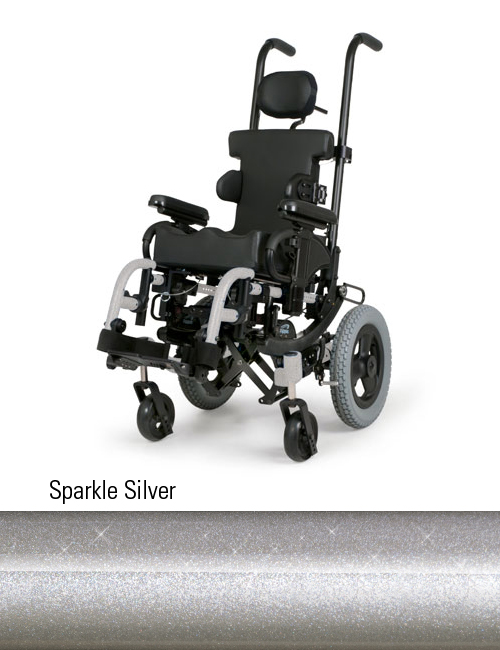

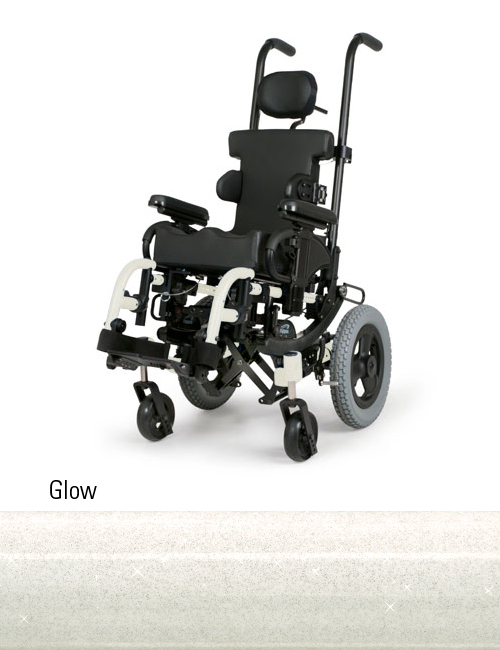

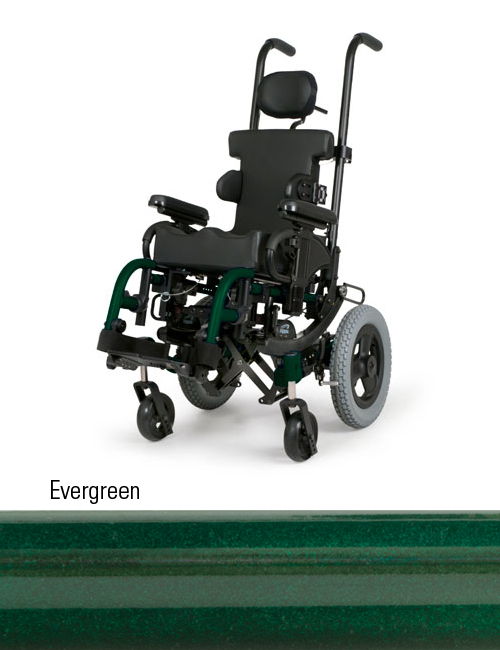

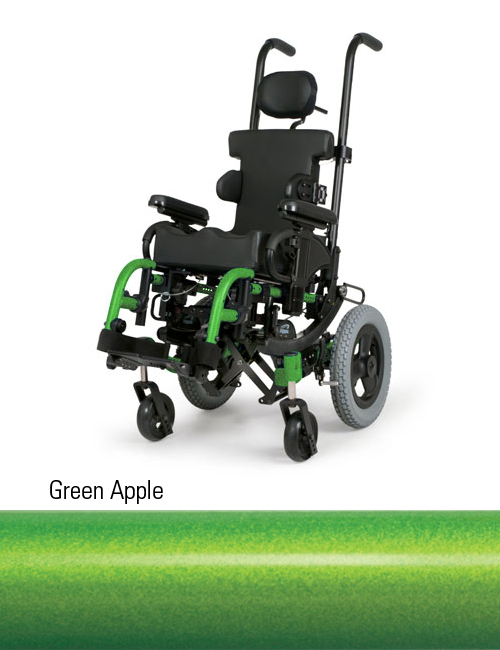

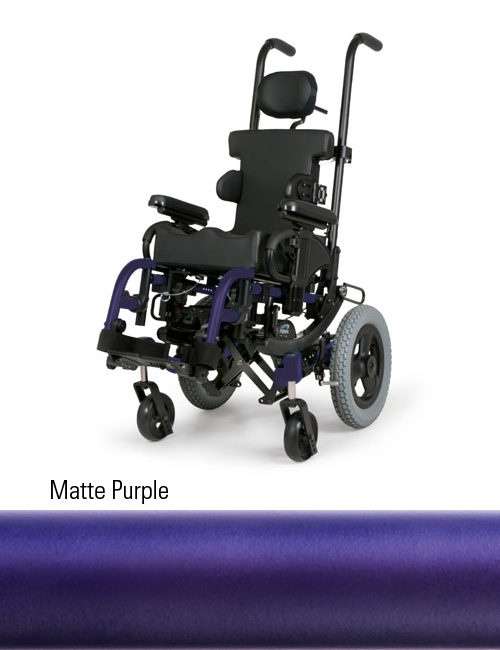

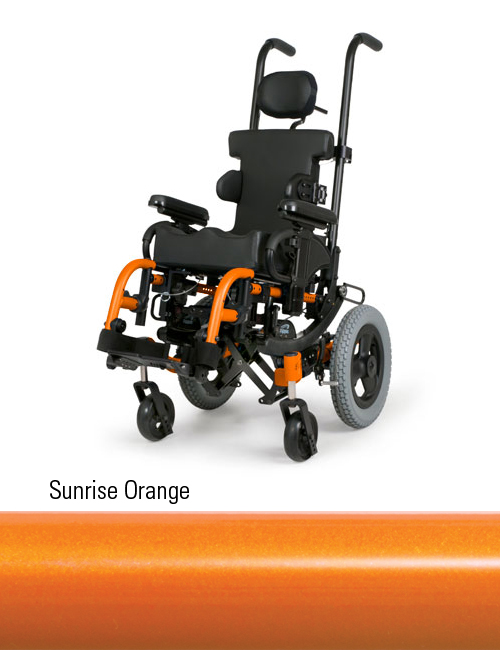

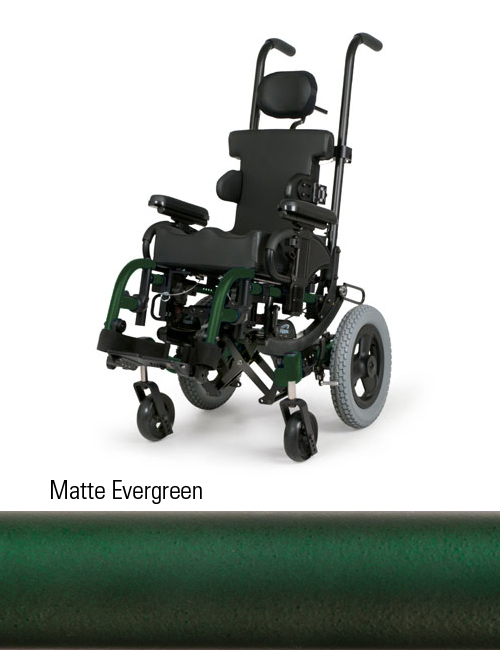

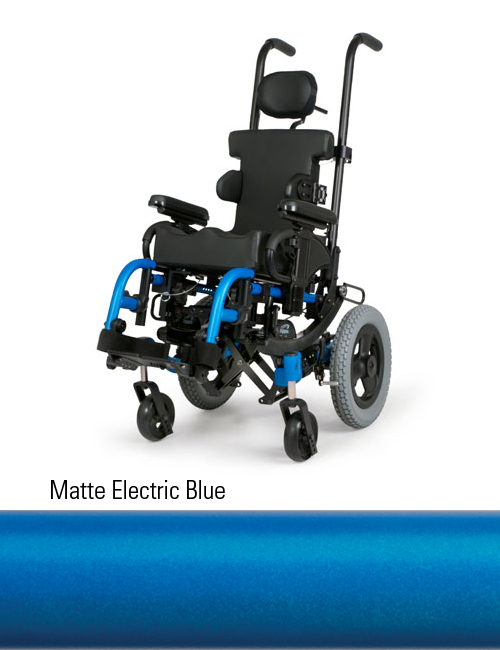

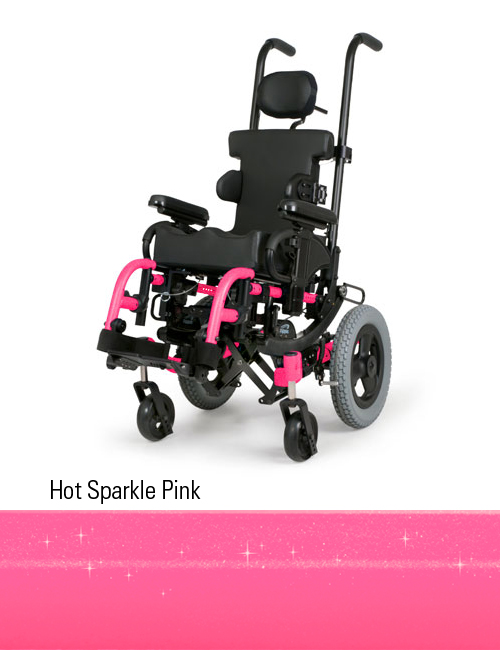

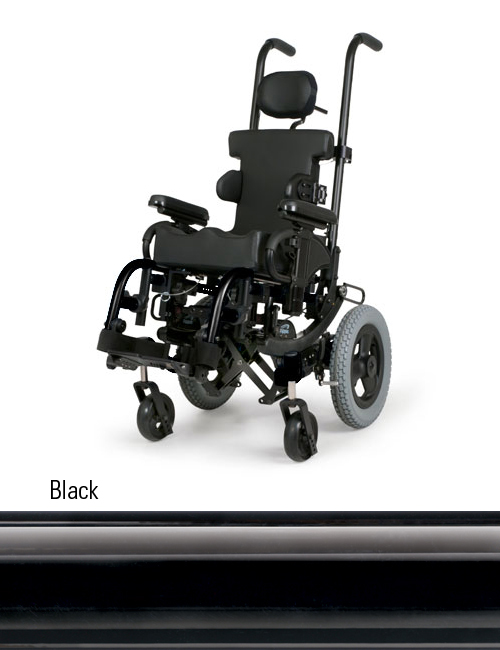

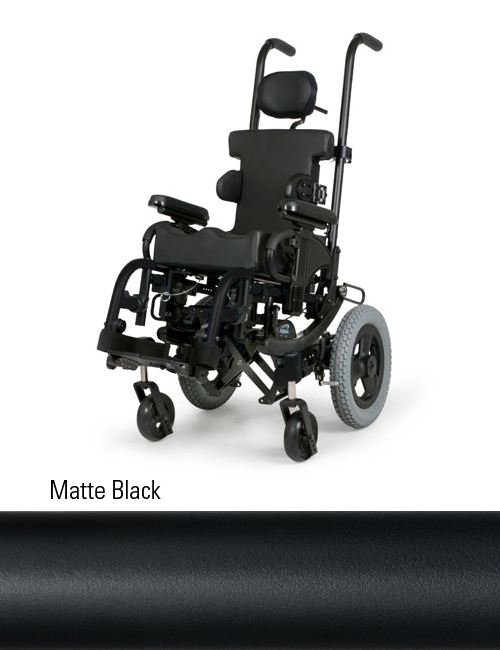

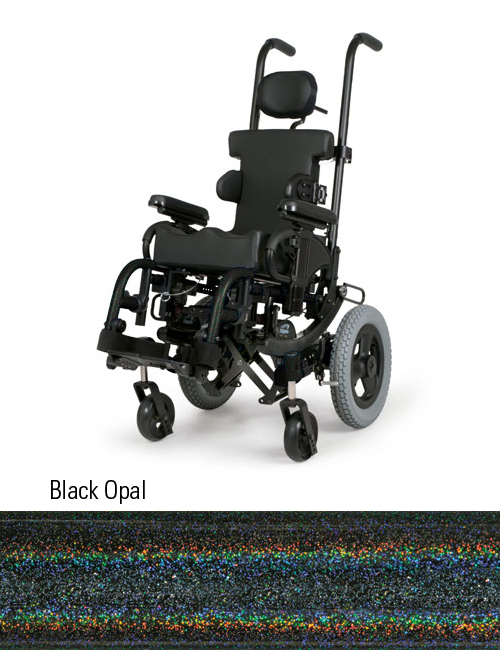

Available colors:

The color options shown are for reference only. They are not intended as accurate representations.

Options and Prices

ZIPPIE IRIS Kids Tilt-in-Space Wheelchair

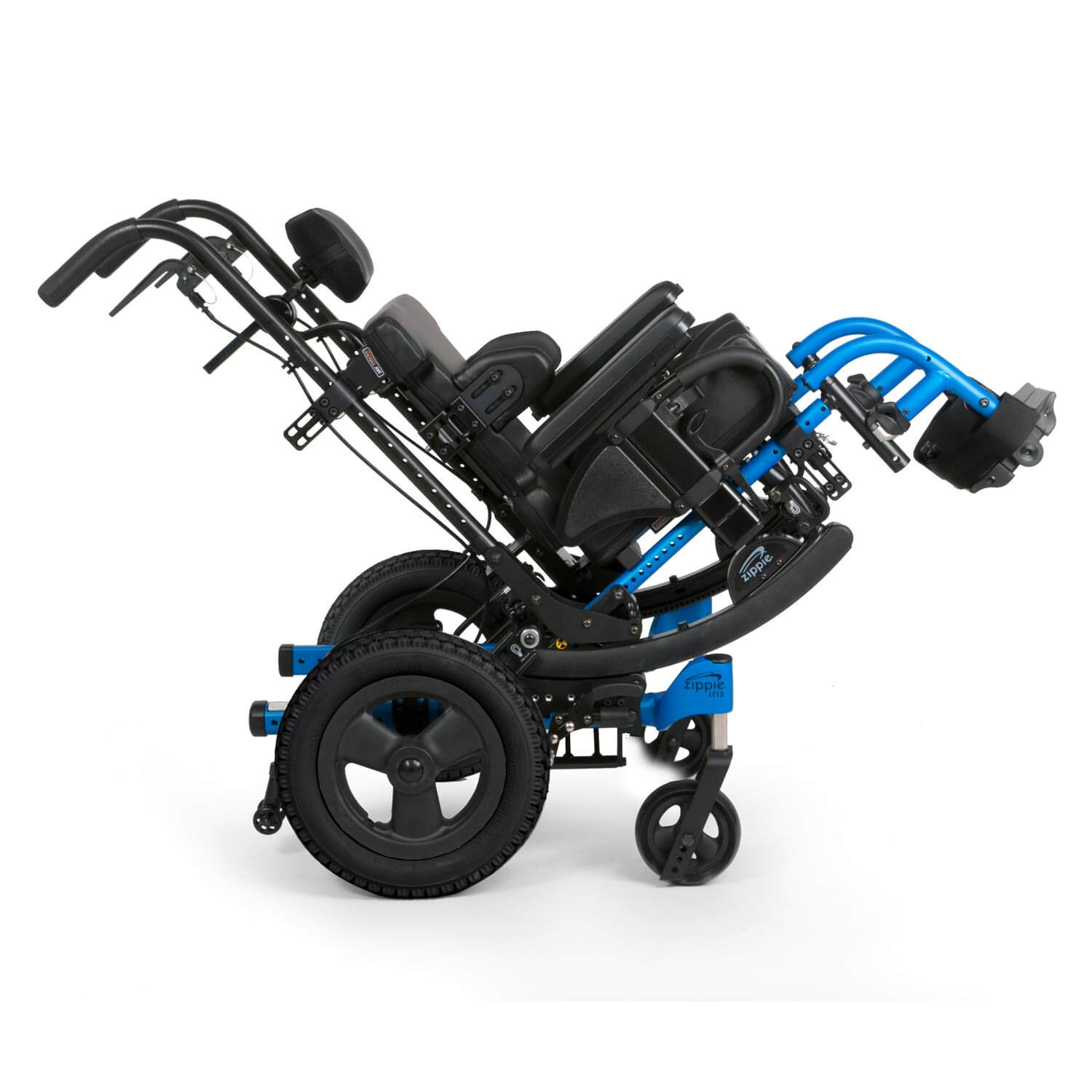

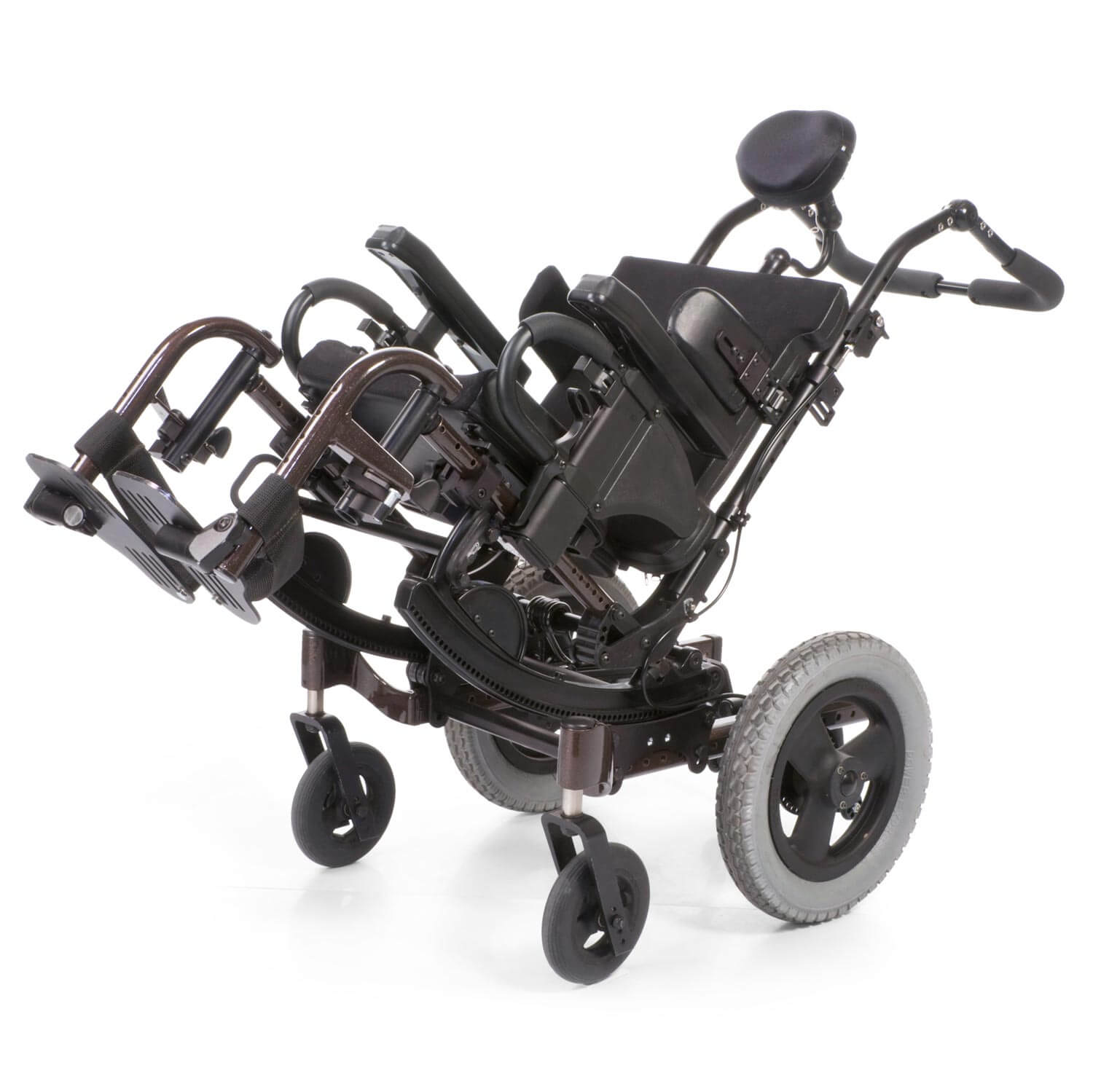

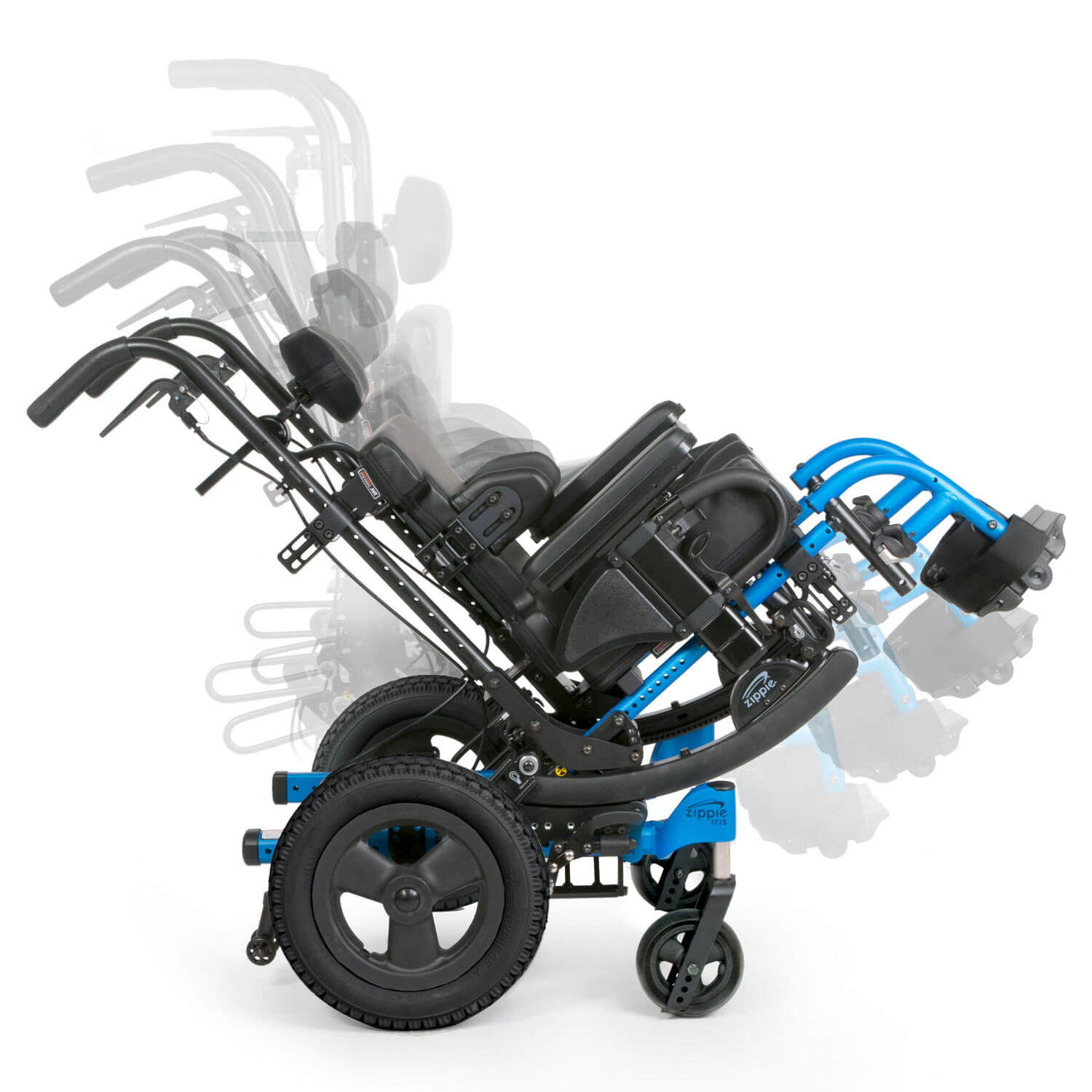

40° or 55° of Intelligent Rotation in Space Technology

With patented Intelligent Rotation in Space technology, the IRIS seat frame rotates around the child's center of gravity. The rotation arm was designed specifically for pediatric users to ensure a smooth tilting motion. It also helps children remain comfortable and secure while tilting, and it is easy for parents and caregivers to control.

Available with 40° or 55° rotation ranges that can be set to achieve up to 45° or 60° of posterior rotation, the IRIS offers superior positioning capabilities.

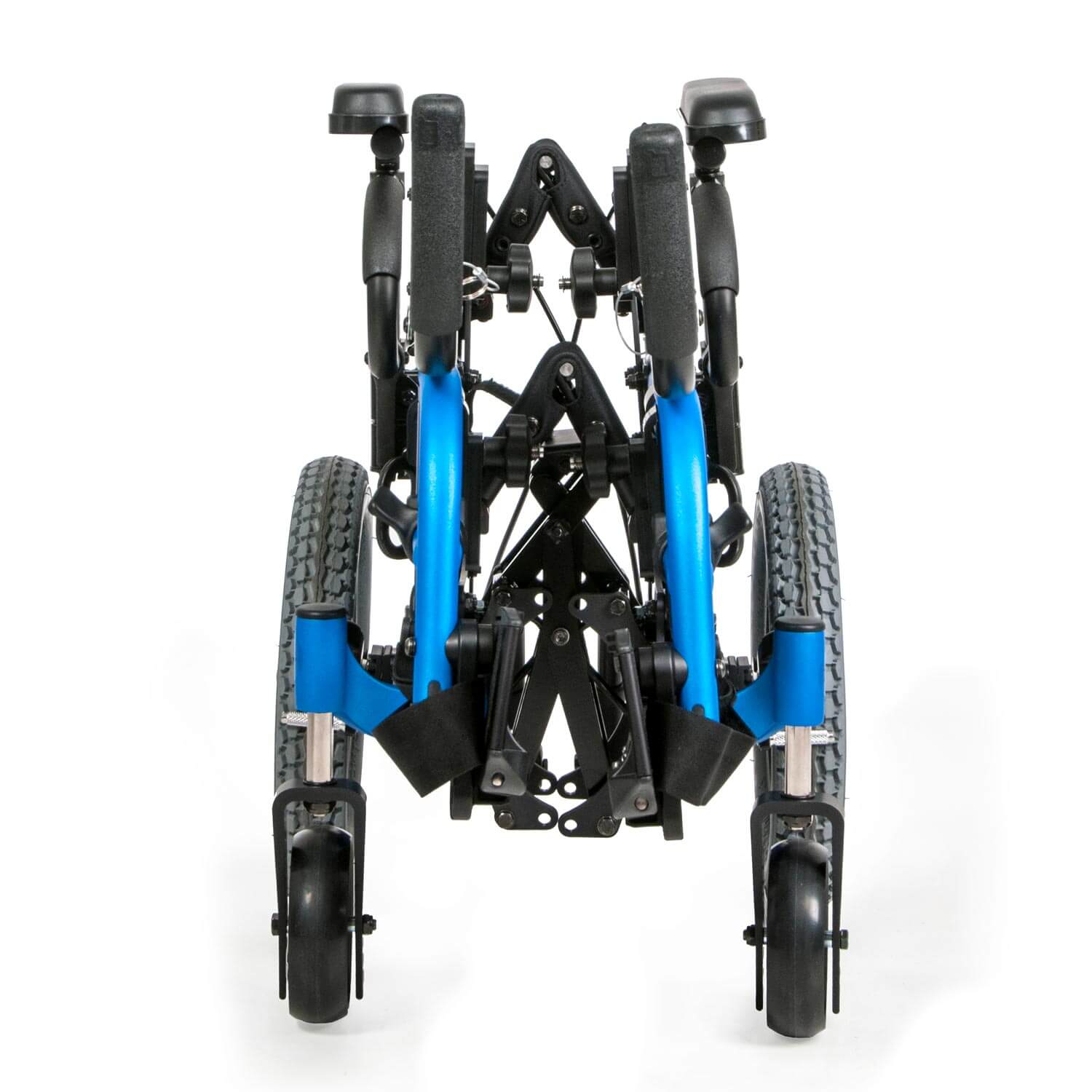

Optional XLOCK<sup>®</sup> Folding Crossbrace

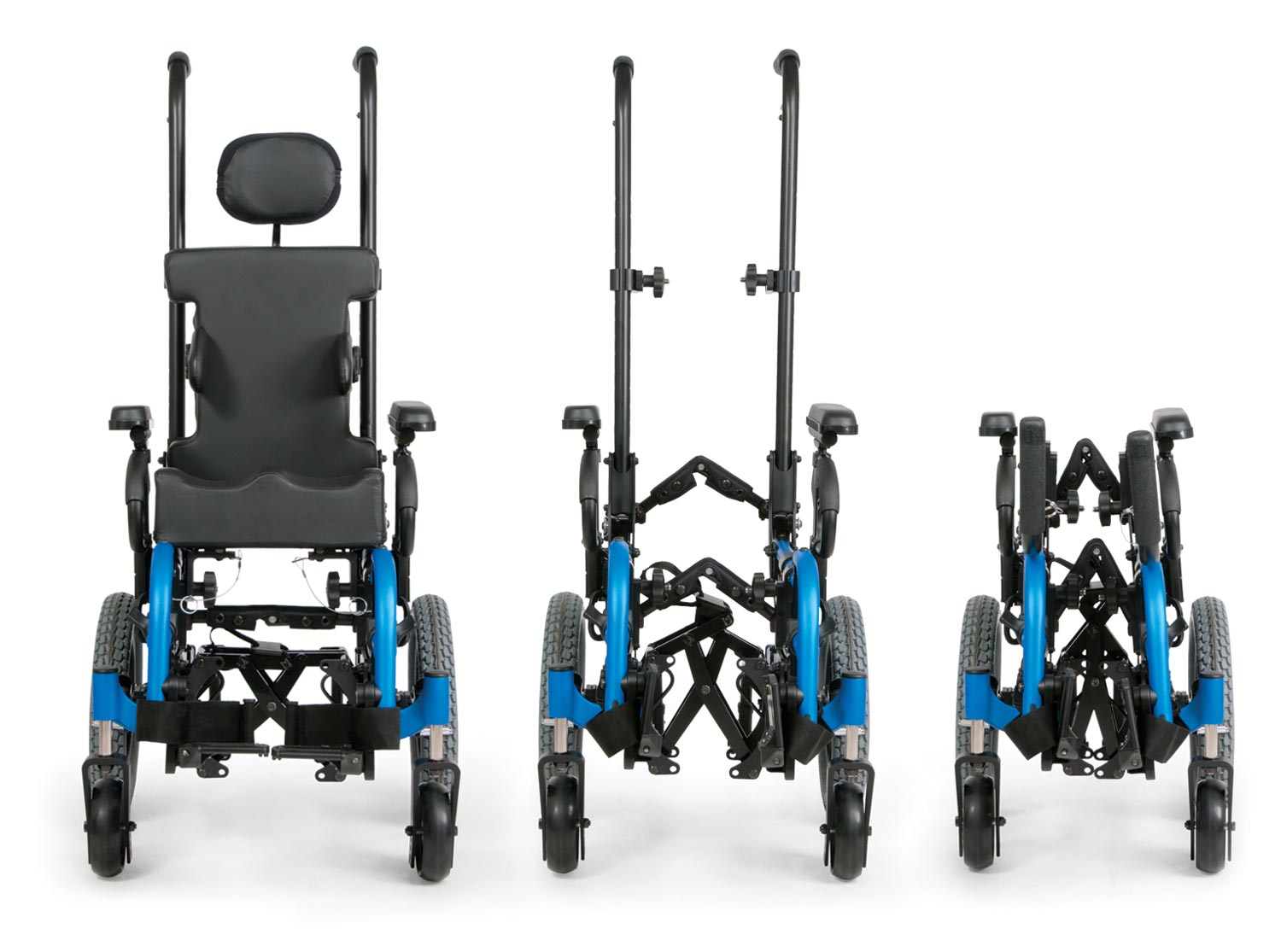

Optional XLOCK^® Folding Crossbrace

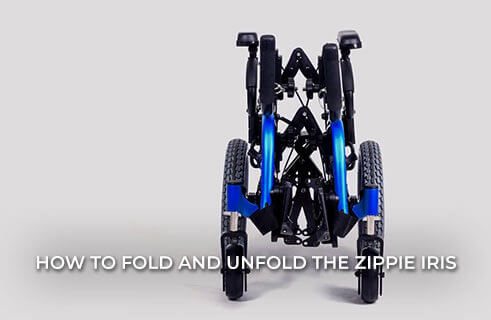

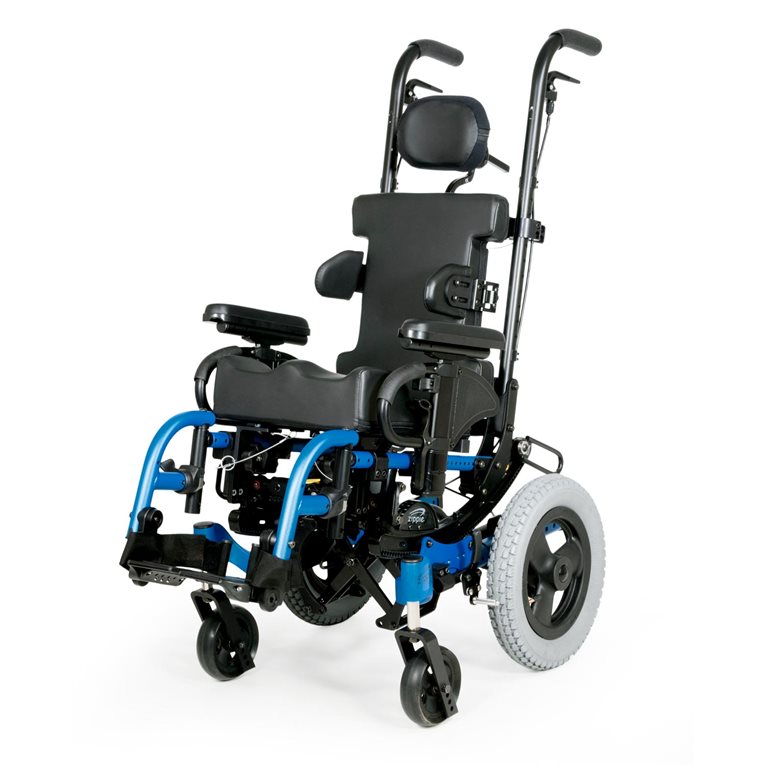

The Zippie IRIS now offers the benefits of both rotation-in-space technology and an optional folding frame. Its patented XLOCK folding crossbrace fully locks when unfolded for superior rigidity, and folds into a compact size for convenient transport.

Accessories for Caregiver Convenience

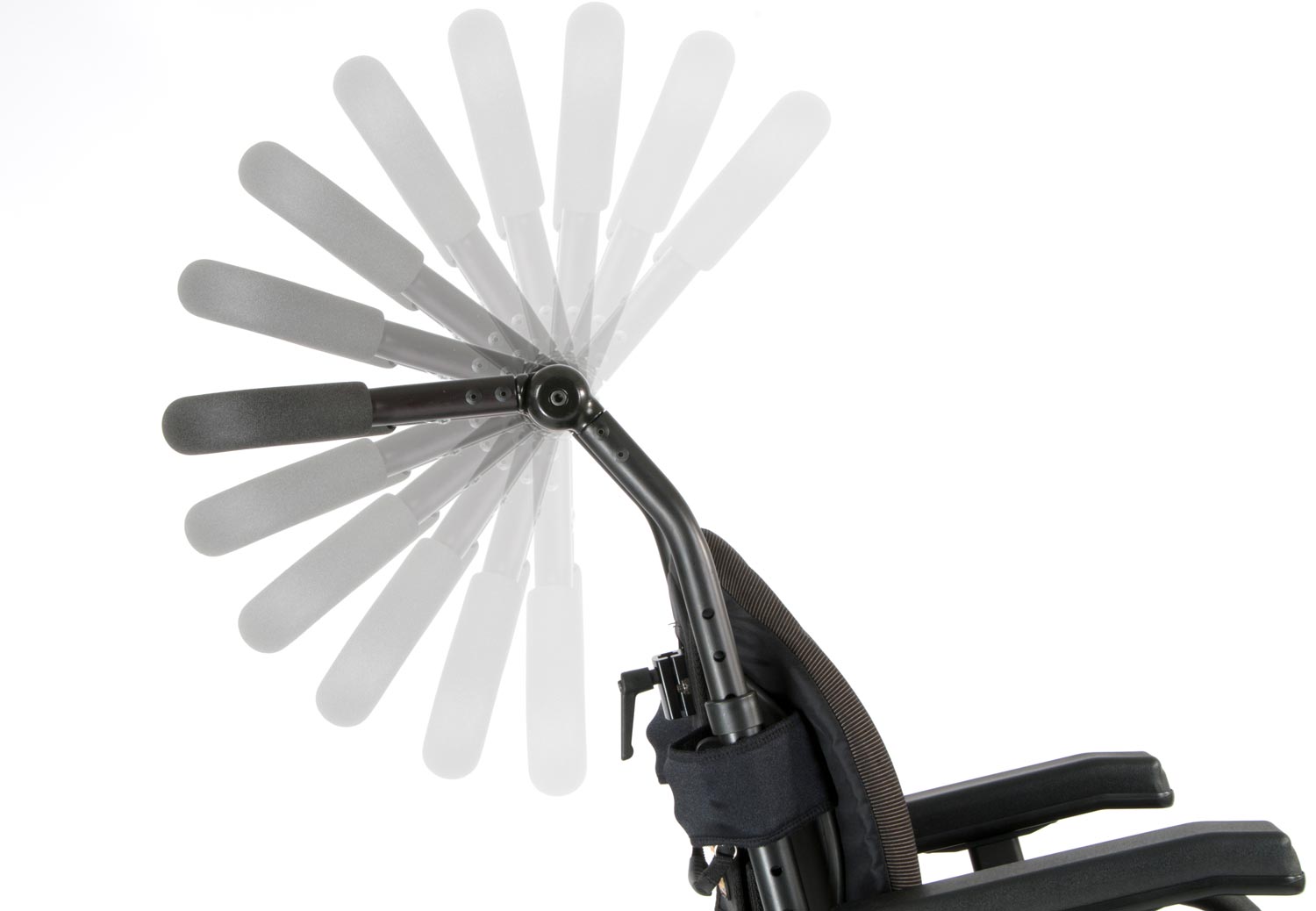

The IRIS is available with a wide variety of options to help you manage daily activities involving your child's care. The Foot Release Tilt Actuator eliminates exposed cables. Push-button hub locks located on the back canes are compact, easy to access, and easy to operate for any caregiver. Standard with the Height Adjustable backrest, the Angle Adjustable Stroller Handle has 260° of angle adjustability to fit varying caregiver heights and to enable pushing from a tilted position.

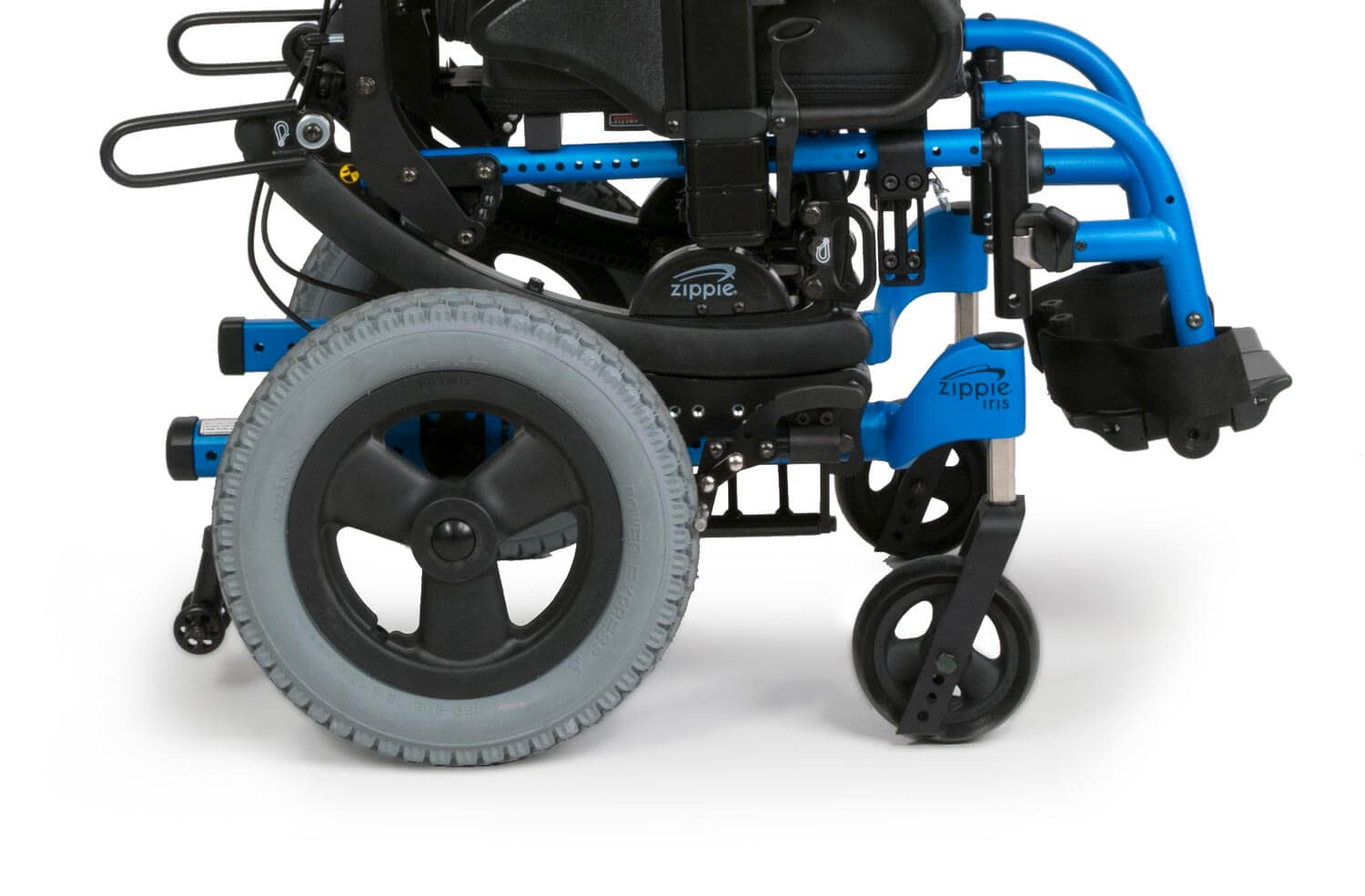

Growth Capabilities

The IRIS is designed to maintain proper support for your child as they grow. The folding frame option offers up to 4" of built-in depth growth and 2" of built-in width growth. The rigid frame option is available with width-adjustable strut tubes.

Additionally, through the True Fit Growth program, the original Zippie IRIS owner qualifies for one free growth kit within 5 years. The growth kit includes all parts and components needed to adjust the seat width/depth of the chair. (Not available with the Zippie IRIS SE models.)

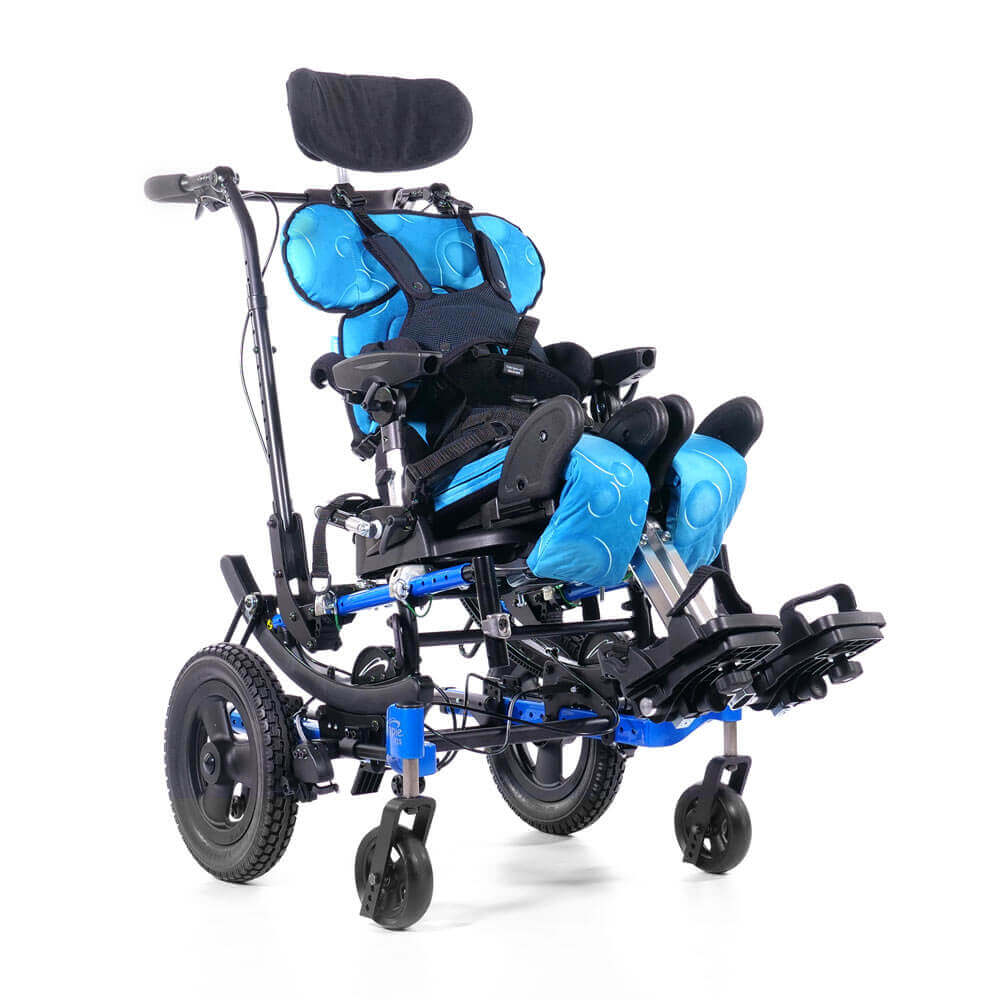

ZIPPIE IRIS with Leckey Seating

Sunrise Medical's Leckey product offering has something for everyone when it comes to your pediatric equipment needs. For us, "supporting children" means working together with our family of experts, designers, therapists, parents, and the broader clinical community to let children reach their goals. Our approach is simple: lead through innovation and clinical focus. Combined with the already extensive ZIPPIE mobility solutions, Sunrise Medical provides a truly complete pediatric offering with this new innovative Leckey interface.

Media

Specifications

Dimensions

Product Width:17.5" to 25.5"

Seat Width:

Rigid: 10" to 18"
Folding: 10" to 16" (grows to 18")

Seat Depth:10" to 18"

Front Seat-to-Floor Height:13" to 19"

Rear Seat-to-Floor Height:13" to 19"

Tilt Range:

40°
55°

Back Height:Fixed

Adjustable

16" to 22"
19" to 25"

Reclining

MONO Backrest System^®

18.7"
21.7"

Back Angle Adjustment:Fore (-) 5° to Aft (+) 30°

Center of Gravity (COG) Adjustment:6"

Shipping Dimensions:36" L x 37" H x 28" W and
20" L x 20" H x 10" W

Product Information

Model Number:EIZ5A

HCPCS Code:

Rigid: E1233
Folding: E1234

Performance/Weights

Frame Type:Tilt (Rigid or Folding)

Frame Material:Aluminum

Transit:Yes

User Weight Capacity:225 lbs.

WARNING: Addition of the Z-Finity^™ System footrest to this device limits the maximum allowable user weight to 165 lbs. (75 kg).

Product Weight:Rigid

Standard Weight: 32 lbs
Transport Weight*: 22.8 lbs

Folding

Standard Weight: 35.8 lbs
Transport Weight*: 26.6 lbs

*excludes footrests, rear wheels, seat pan, armrests, and transit

Average Shipping Weight:90 lbs. and 15 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Order Forms

Owners Manuals

Parts Manuals

Other

Frequently Asked Questions

Can the backrest height be adjusted?

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.

Can I get my wheelchair in different colors?

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.
