VersaGuide EZ

Light-touch compact proportional control

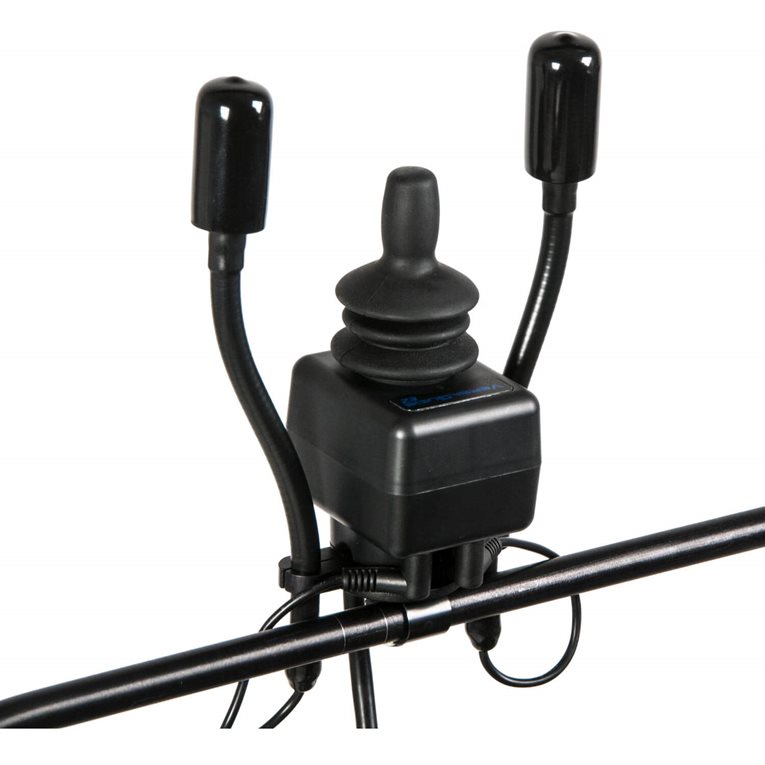

The VersaGuide EZ is a fully proportional and durable compact joystick that can be mounted virtually anywhere. Its unlimited mounting options are what give the versatile VersaGuide EZ its name. The VersaGuide EZ provides for proportional control (forward, reverse, left, and right). The VersaGuide EZ provides two built-in connections for mode and on/off on the underside of the joystick. Unique to the VersaGuide EZ is the SmartJack sensor input which will automatically adapt to both proximity and mechanical switches.

Find Your Local Dealer Please call 1-800-333-4000 to order this product Options and Prices

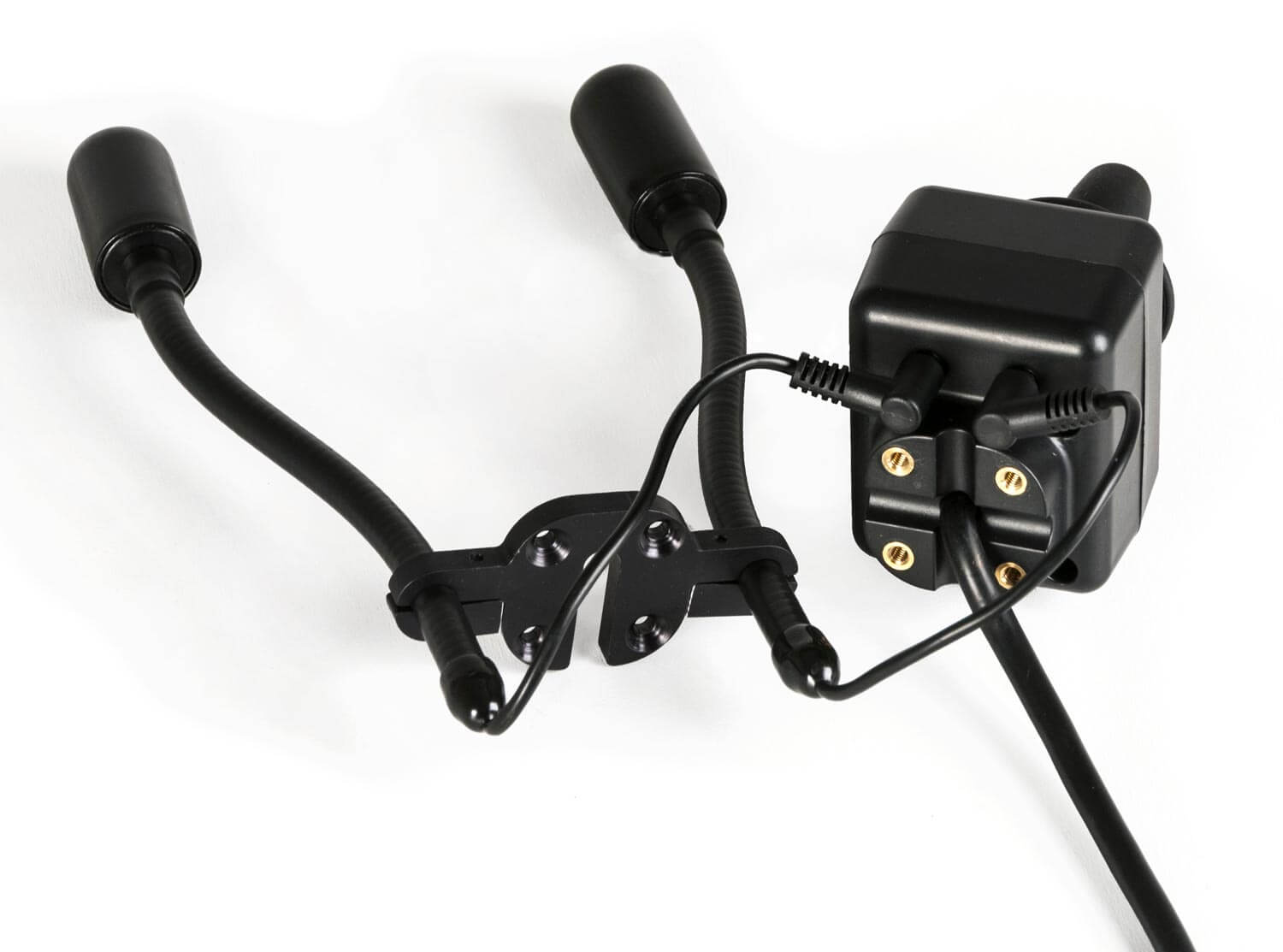

Flex Switches

Zero-touch proximity sensors mounted in a flexible gooseneck are available for use with the VersaGuide EZ and plug directly into the SmartJacks located on the underside of the VersaGuide EZ.

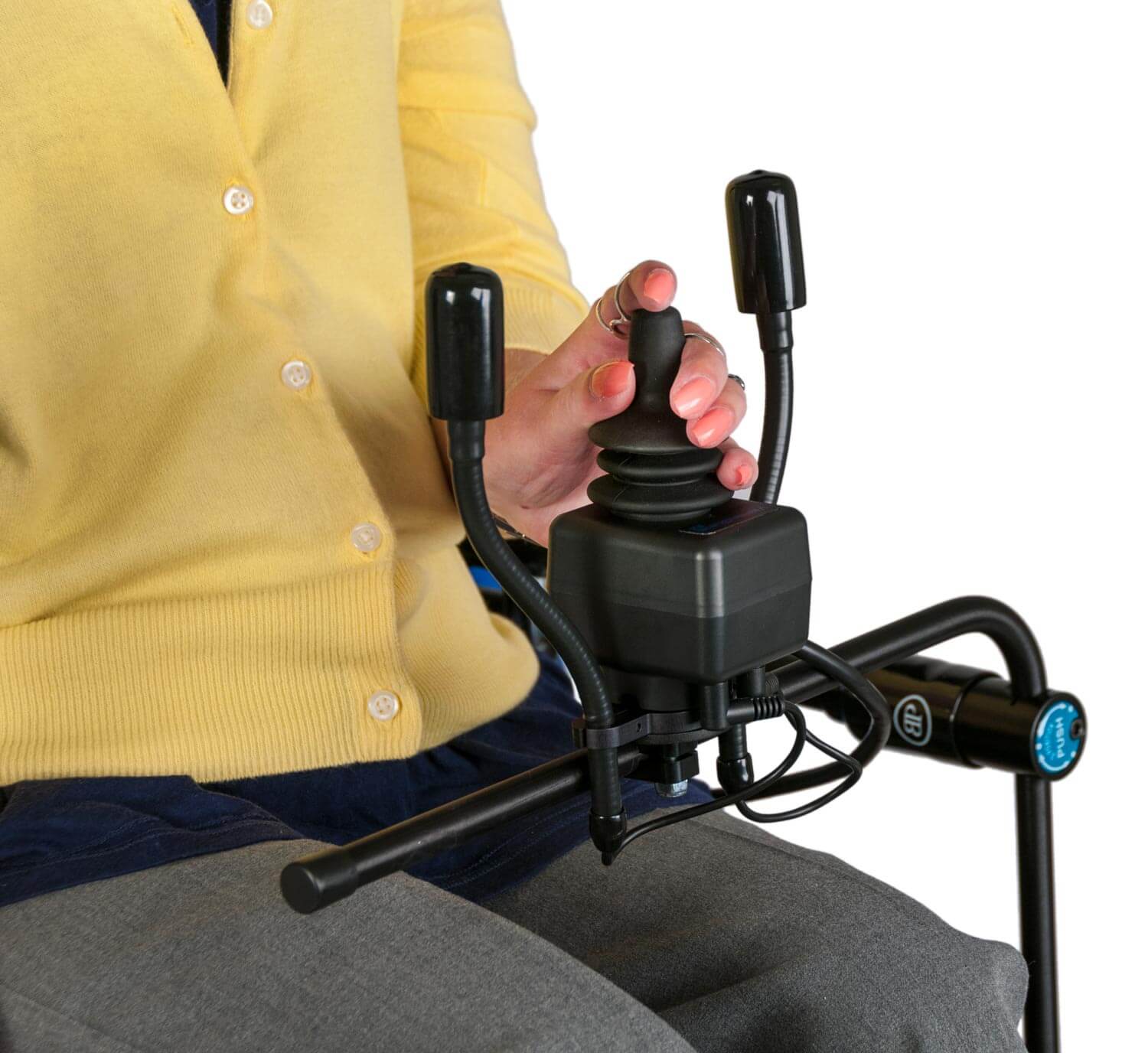

Armrest and Midline Mount

The VersaGuide EZ easily mounts off the armrest or in the midline position. The SpaceDisk hand tray can be modified to fit the VersaGuide EZ. Active Controls Mounting system for the VersaGuide EZ is also available.

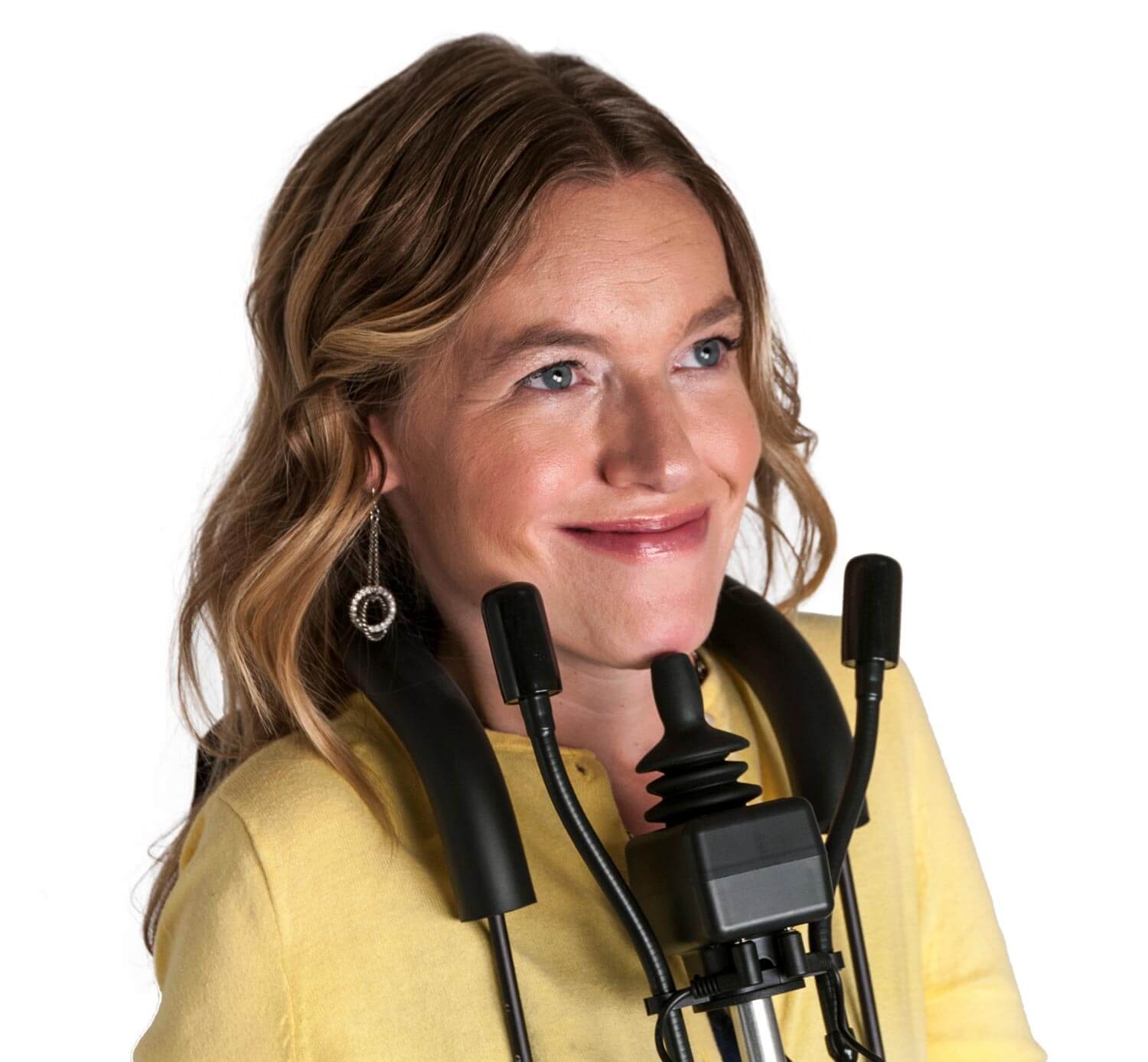

Chin/Mouth Control Mount

The BDN3 is a mounting platform for wheelchair controllers. The BDN3 goes around a user's neck and gives them the ability to use their chin, lips, or tongue to control their powered wheelchair. The mounting position is not dependent on the user's position in relation to the wheelchair as it is mounted to the user, but rather moves with the user. The system comes with a comfortable foam neck pad which makes the harness comfortable.

The BDN3 is available in two sizes: standard at 6" wide, and large at 8" wide. The BDN3 is simple to remove for ease of transfers. Therafin and Stealth Bibs also available.

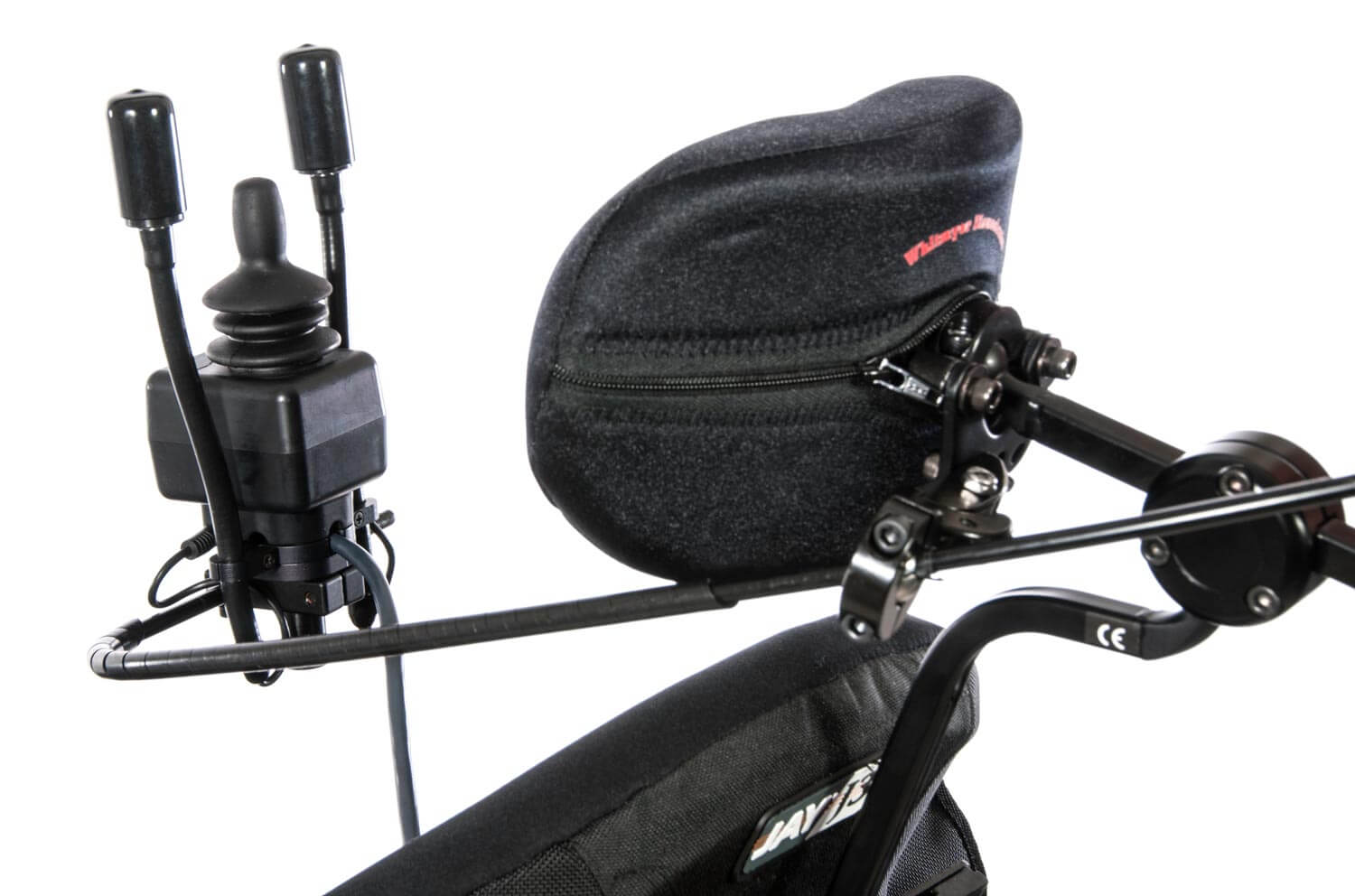

Swing-Away Chin Boom

The Swing-Away Chin Boom is a long L-shaped rod with a clamp to mount the VersaGuide EZ. The chin boom mounts to the back of the headrest. This setup provides the user with chin or mouth control without wearing a harness, and provides for easy transferring of the user.

Specifications

Dimensions

Dimensions:

Diameter Housing: 2.59" L x 2.14" W x 5" H
Overall Height: 5"
Stem Diameter: 0.25"
Travel Before Activation: 12°

Product Information

Model Number:VG-EZ

HCPCS Code:E2328

Performance/Weights

Alternative Control Type:Proportional

Activation Type:Displacement Joystick

Activating Force:120g

Feedback:Displacement/Movement of Joystick Knob

Connector:DB9 Connector to Wheelchair Omni or Enhanced Display

Compatibility:

Penny and Giles R-Net (Omni Display from wheelchair manufacturer is required)
Quantum Q-Logic electronics (Enhanced Display from wheelchair manufacturer is required)
Not compatible with Invacare electronics

Mode Switch Inputs:

Dual Proximity Flex Switches (recommended)
Mechanical switches (i.e., Egg Switch, MicroLite, Piko) into Omni or Enhanced Display
Fiber optic systems (1FBOS, 2FBOS)

Mounting Options:

Armrest Mount
Midline Mount
BDN3 Chin Mount
Swing-Away Chin Boom Mount
BulletTray and SpaceDisk Hand Trays Active Controls Mount
Personalized Mounting Available Upon Request

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
