Q700 M Power Wheelchair

Newly redesigned!

Find Your Dealer

Newly redesigned!

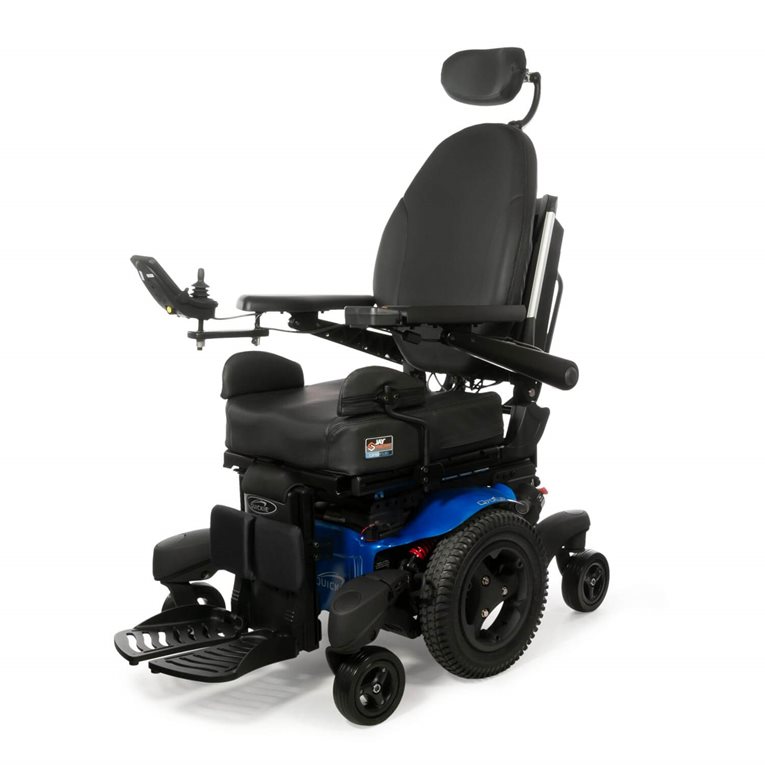

The QUICKIE Q700 M Series power wheelchair combines function and luxury for a unique driving experience. Make your day-to-day a thrill with the Q700 M Series' ProGrip suspension, Biometric Repositioning, reliable 4-pole motors, and PG Drives electronics. Choose the HD option to increase user weight capacity to 450 lbs.

Find Your Local Dealer

Options and Prices

Style: It's a personal thing.

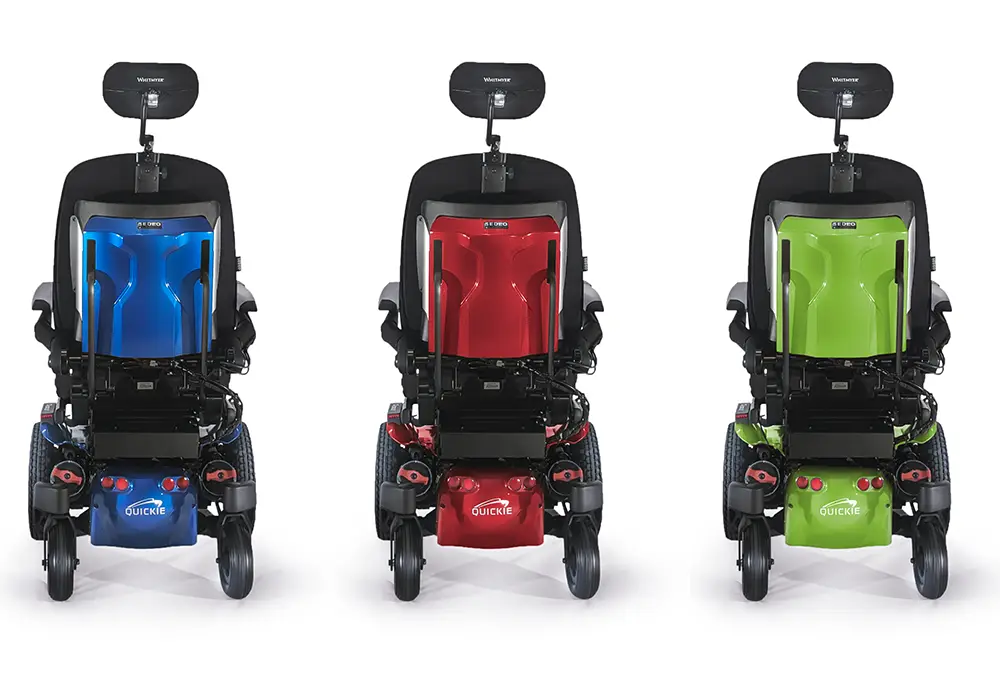

Personalize your QUICKIE Q700 M with a selection of seven striking accent colors for an expressive, individual look. Looking for a style that's a little more unique? Our Built-4-Me modifications team can provide a power wheelchair to reflect your individuality.

Additional painted shroud colors, including the American Flag pattern, are now available. See order form for details.

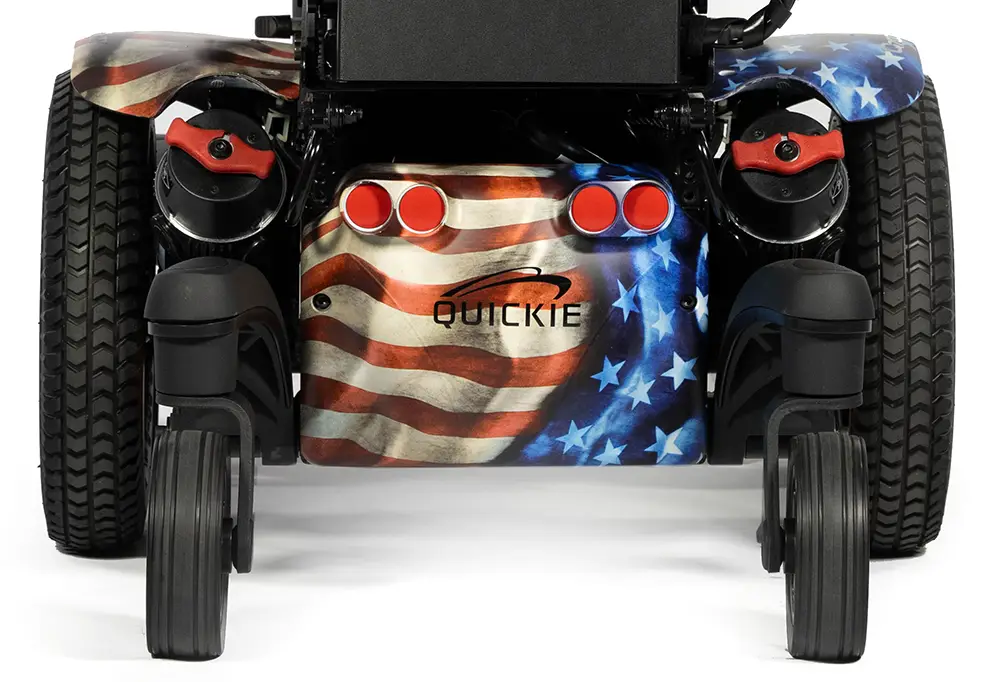

Show your patriotism with a patterned American Flag shroud, or pick from our wide array of striking shroud colors to make your QUICKIE truly yours. From Candy Red to a sleek black accent, explore our collection to find the look that suits you!

American Flag

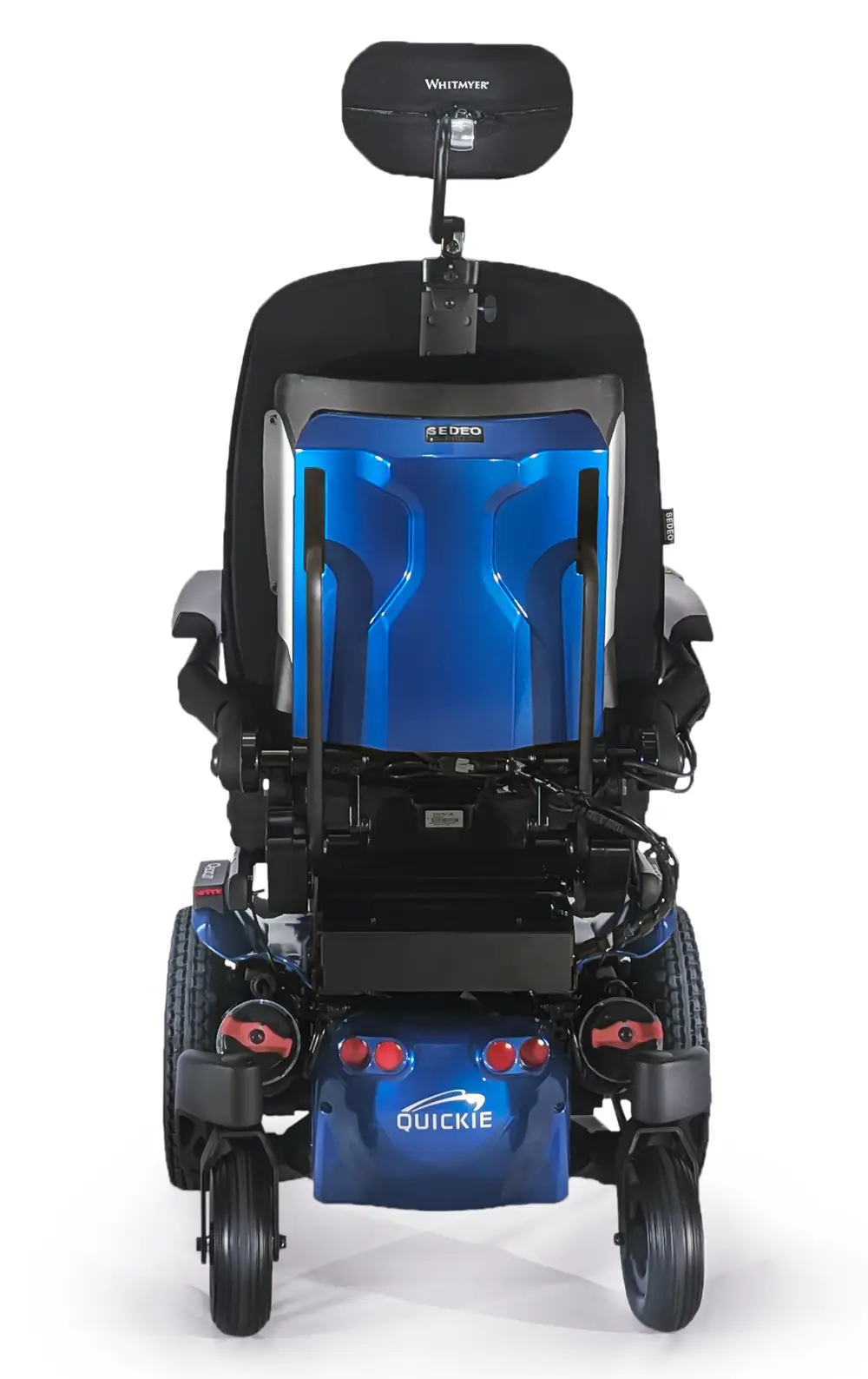

Candy Blue
Candy Purple

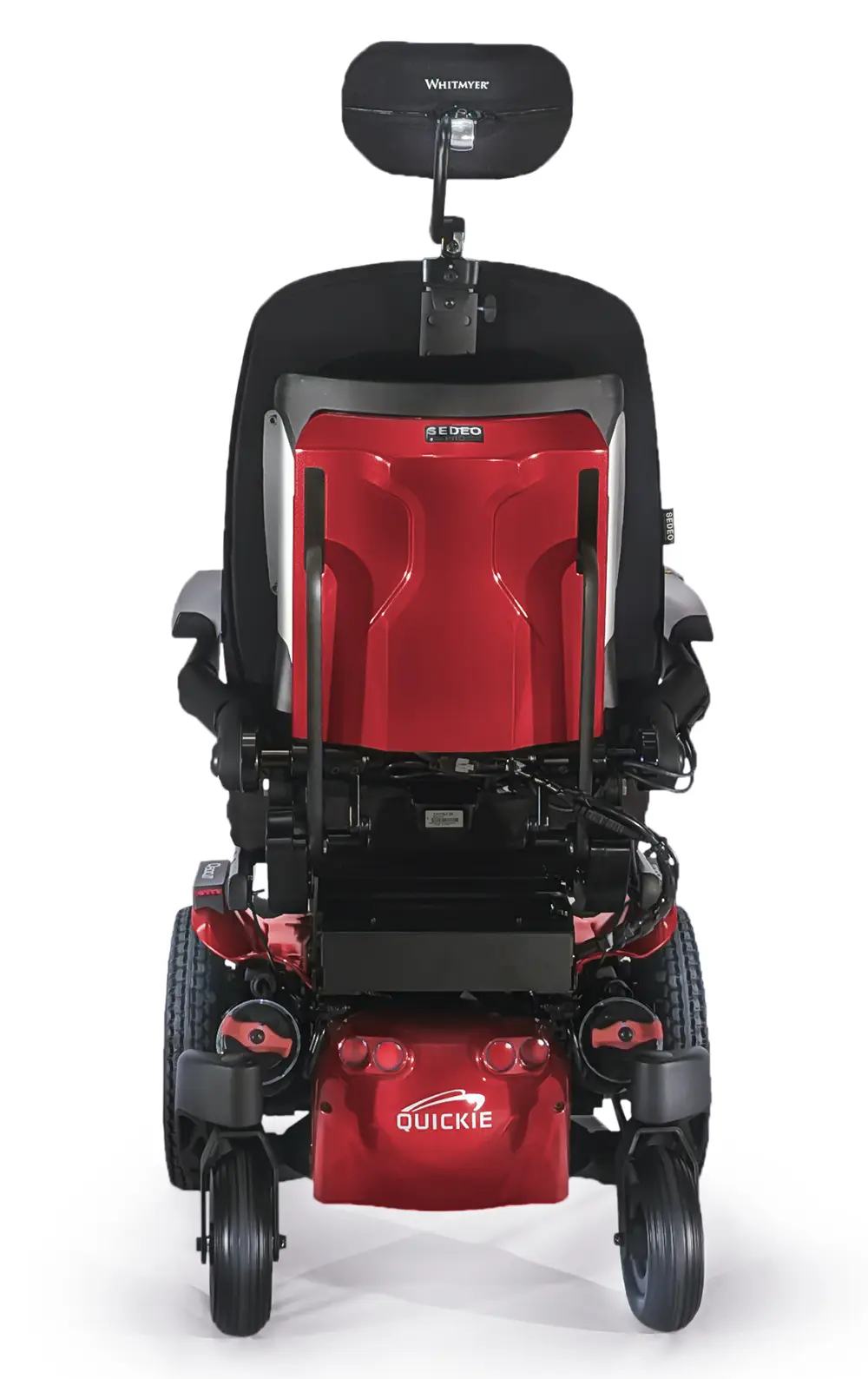

Candy Apple Red

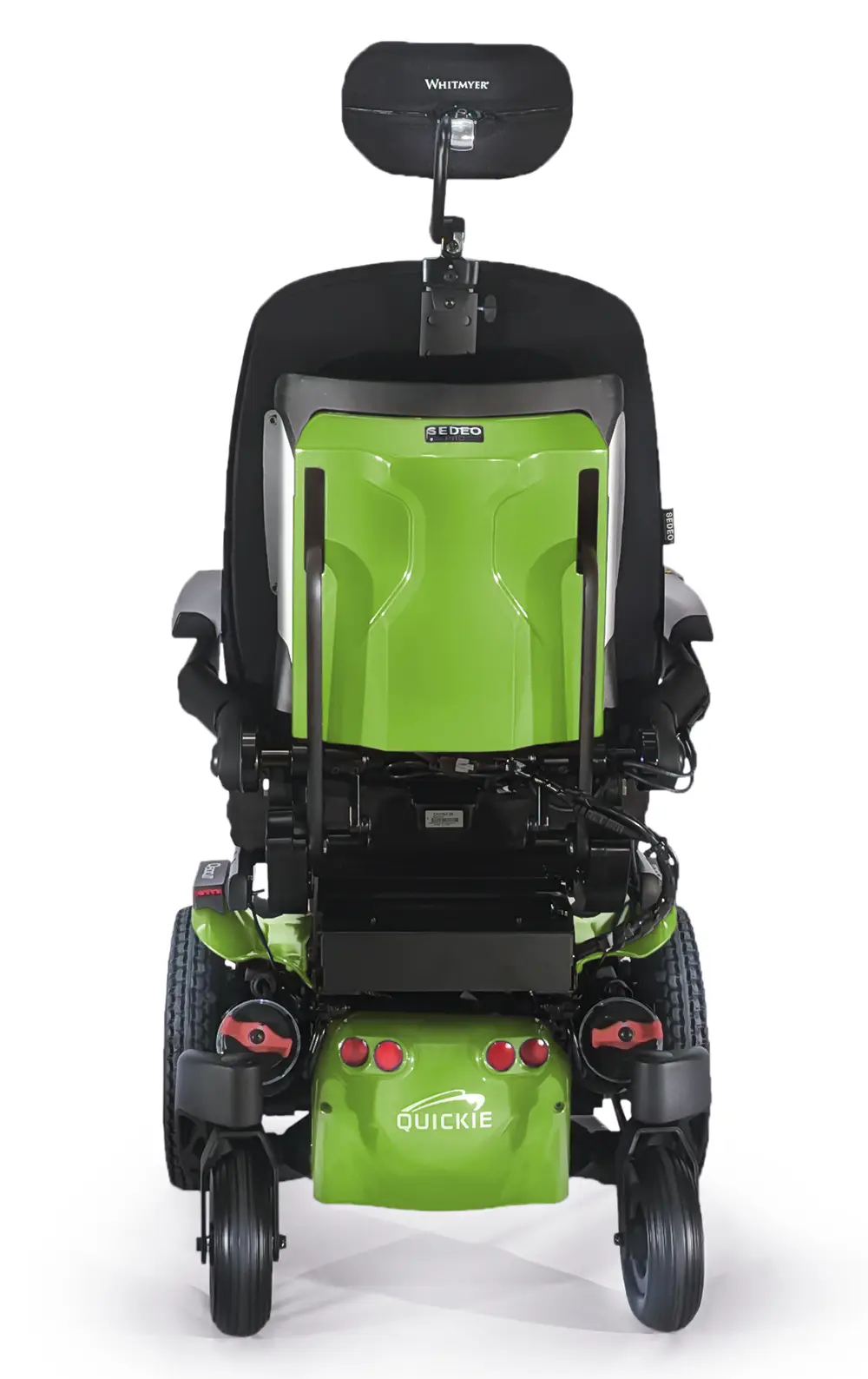

Green Apple

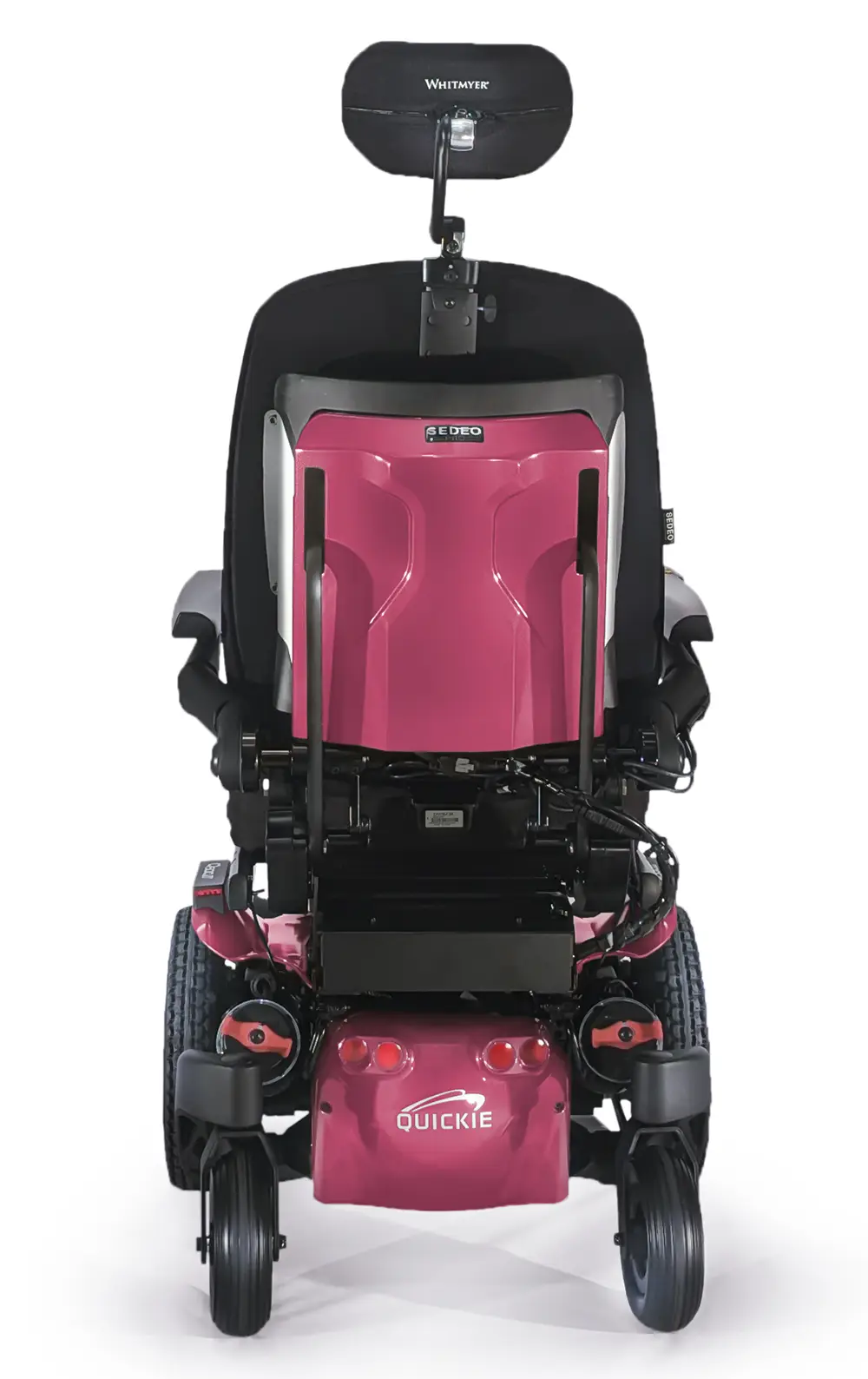

Pearl Pink

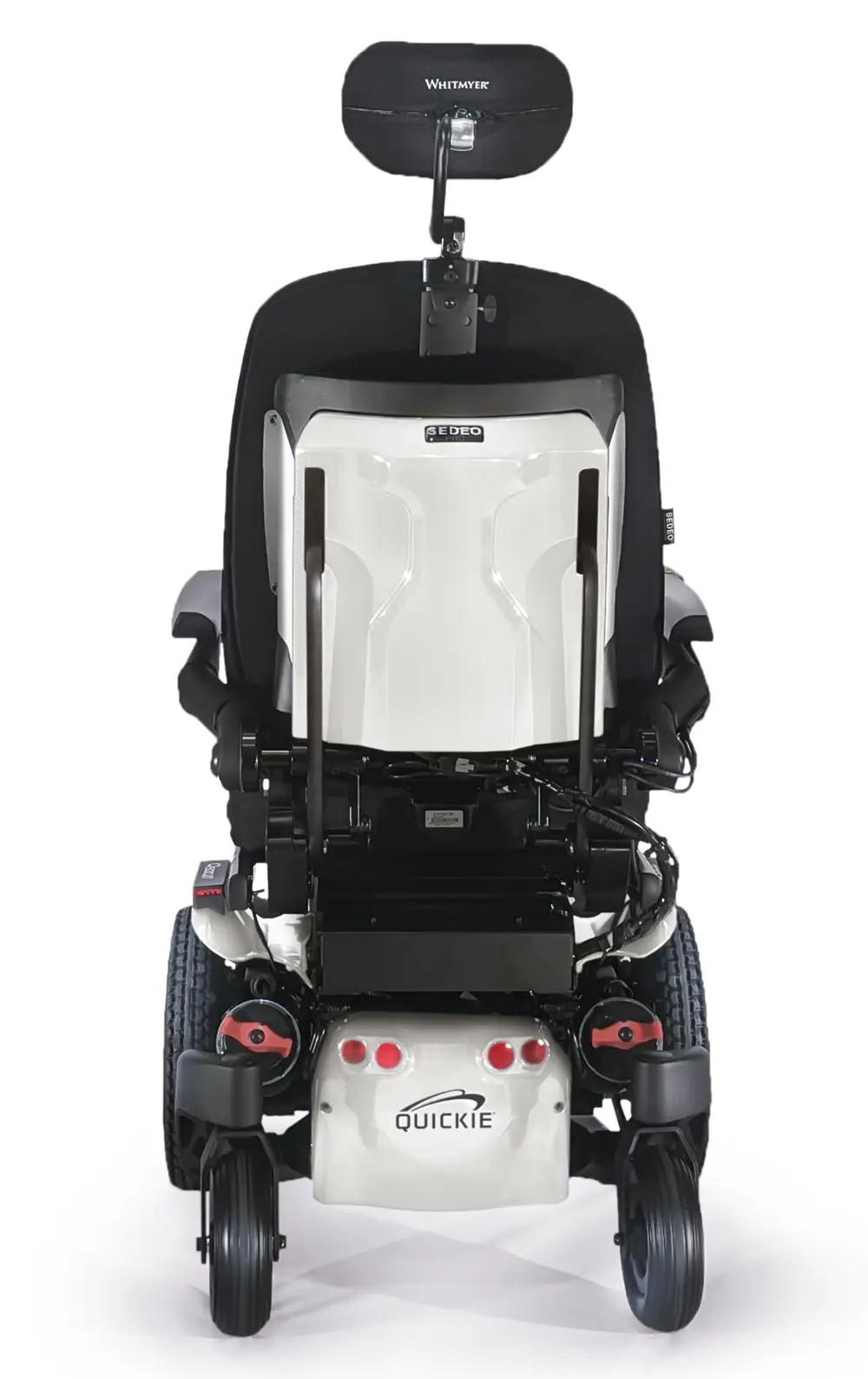

Pearl White

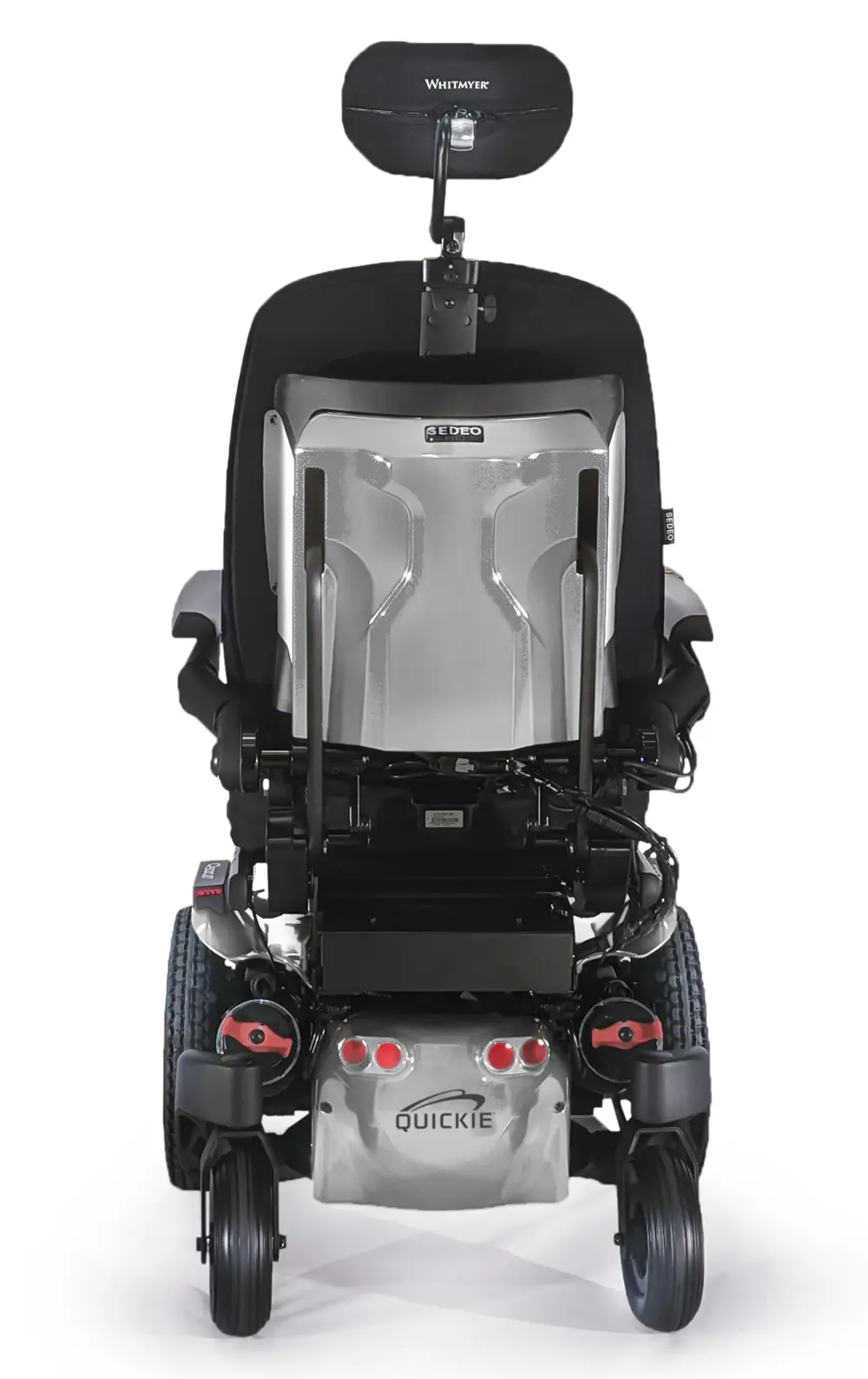

Silver

Mid-Wheel Drive Performance, Evolved

The Q700 M mid-wheel drive base sets the bar for power wheelchair technology inside and out. Travel further with its superior drive performance and feel secure over challenging terrain with its independent suspension movement of all six wheels. It's a driving experience like never before. All Q700 M bases come with Occupied Transit tie-down brackets as standard, no charge.

High-performance outdoor suspension

Climb curbs of up to 3" and enjoy a smoother, more responsive ride with the Q700 M's ProGrip suspension. With its independent movement of all six wheels, the front and rear wheels give it the ability to crawl up and down steep obstacles while keeping all six wheels to the ground - even when ascending gradients of up to 9° (limitations may apply).

*Please read the owner's manual for safe operating instructions.

Keeping you safely on-track

The optional SureTrac^® System automatically detects and corrects the smallest deviation from your input direction. By providing a pinpoint-accurate drive, it'll reduce the number of physical or cognitive actions required to keep your power wheelchair on-track, making for a less-demanding drive (especially if using special controls).

Superb indoor maneuverability

Turning on its own axis, enjoy intuitive driving and excellent maneuverability in tight compact spaces with its narrow 25" base and a 23.5" turning radius. Also, easily roll under tables and access wheelchair adaptive vehicles (WAVs) with a low seat height from just 17".

Timeless design that leaves a lasting impression

Style: it's a personal thing. That's why you have a choice of seven vibrant color inlays to suit your personality. With a matte black chassis finish and tailored upholstery, it's a power wheelchair that provides a truly sleek and minimalist silhouette from every angle. Inspired by its design but want something extra? Our Built-4-Me modifications team can tailor your power wheelchair into a striking expression of you. Why not take it for a spin and experience style in motion?

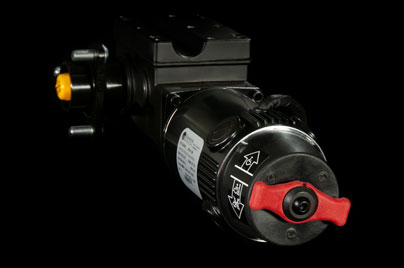

QUICKIE Motor Technology

Our robust motor technology can't be easily duplicated anywhere else. That's because we've spent years working closely with our manufacturer to develop a longer-lasting, highly efficient motor with improved performance, drivability, and range.

Engineered for optimal driving performance

We know that more time is spent maneuvering around a home and workplace versus traveling long distances. That's why we've designed our motors to give you the control you need in small spaces without sacrificing the power you want to tackle obstacles. Plus, you'll be able to drive 10% further on the same battery capacity. Similar to a car driving on the highway versus in the city, don't sacrifice performance in places where it's needed the most.

Reduced thermal rollback

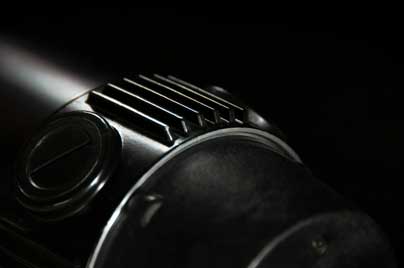

The larger fins found on our motors aren't just a stylish design feature. Larger cooling fins enable heat to escape more effectively, reducing your risk of thermal rollback so you can drive 25% further and faster when combined with the additional boost, even when on an incline or faced with uneven surfaces.

Equipped with 10 seconds of power boost

Overcoming obstacles like steeper inclines and even door jambs gets easier with our controller and motor combination. These two systems work together to provide you with an additional 10 seconds of boost for that extra power whenever you need it.

Designed to last

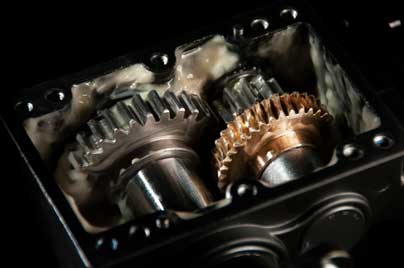

Unlike some of our competitors, QUICKIE motors feature metal gears instead of plastic. Polished for low noise and high efficiency, our all-metal gears exceed expectations in tough conditions. We go the extra step in polishing those gears because we believe that a little extra effort goes a long way in creating a better ride.

QUICKIE Motor Technology continually exceeds rigorous testing standards. With a proven 99% success rate, your ride will be unlike any other. QUICKIE 4-pole motors generate 18% more power than previous generations.

LUCI Smart Technology

LUCI prevents tips, collisions, and falls before they happen, so we can see a curb for what it really is: just a harmless little piece of concrete separating the sidewalk from the street. Available as an optional add-on for SEDEO PRO seating.

LUCI shown on Q500 M base for illustration

Learn more about LUCI

C-Me Seat Elevation

No more waiting around or driving at reduced speed when elevated. C-Me^® enables you to elevate up to 12" while traveling up to 3 mph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time!

Our power wheelchairs are designed with style for long-lasting performance. Unlike some of our competitors, our suspension doesn't lock out when you drive with C-Me, giving you a smooth and comfortable ride from start to finish. You'll never have to compromise dependability for accessibility again.

C-Me available on SEDEO PRO ADVANCED, PRO and LITE seating systems.

Learn more about C-Me

Q700 M Seating System Comparison

The QUICKIE Q700 M is available with four distinct seating systems: the highly featured SEDEO PRO ADVANCED, the versatile SEDEO PRO, the simple SEDEO LITE, and the comfortable Captain Seat.

	SEDEO PRO ADVANCED	SEDEO PRO	SEDEO LITE	Captain Seat
Biometric Repositioning	✔	-	-	-
Remote Seating App	✔	-	-	-
Memory Seating	✔	-	-	-
Pressure Relief Alert Reminder (PRAR)	✔	-	-	-
Cryo fluid (available only on JAY Syncra seating)	✔	✔	-	-
Power Recline w/ 7" of Shear (165°)	✔	-	-	-
Power Recline w/ 4" of Shear (150°)	-	✔	-	-
Manual Recline Option	-	✔	-	✔
Dual-Link Arm Supports	✔	✔	-	-
30° Anterior Tilt	✔	-	-	-
Power 50° Center Gravity Tilt	✔	✔	✔	✔
Power Legrest	✔	✔	✔	✔
12" Elevate	✔	✔	✔	✔
C-Me^® Seat Elevation	✔	✔	✔	-
Seat Width	16" - 22"	16" - 26"	15" - 20"	16", 18", 20"
Seat Depth	15" - 20"	14" - 22"	16" - 22"	16" - 22"
Backrest Height	22" - 28"	22" - 30"	18" - 30"	25"
	Learn More	Learn More	Learn More	Learn More

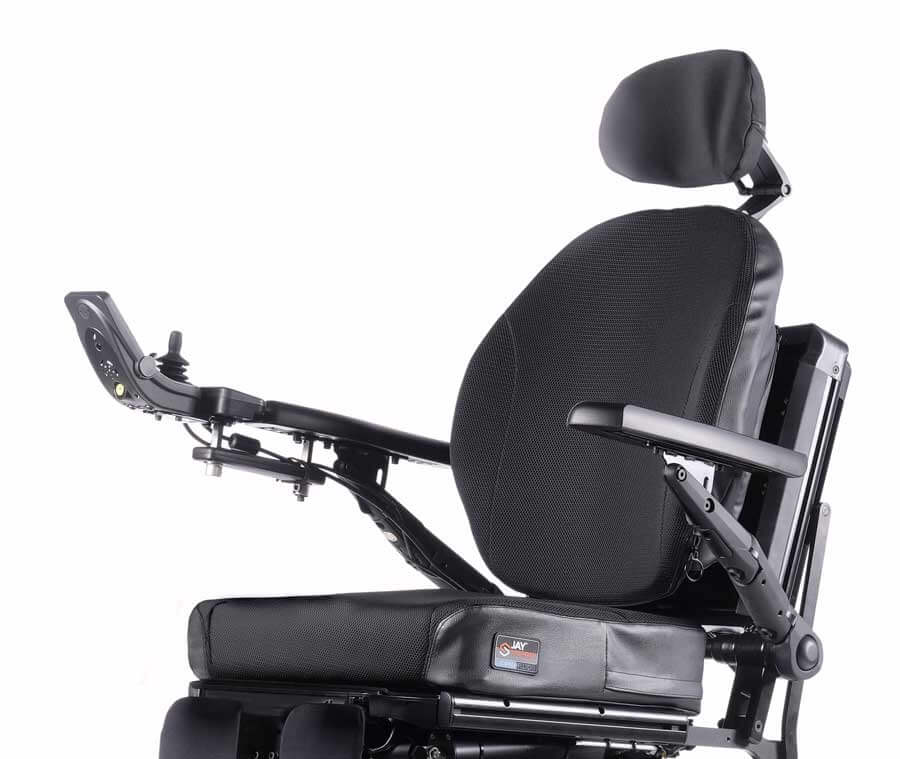

SEDEO PRO ADVANCED - Intelligent Seating with Remote Seating App

It's the first-class seat that's designed specifically to fit you. The SEDEO PRO ADVANCED with patented Biometric Repositioning is more effective than any other seating system when it comes to independent repositioning throughout the day.
Learn more about SEDEO PRO ADVANCED seating

Adjustable to fit you

The premium headrest (1) can easily be adjusted or removed. All seat widths and depths (2) are infinitely adjustable with just one tool. Also, the seat and backrest width (3+4) can be adjusted independently of each other. Even the armrest height and angle (5) are simple to adjust, too.
Anti-Shear Backrest

Transitioning in and out of recline doesn’t need to be uncomfortable. The SEDEO PRO ADVANCED’s power recline is supported by 7" of anti-shear to better maintain the positioning of the headrest, and even chin control, during recline.
Biometric Repositioning

Moving out of a reclined position often requires use of the tilt function to regain your proper seated posture. With the patented Biometric Repositioning, when you move from reclined to seated, the SEDEO PRO ADVANCED will first pass through an intermediary tilted position, using gravity to realign your pelvis in one smooth, effortless motion.
Pressure Relief Reminders

Your Q700 M can also provide pressure relief reminders to help remind you when it's time to change your seated position. Using the Remote Seating app, reports are created and can be sent to your clinician to review.
Dual-Link Arm Supports

The new dual-link arm supports can be easily adjusted to a user's exact needs, allowing for closer joystick positioning and a slimmer profile at the backrest.
30° Anterior Tilt

Anterior tilt can assist with positioning for easier and safer standing and sliding transfers, as well as pressure management. The alternative positioning provided by anterior tilt can allow for increased access to get under some tabletops and improved functional reach to enhance participation in dining, leisure, and work activities.

The SEDEO PRO ADVANCE's 30° anterior tilt function allows you to continue to drive while anterior tilt is engaged.

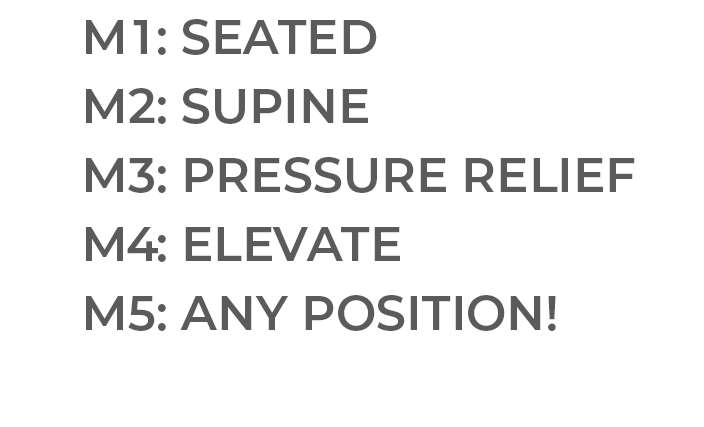

Memory Positions

Get the most out of your Q700 M's powered seating options with Memory Seating, allowing you to save up to six programmable positions and transition to them with a simple press of a button.

But why waste time navigating through menus to find the seat position you need? With the Ctrl+5^®, you can go straight to the function you need at the touch of a button. Want more than five functions? No problem - you can assign up to 10 commands on each box.

Click on the button to change

Switch-It Remote Seating App

The Switch-It^® Remote Seating app measures your seating angles and tracks the duration you remain in the position in order to improve your overall health through pressure management.

BLUETOOTH^® technology seamlessly connects to your wheelchair
Live reports are created on the angle and duration of tilt, recline, and leg elevation
Reports can be shared with therapists and physicians via email
Helps create pressure relief plans
Alerts user to adjust seating
Available on Apple^® iOS (refer to owner's manual for compatible versions)

Available exclusively on SEDEO ERGO seating.

SEDEO PRO - Configurable Seating with JAY Syncra

The SEDEO PRO seating system combines a highly adjustable and configurable seating frame with an excellent choice of support options including optimized integration with JAY components. Choose from a wide range of SEDEO PRO seat cushions and backrests for mild to high clinical needs. The SEDEO PRO is very comfortable to use and enhances user independence in everyday life.
Learn more about SEDEO PRO seating

Backrest Options
A variety of backrest options are available for the SEDEO PRO seating system. The 150° powered recline backrest offers 4” of anti-shear, making sure to minimize the sliding between you and the cushion.
- Fixed backrest
- User-adjustable manual semi-recline backrest
- 150° powered recline backrest with 4" shear reduction
Flip-Back Armrest

The easy-to-operate flip-back armrest gives you unencumbered transfer space. Choose from a removable or reclining version (reclining shown right).

Also available: single-post removable armrest. All are compatible with four armpad options.
Highly Adjustable

Adjust seat depth and width, backrest angle and height, legrest angle, lower leg length, armrest height and depth, and headrest height. These adjustment options give you total flexibility and can be done quickly and easily, creating the right seating posture for you. All with one tool allowing for easy configuration in case of changing requirements.
Highly Configurable

The SEDEO PRO offers an excellent choice of options to create the perfect fit for the user. With four backrest types, four armrest types, five legrest types, and a wide range of seat & back cushions, headrests, and positioning options. It can be easily configured to suit individual requirements and quickly adapted to changing needs.
Positioning Elements

Many positioning elements are available like SEDEO headrests & WHITMYER headrests, swing-away lateral thoracic supports, thigh supports, or knee supports.

All positioning elements are swing-away or easily detachable.
Leg and Foot Positioning Options

The SEDEO PRO offers a full array of footrest options. You can choose a power elevating and articulating leg rest which allows for optimal positioning and comfort. Power elevating leg rests are available as center mount or individual swing-away versions. Alternatively, you can also choose a manual elevating swing-away leg rest or traditional fixed angle style in both swing-away or center mount.
Elevate and Drive With C-Me

No more waiting around or driving at reduced speed when elevated. C-Me^® enables you to elevate up to 12" while traveling up to 3 mph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time!
Dual-Link Arm Supports

The new dual-link arm supports can be easily adjusted to a user's exact needs, allowing for closer joystick positioning and a slimmer profile at the backrest.

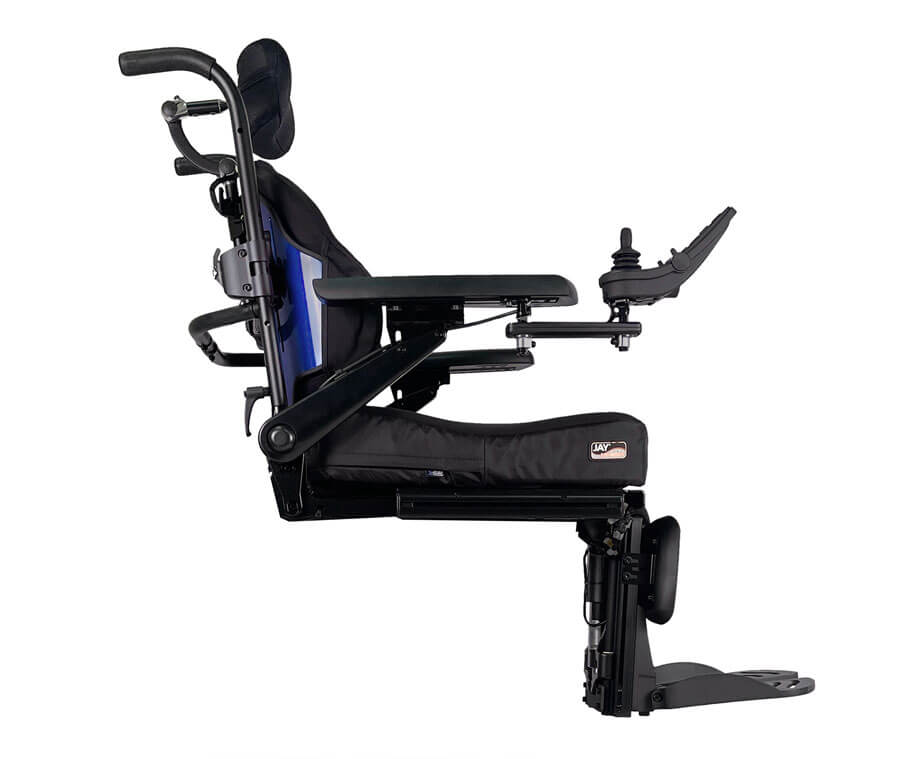

SEDEO LITE - Simple, Adjustable Seating

Sometimes less is more. The SEDEO LITE is an adjustable seat frame that gives you a simple, sleek look. Its minimal design alleviates weight capacity concerns when using aftermarket equipment. As one of the lightest seating systems on the market, the Q700 M equipped with SEDEO LITE seating has a starting weight of 294 lbs., making it a great solution for many hitch-mounted lifts. The traditional back canes are width-adjustable from 15" to 20" and easily fit JAY back rests.
Learn more about SEDEO LITE seating

Easy to Adjust

Effortlessly make a wide range of adjustments using just one tool! To accommodate changing requirements, seat widths can adjust between 15" and 20" and seat depth can adjust between 16" and 22". The easy-to-operate, flip-back armrest gives you unencumbered transfer space. With 5" of armrest height adjustability and a large array of adjustable options available on the SEDEO LITE, it is easy to find the right fit.
Leg and Foot Positioning

The SEDEO LITE offers a full array of legrest options. Choose from multiple centermount options such as fixed, power, or the new angle-adjustable centermount.
Tilt and Elevate

The SEDEO LITE offers 50° of tilt with automatic center of gravity (COG) adjustment for improved stability. In addition to the low seat-to-floor height, enjoy 12 inches of elevate, rated up to 350 lbs.!
Options

Traditional back canes give the ability to easily mount a range of JAY^® backrests or a height-adjustable sling back with adjustable straps. Choose from a selection of Whitmyer^® or SEDEO^® headrests - each are compatible whether you opt for a traditional back mount or the integrated mount with the sling. The side seat rail allows for additional mounting solutions such as transfer bars, thigh supports, and knee supports with infinite adjustment.
Fold-Down Back

With transportation in mind, the lightweight seat is complemented with a fold-down or removable back to provide one of the most compact power seating systems in the market.

Captain Seat - Comfortable Seating

The Captain Seat provides a relaxed sitting position and features a semi-recline, fold-down backrest, adjustable seat size, and convertible seat pan that allows you to use your preferred cushion. Available with a 50° tilt and power centermount legrest.

Depth-adjustable seat size, legrest placement, and armrest width
Convertible seat pan for flexibility in cushion selection
Semi-recline and fold-down backrest
Optional oxygen, crutch, and walker holders

JAY Syncra Seating System

The JAY^® Syncra^™ cushion and back support system are designed to work together to maintain pelvic stability and alignment, especially during tilt and recline. This combination minimizes the risk of posterior pelvic tilt, reduces shear forces, and helps users achieve a more stable, supportive seating position.

Available covers include 4-Way Stretch and Premium Leatherette.

Syncra is exclusively available on SEDEO PRO and SEDEO PRO Advanced seating systems.

Syncra Cushion

The Syncra cushion includes a lowered rear pelvis wall and deeper leg troughs, cradling the pelvis and thighs to improve alignment and prevent sliding. Its 4" tall, contoured design helps reduce pressure injuries by offering targeting pressure relief.

JAY Syncra featuring CryoFluid – which comes standard on the Syncra – is the optimal seating system for power wheelchair users who have a history of pressure injuries. Learn more about Cryo Technology.
Syncra Backrest

The Syncra back support features a highly adjustable shell placement to optimize the rider's position. In addition, the back's customizable width and height accommodate changes in user needs over time. Finally, a scalloped bottom edge encourages optimal positioning throughout the full recline movement.
Syncra Lateral Thigh Supports

The Syncra removable lateral thigh supports are height, width, depth, and angle adjustable to align with the angle of the leg for optimal positioning. The quick-release lever allows for easy placement and removal which may benefit clients with limited dexterity.
JAY Lateral Thoracic Supports
Lateral thoracic supports enhance lateral support beyond the back depth for riders who may lean to the side and benefit from extended stability. Available in two styles:
- Fixed, which mounts under the backrest cover to add up to 2" of contour with broad height adjustability
- JAY Swing-Away, allowing easy transfer access

JAY & WHITMYER Seating and Positioning Options

A wide range of JAY cushions and backs & WHITMYER headrests are available with the Q700 M to meet all of your clinical needs.

Find out more

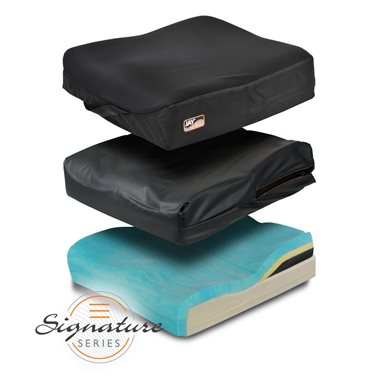

Ion^® Cushion

Comfortable, convenient, and quality skin protection and positioning wheelchair cushion

Union^® Cushion

JAY Flow^® fluid and memory foam wheelchair cushion for high performance skin protection and positioning

J3^® Back

More sizes. More styles. More wheelchair backs for the perfect fit.

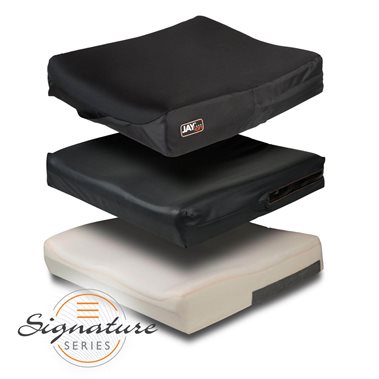

Fusion^® Cushion

Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability

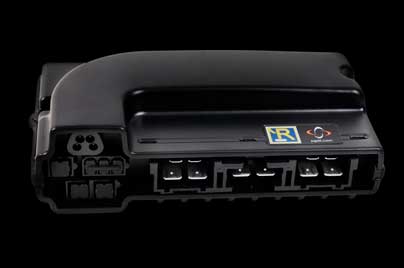

Control at Your Fingertips

Control your environment with the Q700 M Series and its advanced controller technology. Available with the superior R-Net advanced joystick as standard, the large, easy-to-read display and simple-to-control paddle switches allow for intuitive operation.

CONNECT

Seamlessly take control of your environment using the integrated infrared functionality. Use your joystick like a remote control for your TV and select home entertainment systems.

BLUETOOTH^®

Control your phone, computer, tablet, and any other Bluetooth^® devices, compatible with Android^™ and Apple^® iOS devices from your Q700 M power wheelchair with this useful optional extra. Connect and control up to four devices.

QUICKIE-PATENTED ASSIGNABLE BUTTONS

Change the function of any button on your joystick to any command you desire, thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons for quicker, simpler, and smoother access to commonly used functions without having to use your joystick.

Switch-It Specialty Controls

If driving with a traditional joystick is not the best option, alternative drive controls allow you to fully experience your Q700 M power wheelchair's driving capabilities and benefits.

Find out More

MicroGuide

Light-touch proportional control

VersaGuide

Compact proportional control

Dual Pro^®

Truly proportional head array for intuitive driving

Buttons and Switches

Power wheelchair accessibility

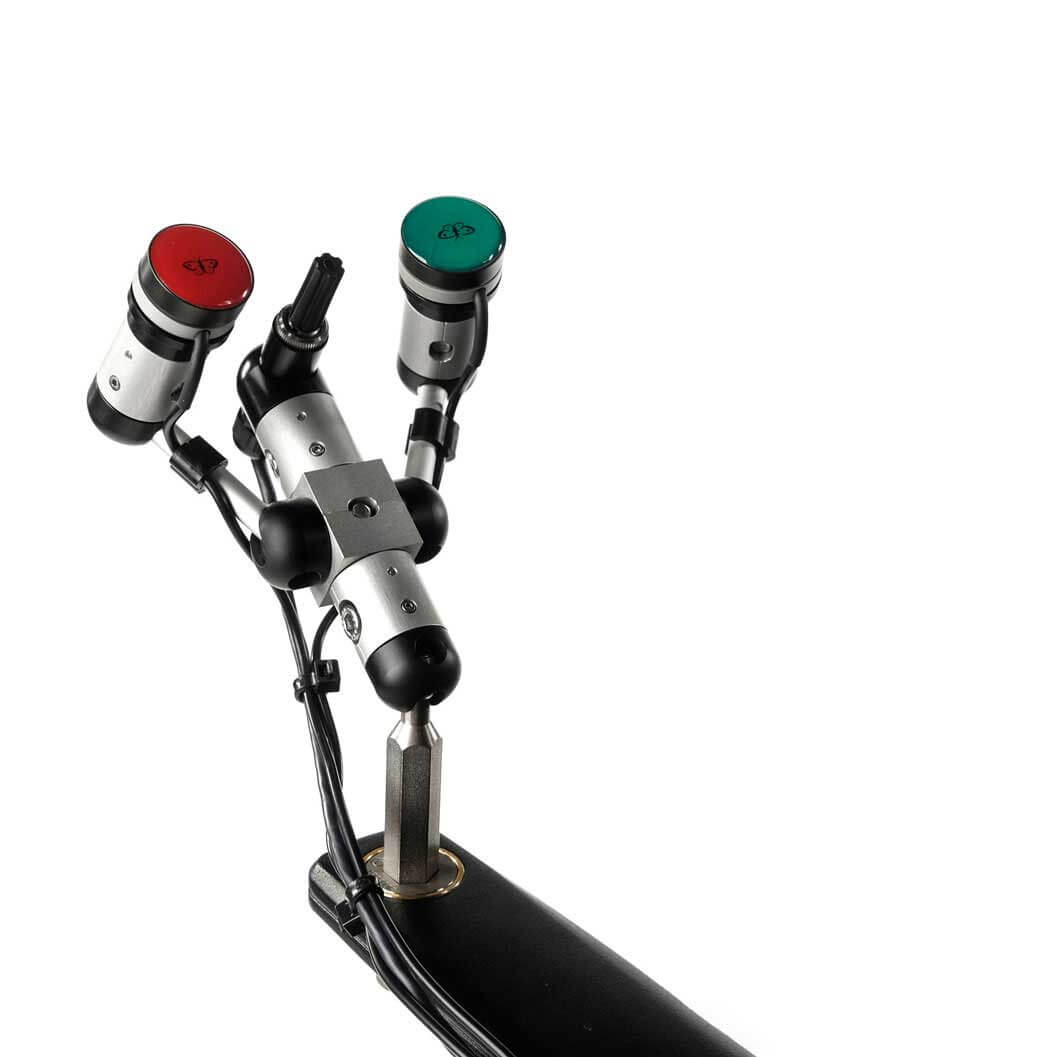

Link-It Mounting System

Need to use additional switches or specialty controls? Easily connect them using the universal Link-It^® Mounting System. Using a combination of available modules and rods, create endless combinations. It's easy to position and ensures your wheelchair maintains its sleek look. Whether it's an extra controller on the armrest, a push button on the backrest, or a switch on the headrest, just link-it.

Specifications

Dimensions

Product Width:

Q700 M: 25"
JAY Syncra Back: 16", 18", 20", 22"

Product Length:36.5"

Product Height:JAY Syncra Cushion: 4"

Seat Width:

SEDEO PRO ADVANCED: 16" to 22"
SEDEO PRO: 16" to 26"
SEDEO LITE: 15" to 20"
Captain Seat: 16", 18", 20"
JAY Syncra Cushion: 16" to 20" & 22"

Seat Depth:

SEDEO PRO ADVANCED: 15" to 20"
SEDEO PRO: 14" to 22"
SEDEO LITE: 16" to 22"
Captain Seat: 16" to 22"
JAY Syncra Cushion: 16" to 20" & 22"

Note: Back cushion can cause 2" loss of effective depth.

Seat-to-Floor Height:16.5" to 19"

Back Height:

SEDEO PRO ADVANCED: 21" to 28"
SEDEO PRO: 21" to 30"
SEDEO LITE: 18" to 30"
Captain Seat: 25"
JAY Syncra Back: 22" to 30", utilizing 16", 18", 20", 22" back shell heights

Turning Radius:23.5"

Ground Clearance:3"

Product Information

Model Number:EIPW25

HCPCS Code:No Power Seating Options

Group 3 Standard Duty - K0848
Group 3 Heavy Duty - K0850
Group 4 Standard Duty - K0868

Single Power Seating Options

Group 3 Standard Duty - K0856
Group 3 Heavy Duty - K0858
Group 4 Standard Duty - K0877

Multi Power Seating Options

Group 3 Standard Duty - K0861
Group 3 Heavy Duty - K0862
Group 4 Standard Duty - K0884

Captain Seat

K0849

Warranty:Lifetime Limited

Performance/Weights

Max. Range:Up to 18 miles

(w/Group 24 batteries and 6 mph motors)

Max. Speed:

6 mph (standard)
5 mph (optional)
8 mph (optional)

Battery Size:

Group 34
Group 24

Drive Wheel Position:Mid

Seat Memory Functions:

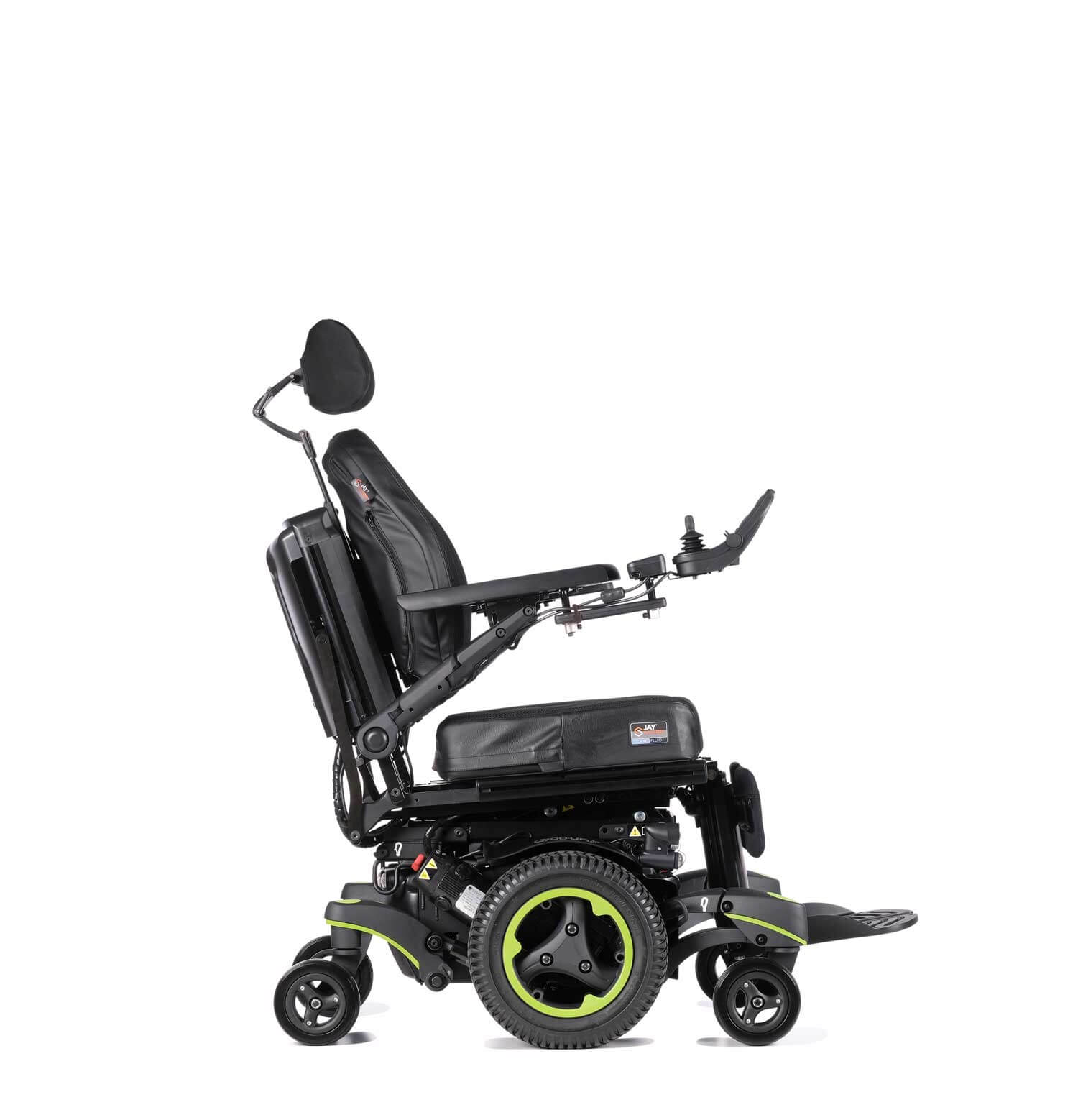

Seated
Pressure Relief
Supine
Feet Above Heart
Transfer
C-Me

Wheel Options:14" drive wheels; 6" casters

Transit:ISO 7176-19:2008 Transit Approved

User Weight Capacity:

300 lbs
HD: 450 lbs

Product Weight:SEDEO PRO, with batteries

No Power Seating Options: Starting at 328 lbs.
Single Power Seating Options: Starting at 352 lbs.
Multi Power Options: Starting at 366 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
