Q500 M Power Wheelchair

Superior maneuverability. Compact design.

Find Your Local Dealer
Find Your Dealer

Superior maneuverability. Compact design.

The new QUICKIE Q500 M power wheelchair balances superb indoor maneuverability with outstanding performance and head-turning style. All of these combined with the benefits of the highly configurable SEDEO PRO seating and the most advanced controls, creates the perfect power wheelchair for any adventure.

Find Your Local Dealer Options and Prices

Style: It's a personal thing.

Personalize your QUICKIE Q500 M with a selection of six striking colors for an expressive, individual look. Looking for a style that's a little more unique? Our Built-4-Me modifications team can provide a power wheelchair to reflect your individuality.

Additional painted shroud colors, including the American Flag pattern, are now available. See order form for details.

Show your patriotism with a patterned American Flag shroud, or pick from our wide array of striking shroud colors to make your QUICKIE truly yours. From Candy Apple Red to a sleek black accent, explore our collection to find the look that suits you!

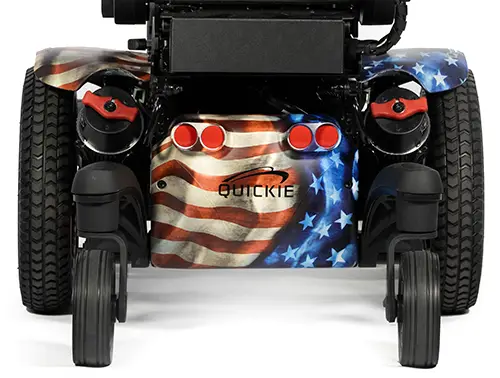

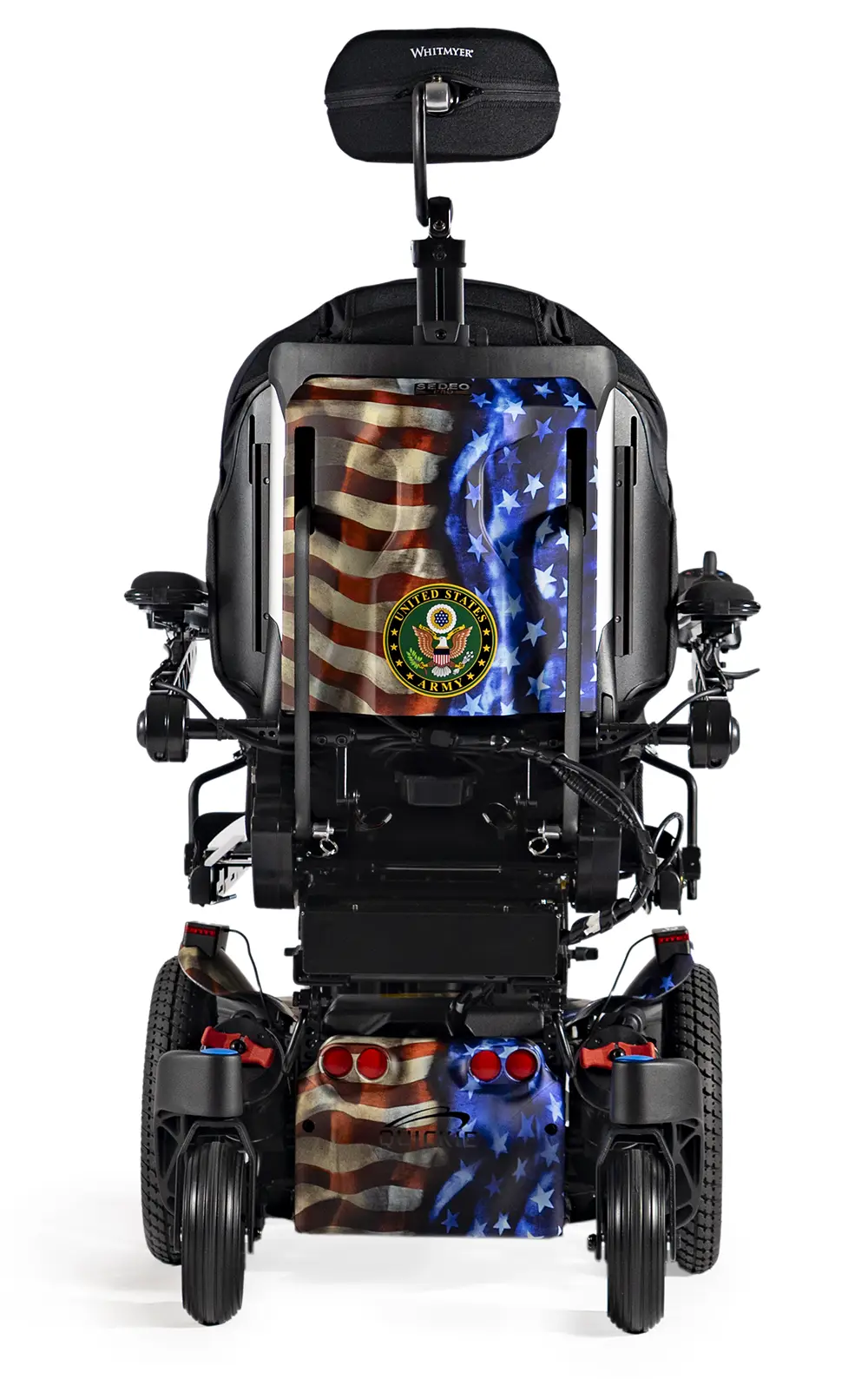

  • American Flag

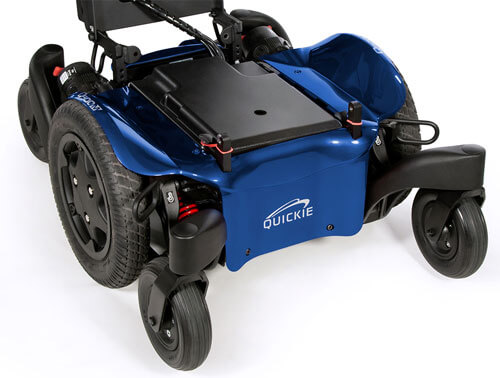

  • Candy Blue
  • Candy Purple
  • Candy Apple Red

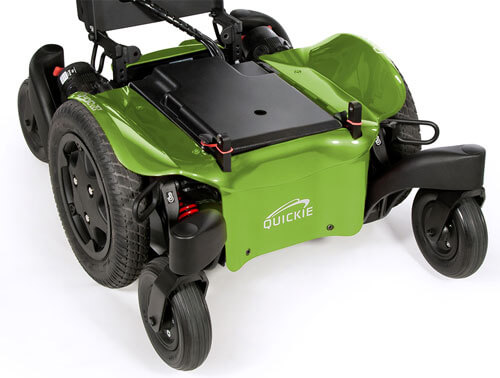

  • Green Apple

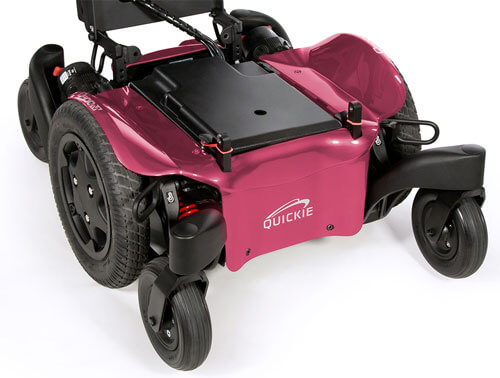

  • Pearl Pink

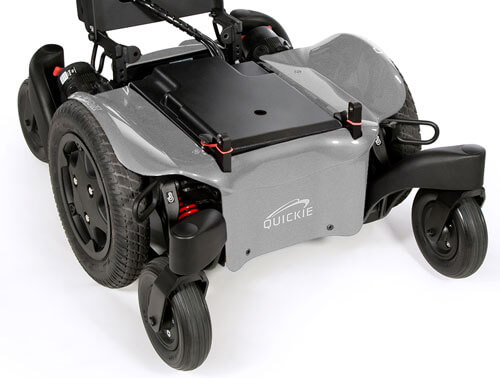

  • Silver

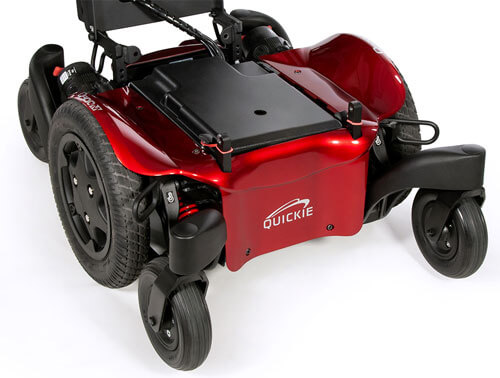

Candy Red shroud

The Evolution of Mid-Wheel Drive Performance

The new QUICKIE Q500 M base balances superb indoor maneuverability with outstanding performance and head-turning style. All of these combined with the benefits of the highly configurable SEDEO PRO seating and the most advanced controls, creates the perfect wheelchair for any adventure. All Q500 M bases come with Occupied Transit tie-down brackets as standard, no charge.

Keeping you safely on-track

The optional SureTrac® System automatically detects and corrects the smallest deviation from your input direction. By providing a pinpoint-accurate drive, it'll reduce the number of physical or cognitive actions required to keep your power wheelchair on-track, making for a less-demanding drive (especially if using special controls).

With ultra-reliable high-torque 4-pole motors powering at 6 mph and Group 34 batteries to maximize your range, you can always travel in confidence with the Q500 M SEDEO PRO.

Superb Indoor Agility

Turning on its own axis, enjoy intuitive driving and excellent maneuverability in tight, compact spaces with its narrow 24" width and a 18.5" turning radius. Easily transfer in and out & effortlessly access vehicles and under tables with the lower than ever seat-to-floor height (from 16.5").

Outstanding Performance

Enjoy a smooth and stable ride, even over uneven terrain, with QUICKIE's patented all-wheel suspension – six independently suspended wheels give you the smooth ride you're looking for. The Q500 M has 3" of ground clearance and the best traction even when ascending gradients of up to 7°.

The Evolution of Mid-Wheel Drive Performance

QUICKIE Motor Technology

Our robust motor technology can't be easily duplicated anywhere else. That's because we've spent years working closely with our manufacturer to develop a longer-lasting, highly efficient motor with improved performance, drivability, and range.

Engineered for optimal driving performance

Quickie Motor Technology

We know that more time is spent maneuvering around a home and workplace versus traveling long distances. That's why we've designed our motors to give you the control you need in small spaces without sacrificing the power you want to tackle obstacles. Plus, you'll be able to drive 10% further on the same battery capacity. Similar to a car driving on the highway versus in the city, don't sacrifice performance in places where it's needed the most.

Reduced thermal rollback

Cooling fins

The larger fins found on our motors aren't just a stylish design feature. Larger cooling fins enable heat to escape more effectively, reducing your risk of thermal rollback so you can drive 25% further and faster when combined with the additional boost, even when on an incline or faced with uneven surfaces.

Equipped with 10 seconds of power boost

Power Boost

Overcoming obstacles like steeper inclines and even door jambs gets easier with our controller and motor combination. These two systems work together to provide you with an additional 10 seconds of boost for that extra power whenever you need it.

Designed to last

Metal gears

Unlike some of our competitors, QUICKIE motors feature metal gears instead of plastic. Polished for low noise and high efficiency, our all-metal gears exceed expectations in tough conditions. We go the extra step in polishing those gears because we believe that a little extra effort goes a long way in creating a better ride.

QUICKIE Motor Technology continually exceeds rigorous testing standards. With a proven 99% success rate, your ride will be unlike any other. QUICKIE 4-pole motors generate 18% more power than previous generations.

LUCI Smart Technology

LUCI prevents tips, collisions, and falls before they happen, so we can see a curb for what it really is: just a harmless little piece of concrete separating the sidewalk from the street. Available as an optional add-on for SEDEO PRO seating.

Learn more about LUCI

C-Me Seat Elevation

No more waiting around or driving at reduced speed when elevated. C-Me® enables you to elevate up to 12" while traveling up to 3 mph (weight limitations may apply). You can lift or descend at the touch of a button with no need to stop while transitioning. Just rise up and go at the same time!

Our power wheelchairs are designed with style for long-lasting performance. Unlike some of our competitors, our suspension doesn't lock out when you drive with C-Me, giving you a smooth and comfortable ride from start to finish. You'll never have to compromise dependability for accessibility again.

C-Me available on SEDEO PRO and SEDEO LITE seating systems.

Learn more about C-Me

Q500 M Seating System Comparison

The QUICKIE Q500 M is available with three distinct seating systems: the versatile SEDEO PRO, the simple SEDEO LITE, and the comfortable Captain Seat.

SEDEO
PRO		 SEDEO
LITE		 Captain
Seat
Clinical Need Medium to High Low to Medium Low
Cryo fluid (available only on JAY Fusion & Syncra seating) ✔ ✔ ✔
Power Recline w/ 4" of Shear (150°) ✔ - -
Manual Recline Option ✔ - ✔
Dual-Link Arm Supports ✔ - -
Power 50° Center Gravity Tilt ✔ ✔ ✔
Power Legrest ✔ ✔ ✔
12" Elevate ✔ ✔ ✔
C-Me Seat Elevation ✔ ✔ -
Seat Width 16" - 22" 15" - 20" 16", 18", 20"
Seat Depth 14" - 22" 16" - 22" 16" - 22"
Backrest Height 21" - 30" 18" - 30" 25"
Learn More Learn More Learn More

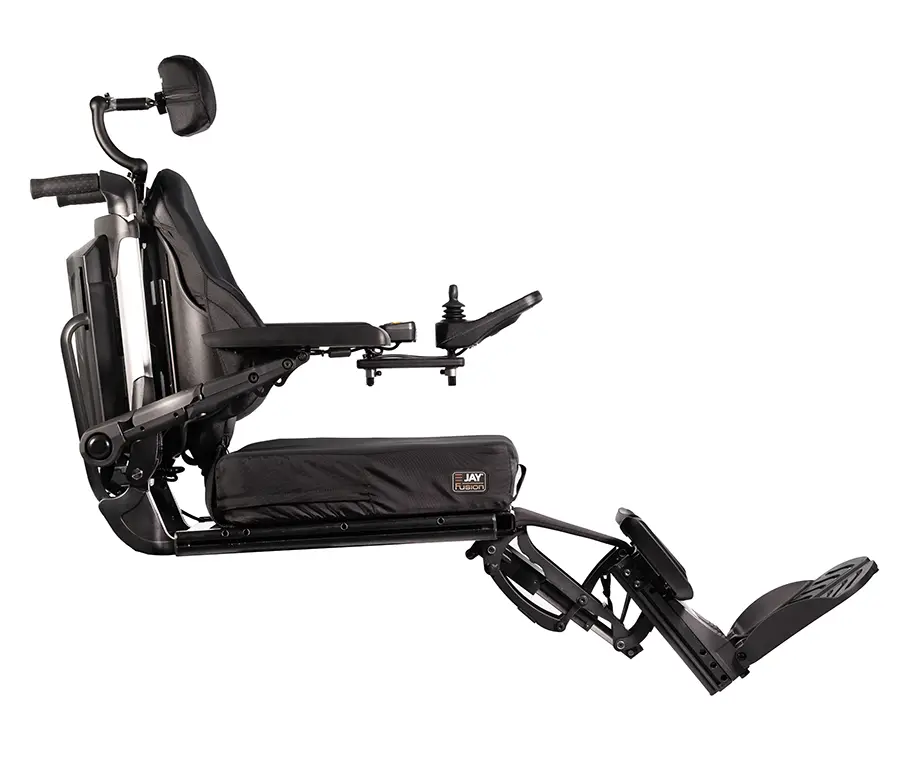

The SEDEO PRO seating system combines a highly adjustable and configurable seating frame with an excellent choice of support options, including a wide range of SEDEO PRO seat cushions and backrests for mild to medium clinical needs. The SEDEO PRO is very comfortable to use and enhances user independence in everyday life.
Learn more about SEDEO PRO seating

  • Adjust seat depth and width, backrest angle and height, legrest angle, lower leg length, armrest height and depth, and headrest height. These adjustment options give you total flexibility and can be done quickly and easily, creating the right seating posture for you. All with one tool allowing for easy configuration in case of changing requirements.

  • A variety of backrest options are available for the SEDEO PRO seating system. The 150° powered recline backrest offers 4” of anti-shear, making sure to minimize the sliding between you and the cushion.

    • Fixed backrest
    • User-adjustable manual semi-recline backrest
    • 150° powered recline backrest with 4" shear reduction

  • The SEDEO PRO offers a full array of footrest options. You can choose a power elevating and articulating leg rest which allows for optimal positioning and comfort. Power elevating leg rests are available as center mount or individual swing-away versions. Alternatively, you can also choose a manual elevating swing-away leg rest or traditional fixed angle style in both swing-away or center mount.

  • Many positioning elements are available like SEDEO headrests & WHITMYER headrests, swing-away lateral thoracic supports, thigh supports, or knee supports.

    All positioning elements are swing-away or easily detachable.

  • The easy-to-operate flip-back armrest gives you unencumbered transfer space. Choose from a removable or reclining version (reclining shown right).

    Also available: single-post removable armrest. All are compatible with four armpad options.

  • The SEDEO PRO offers an excellent choice of options to create the perfect fit for the user. With four backrest types, four armrest types, five legrest types, and a wide range of seat & back cushions, headrests, and positioning options. It can be easily configured to suit individual requirements and quickly adapted to changing needs.

  • The new dual-link arm supports can be easily adjusted to a user's exact needs, allowing for closer joystick positioning and a slimmer profile at the backrest.

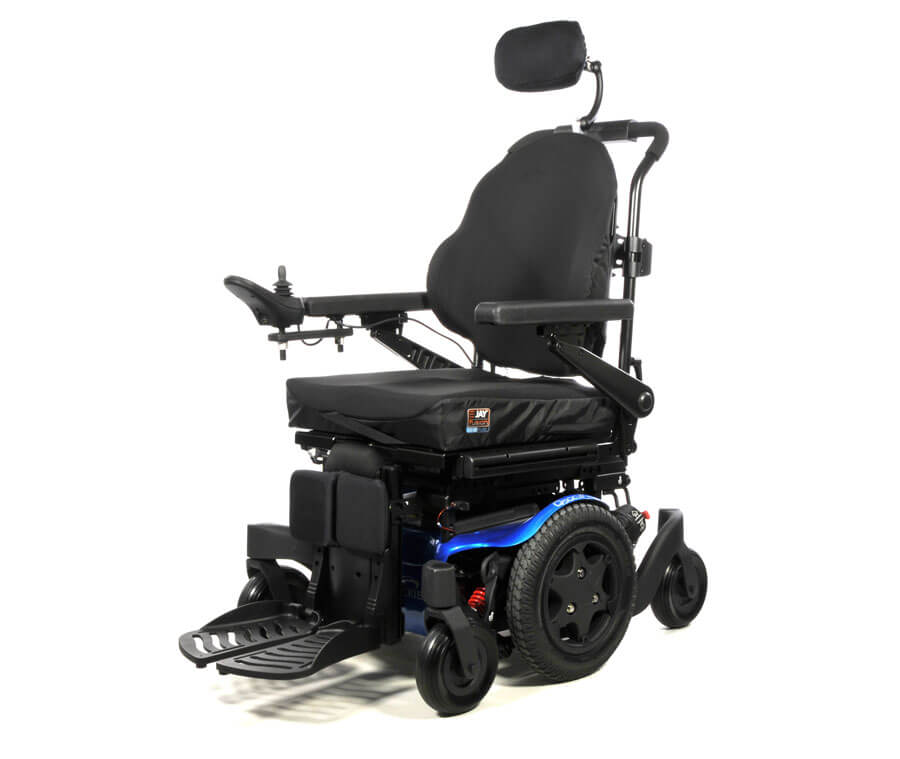

Sometimes less is more. The SEDEO LITE is an adjustable seat frame that gives you a simple, sleek look. Its minimal design alleviates weight capacity concerns when using aftermarket equipment. As one of the lightest seating systems on the market, the Q500 M equipped with SEDEO LITE seating has a starting weight of 266 lbs., making it a great solution for many hitch-mounted lifts. The traditional back canes are width-adjustable from 15" to 20" and easily fit JAY back rests.
Learn more about SEDEO LITE seating

  • Traditional back canes give the ability to easily mount a range of JAY® backrests or a height-adjustable sling back with adjustable straps. Choose from a selection of Whitmyer® or SEDEO® headrests - each are compatible whether you opt for a traditional back mount or the integrated mount with the sling. The side seat rail allows for additional mounting solutions such as transfer bars, thigh supports, and knee supports with infinite adjustment.

  • Effortlessly make a wide range of adjustments using just one tool! To accommodate changing requirements, seat widths can adjust between 15" and 20" and seat depth can adjust between 16" and 22". The easy-to-operate, flip-back armrest gives you unencumbered transfer space. With 5" of armrest height adjustability and a large array of adjustable options available on the SEDEO LITE, it is easy to find the right fit.

  • The SEDEO LITE offers a full array of legrest options. Choose from multiple centermount options such as fixed, power, or the new angle-adjustable centermount.

  • With transportation in mind, the lightweight seat is complemented with a fold-down or removable back to provide one of the most compact power seating systems in the market.

  • The SEDEO LITE offers 50° of tilt with automatic center of gravity (COG) adjustment for improved stability. In addition to the low seat-to-floor height, enjoy 12 inches of elevate, rated up to 300 lbs.!

The Captain Seat provides a relaxed sitting position and features a semi-recline, fold-down backrest, adjustable seat size, and convertible seat pan that allows you to use your preferred cushion. Available with a 50° tilt and power centermount legrest.

  • Depth-adjustable seat size, legrest placement, and armrest width
  • Convertible seat pan for flexibility in cushion selection
  • Semi-recline and fold-down backrest
  • Optional oxygen, crutch, and walker holders

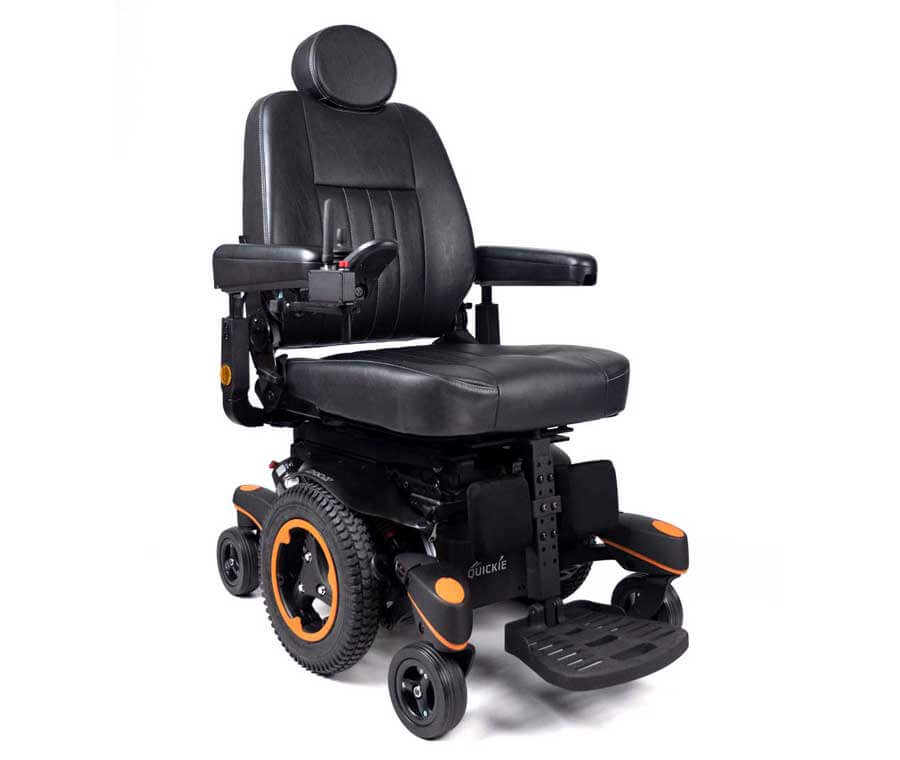

Pictured: Captain Seat shown on the Q700 M base

JAY Syncra Seating System

The JAY® Syncra™ cushion and back support system are designed to work together to maintain pelvic stability and alignment, especially during tilt and recline. This combination minimizes the risk of posterior pelvic tilt, reduces shear forces, and helps users achieve a more stable, supportive seating position.

Available covers include 4-Way Stretch and Premium Leatherette.

Syncra is exclusively available on SEDEO PRO and SEDEO PRO Advanced seating systems.

  • The Syncra cushion includes a lowered rear pelvis wall and deeper leg troughs, cradling the pelvis and thighs to improve alignment and prevent sliding. Its 4" tall, contoured design helps reduce pressure injuries by offering targeting pressure relief.

    JAY Syncra featuring CryoFluid – which comes standard on the Syncra – is the optimal seating system for power wheelchair users who have a history of pressure injuries. Learn more about Cryo Technology.

  • The Syncra back support features a highly adjustable shell placement to optimize the rider's position. In addition, the back's customizable width and height accommodate changes in user needs over time. Finally, a scalloped bottom edge encourages optimal positioning throughout the full recline movement.

  • The Syncra removable lateral thigh supports are height, width, depth, and angle adjustable to align with the angle of the leg for optimal positioning. The quick-release lever allows for easy placement and removal which may benefit clients with limited dexterity.

  • Lateral thoracic supports enhance lateral support beyond the back depth for riders who may lean to the side and benefit from extended stability. Available in two styles:

    • Fixed, which mounts under the backrest cover to add up to 2" of contour with broad height adjustability
    • JAY Swing-Away, allowing easy transfer access
JAY Syncra Seating System

JAY & WHITMYER Seating and Positioning Options

A wide range of JAY cushions and backs & WHITMYER headrests are available with the Q500 M to meet all of your clinical needs.

Find out more
JAY J2 Wheelchair Cushion

J2® Series Cushions

JAY Flow fluid® and a contoured base wheelchair cushion for outstanding skin protection and stability

JAY J3 Wheelchair Back

J3® Back

More sizes. More styles. More wheelchair backs for the perfect fit.

JAY Fusion Wheelchair Cushion

Fusion® Cushion

Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability

Whitmyer Plush Wheelchair Headrest

PLUSH

Curved, single pad wheelchair headrest for posterior head support

Control at Your Fingertips

Control your environment with the Q500 M and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read color display and simple-to-control paddle switches allow for intuitive operation.

CONNECT

Seamlessly take control of your environment using the integrated infrared functionality. Control your TV, docking stations, and other home entertainment systems easily via your joystick.

BLUETOOTH®

Control your phone, computer, tablet, and any other Bluetooth® devices, compatible with Android™ and Apple® iOS devices from your Q500 M power wheelchair with this useful optional extra. Connect and control up to four devices.

QUICKIE-PATENTED ASSIGNABLE BUTTONS

Change the function on any button on your joystick to any command you desire thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons for quicker, simpler, and smoother access to commonly used functions without having to use your joystick.

SWITCH-IT Specialty Controls

If driving with a traditional joystick is not the best option, alternative drive controls allow you to fully experience your Q500 M power wheelchair's driving capabilities and benefits.

Find out more
Switch-It MicroGuide

MicroGuide

Light-touch proportional control

Switch-It VersaGuide

VersaGuide

Compact proportional control

Switch-It Dual Pro

Dual Pro®

Truly proportional head array for intuitive driving

Specifications

Dimensions
Product Width:
  • Q500 M: 24"
  • JAY Syncra Back: 16", 18", 20", 22"
Product Length:33"
Product Height:JAY Syncra Cushion: 4"
Seat Width:
  • SEDEO PRO: 16" to 22"
  • Captain Seat: 16", 18", 20"
  • JAY Syncra Cushion: 16" to 20" & 22"
Seat Depth:
  • SEDEO PRO: 14" to 22"
  • Captain Seat: 16" to 22"
  • JAY Syncra Cushion: 16" to 20" & 22"

(effective)

Seat-to-Floor Height:16.5" to 19"
Back Height:
  • SEDEO PRO: 21" to 30"
  • Captain Seat: 25"
  • JAY Syncra Back: 22" to 30", utilizing 16", 18", 20", 22" back shell heights
Turning Radius:18.5" (without footplate)
Ground Clearance:3"
Product Information
Model Number:EIPW30
HCPCS Code:
  • No Power Seating Options: K0848
  • Single Power Seating Options: K0856
  • Multi Power Seating Options: K0861
  • Captain Seat: K0849
Warranty:Lifetime Limited
Performance/Weights
Max. Range:Up to 14 miles
Max. Speed:6 mph
Battery Size:
  • Group 34
  • Group 22
Drive Wheel Position:Mid
Wheel Options:13" or 14" drive wheels; 7" casters
Transit:ISO 7176-19:2008 Transit Approved
User Weight Capacity:300 lbs.
Product Weight:SEDEO PRO, with batteries
  • No Power Seating Options: Starting at 266 lbs.
  • Single Power Seating Options: Starting at 291 lbs.
  • Multi Power Options: Starting at 338 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
