Q200 R Power Wheelchair

Ultra-compact RWD power wheelchair with super-tight indoor maneuverability and ZERO compromise on outdoor stability and performance.

Find Your Dealer

The Q200 R is the next level power wheelchair perfect for outdoor use, while still providing a great indoor solution.

The QUICKIE Q200 R rear-wheel drive power wheelchair was developed using an innovative testing method called SMART base technology. This helped us to understand how geometry changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair. With the help of SMART base development, the Q200 R powerchair boasts a small footprint of 22.8" wide and 42" long with a 18.3" turning radius, so navigating even the tightest of spaces is a breeze.

Going out? The Q200 R provides great stability to prevent tipping and is ideal for the taller and larger user, with a maximum user weight of 300 lbs. Using the Q200 R is no uphill struggle; with its larger caster wheels, it can tackle any open-air terrain. The Q200 R provides excellent outdoor performance as it easily maneuvers through uneven and hilly territory with the ability to tackle hills of up to 8°. Unbelievably light at 216 lbs. with a fold-down back, the Q200 R is also easy to hoist in and out of vehicles.

Find Your Local Dealer

Options and Prices

Get expressive with color!

Make a statement with the Q200 R's sophisticated matte black contoured shroud and drive & caster wheels. Look smart with a choice of seven vibrant color insets to complement your style.

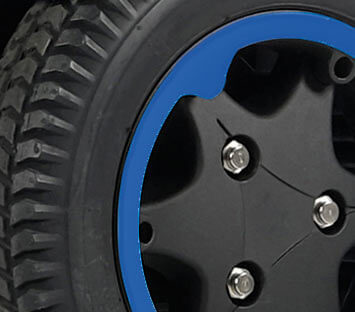

Blue

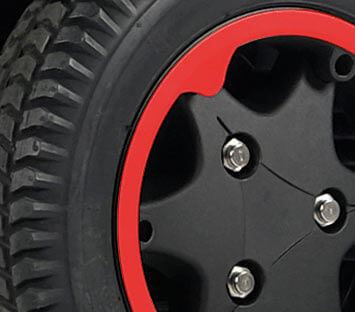

Red

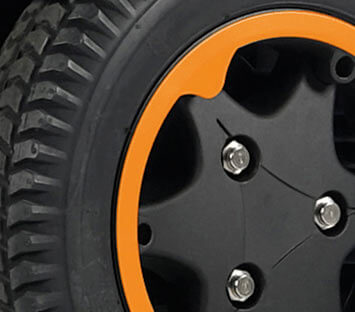

Orange

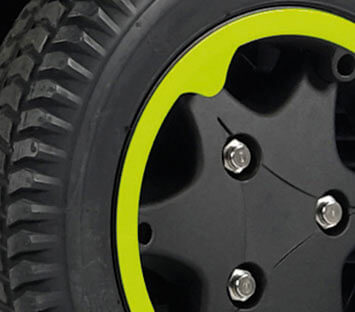

Green

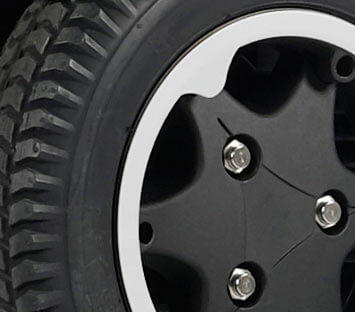

White

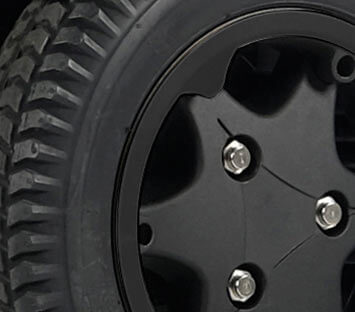

Black

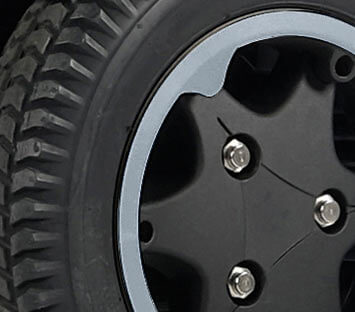

Silver

SMART base technology

All indoor/outdoor power wheelchairs face the same problem... we solved it with SMART base technology.

Our vision was to create a TRUE indoor/outdoor powerchair with super-tight indoor maneuverability and no compromises on outdoor stability and performance. But how do you design such a finely-balanced powerchair?

A large drive base means difficulty when maneuvering in tight environments. Too small, and it becomes tippy with a loss of traction. With SMART base technology, we were able to test hundreds of configurations to find the perfect combination.

The result is the QUICKIE Q200 R. A legitimately compact power wheelchair that delivers the very best traction, stability, and even the ability to climb curbs of up to 3".

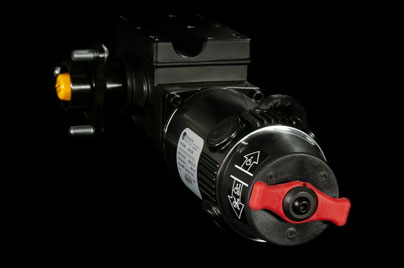

QUICKIE Motor Technology

Our robust motor technology can't be easily duplicated anywhere else. That's because we've spent years working closely with our manufacturer to develop a longer-lasting, highly efficient motor with improved performance, drivability, and range.

Engineered for optimal driving performance

We know that more time is spent maneuvering around a home and workplace versus traveling long distances. That's why we've designed our motors to give you the control you need in small spaces without sacrificing the power you want to tackle obstacles. Plus, you'll be able to drive 10% further on the same battery capacity. Similar to a car driving on the highway versus in the city, don't sacrifice performance in places where it's needed the most.

Reduced thermal rollback

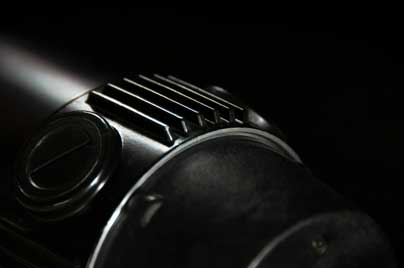

The larger fins found on our motors aren't just a stylish design feature. Larger cooling fins enable heat to escape more effectively, reducing your risk of thermal rollback so you can drive 15% further and faster when combined with the additional boost, even when on an incline or faced with uneven surfaces.

Equipped with 10 seconds of power boost

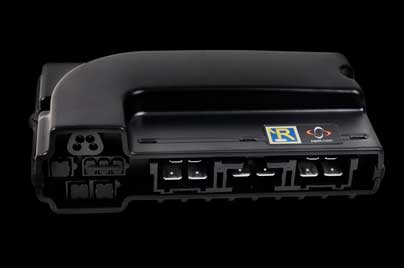

Overcoming obstacles like steeper inclines and even door jambs gets easier with our controller and motor combination. These two systems work together to provide you with an additional 10 seconds of boost for that extra power whenever you need it.

Designed to last

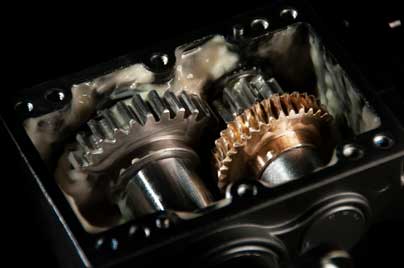

Unlike some of our competitors, QUICKIE motors feature metal gears instead of plastic. Polished for low noise and high efficiency, our all-metal gears exceed expectations in tough conditions. We go the extra step in polishing those gears because we believe that a little extra effort goes a long way in creating a better ride.

QUICKIE Motor Technology continually exceeds rigorous testing standards. With a proven 99% success rate, your ride will be unlike any other. The Q200 R's 2-pole motors generate 15% more power than previous generations.

The small power wheelchair that's BIG on getting out and about

Heading out? The Q200 R is just as at home outdoors as it is indoors. Painstakingly researched, its compact dimensions provide surprisingly stable traction over a variety of terrains, hills, and even when tackling curbs. With a length of 42", 22.8" width, and sporting 14” (or 12") drive wheels & 9” casters, the Q200 R provides great stability and traction. Its rugged exterior and muscle comes in handy when driving over uneven terrain.

Compact form factor for easy transportation

The Q200 R powerchair weighs a trim 98 kg, so it can be hoisted in and out of vehicles with ease. Worried about space? With a fold-down back and removable legrests/armrests, it'll fit snugly in most cars or nicely store away at home.
Don't let curbs get in the way

The Q200 R provides great traction when driving up ramps because the chair weight shifts towards the rear drive wheels. When traveling outside at higher speeds, the Q200 R tracks straight so you are in complete control. With 9" front casters, driving over obstacles like 3" curbs is not a challenge.
The power to get you there

Powered by punchy Group 22 batteries, the Q200 R electric wheelchair loves a spin around town, long city trips, as well as tackling more challenging or hilly terrain. With the stamina to go up to 15.5 miles on a single charge, you'll have plenty of time to make detours for other adventures along the way.
Never an uphill struggle

Indoor/outdoor power wheelchairs don't traditionally cope well with steep gradients - a problem we solved with SMART base technology. Precision testing determined that a 32" base length on the Q200 R provides the best stability to prevent tipping and keep the driver safe - even when traveling up 8° inclines.

SMART base technology helped to calculate not only the dimensions for a compact base, but also the ideal seated position for maximizing traction between the drive wheel and the ground. Combined with the Q200 R's drive wheel suspension, it enables the kind of safe, smooth, and responsive ride that's normally associated with a larger powerchair.
Ready to roam

Primed for public transport, the intuitive Q200 R power wheelchair is so compact and maneuverable that getting on and off trams, buses, and trains is a breeze. Prefer to travel by car? The Q200 R can be compactly stored in the trunk or used as a seat while travelling.

The small power wheelchair that's BIG on getting out and about

Q200 R Seating System Comparison

The QUICKIE Q200 R is available with two distinct seating systems: the comfortable Captain Seat and the versatile Rehab Seat.

	Captain Seat	Rehab Seat
Clinical Need	Low	Medium to High
CryoFluid^™ (available only on JAY Fusion cushion)	✔	✔
Manual Recline Option	✔	-
Power 22° Center of Gravity Tilt	✔	✔
Power Leg Support	✔	✔
Seat Width	16", 18", 20"	15" to 21"
Seat Depth	16" to 22"	16" to 20"
Back Height	25"	18" to 30"

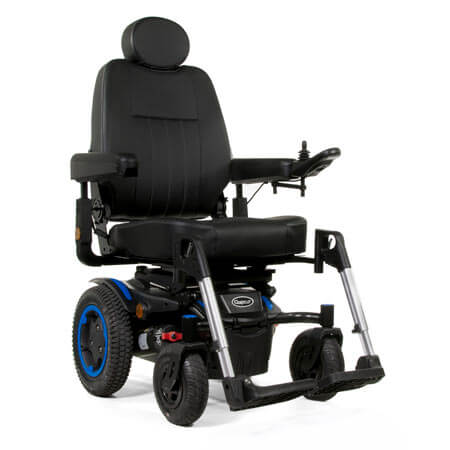

Captain Seat

The Captain Seat provides a relaxed sitting position and features a semi-recline fold down back, adjustable seat depth, and convertible seat pan that allows you to use your preferred cushion. Available with a 22° tilt and power elevating, swing-away leg supports.

Adjustable seat depth size, leg support placement, and arm support width
Convertible seat pan for flexibility in cushion selection
Semi-recline and fold-down back
Optional oxygen, crutch, and walker holders

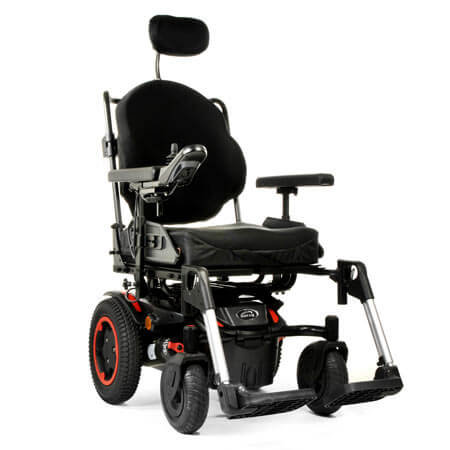

Rehab Seat

The minimal design of the Rehab Seat alleviates weight capacity concerns when using aftermarket equipment. Traditional back canes are available in 16" & 19" widths and easily fit JAY^® backs.

The traditional back canes easily fit a range of JAY^® backs, and the clamp hardware allows infinite height adjustment.
Alternatively, you can choose from a height-adjustable sling back with adjustable straps.
Choose from a selection of Whitmyer^® or SEDEO^® head supports – compatible whether you opt for a traditional back mount or the integrated mount with the sling.

Specifications

Dimensions

Product Width:22.8"

Product Length:32"

(without footplates)

Seat Width:

Captain Seat: 16", 18", 20"
Rehab Seat: 15" to 21"

Seat Depth:

Captain Seat: 16" to 22"
Rehab Seat: 16" to 20"

Seat-to-Floor Height:17" to 19"

Back Height:

Captain Seat: 25"
Rehab Seat: 18" to 30"

Turning Radius:18.3"

(without footplates)

Ground Clearance:3"

Product Information

Model Number:EIPW35

HCPCS Code:Group 3 – Standard Duty

No Power Seating: K0848
Single Power Seating: K0856

Performance/Weights

Max. Range:Up to 15.5 miles

Max. Speed:6 mph

Battery Size:Group 22

Drive Wheel Position:Rear

Wheel Options:12" or 14" drive wheels; 9" casters

Transit:ISO 7176-19:2008 Transit Approved

User Weight Capacity:300 lbs.

Product Weight:Starting at 216 lbs.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Brochures

Order Forms

Owners Manuals

Other

4 Steps to a Healthy Battery

Frequently Asked Questions

How often should my power chair be serviced?

Ideally, your power chair should be serviced as least once a year by an authorized Sunrise Medical dealership.

Is the power chair crash tested with an EZ Lock docking system?

Please visit http://www.ezlock.net/compatibility/ for this information.

Where can I find the serial number on my wheelchair?

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.

I've scratched the frame of my wheelchair. Do you offer touch-up paint?

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.

What wheelchair cushions are available?

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.
