Switched Head Arrays

Switched head control

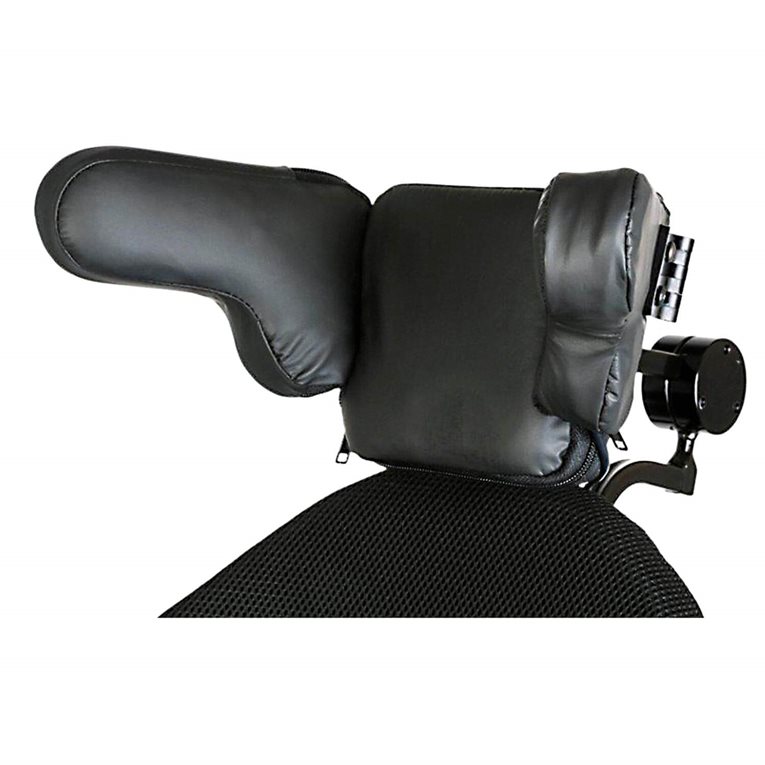

Switch-It traditional switched head arrays use zero-touch proximity sensors which are specifically designed for power wheelchair application and are less susceptible to interference from high electromagnetic fields generated by power wheelchairs.

The HDR-4M2 is a 3-switch head array with two ⅛" monojack ports for a dedicated external mode switch to provide the 4th and 5th functions as desired. HDR-5 is a 5-switch head array with a dedicated sensor for reverse (choose -RL for reverse on left wing or -RR for reverse on right wing) and a dedicated sensor for mode in the opposite wing. A dipswitch panel on the back of the head array gives the ability to turn the sensor on or off.

Find Your Local Dealer

From $5026

This price is based on standard configuration only. This item may have multiple additional extras that are not included in the published price. Please see your local authorized dealer for a detailed quote.

Please call 1-800-333-4000 to order this product Options and Prices

Lateral Pads

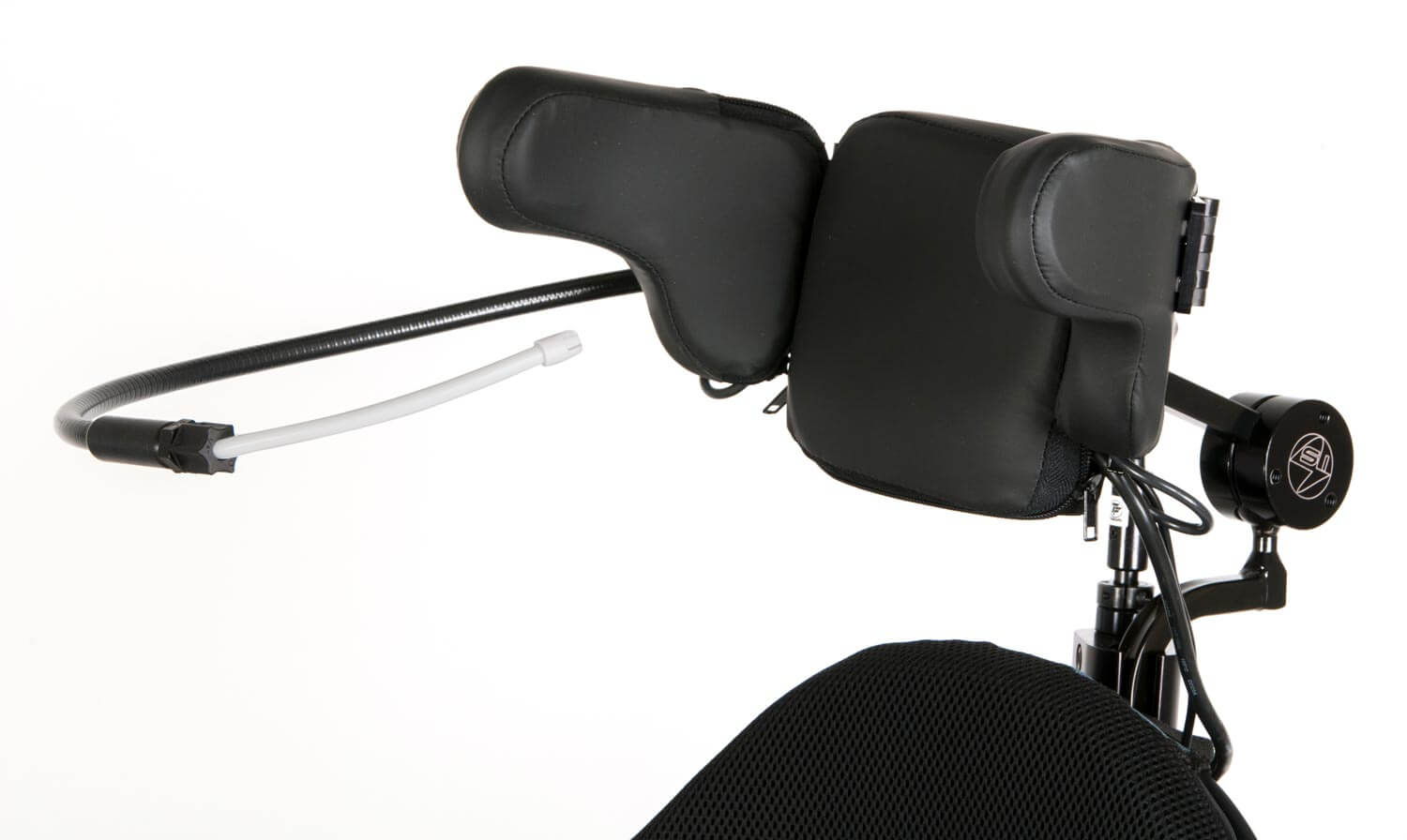

The switched head arrays may be configured with the following lateral pad combinations:

S-S: Short, straight wings
S-C: Short, curved wings
L-S: Long, straight wings
L-C: Long, curved wings

The 5-switch head array is only available with long, straight wings due to sensor placement and activation area tolerances.

Mode Switches

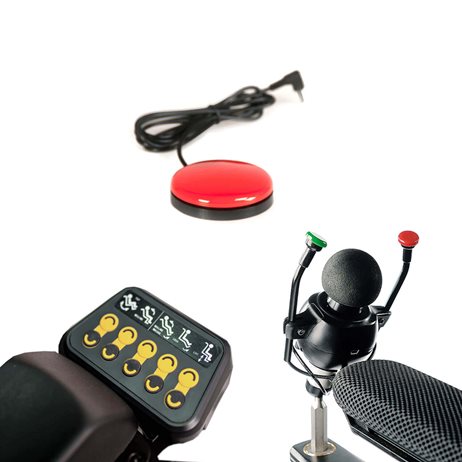

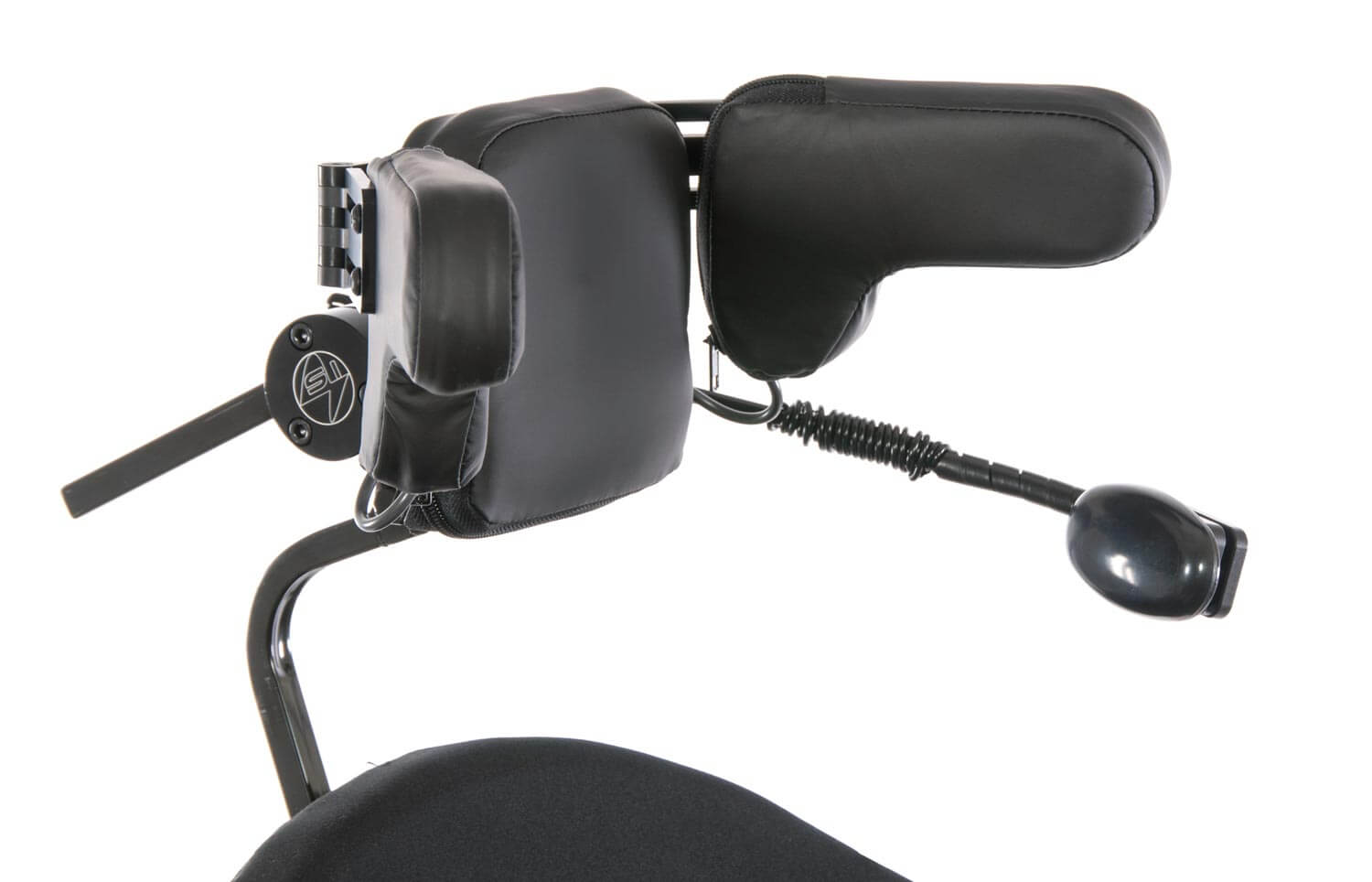

Several mode switch types and mounting options are offered for use with the switched head arrays. The Egg Switch, MicroLite, and Piko may be mounted on a rigid swing-away rod (12" long). A fiber optic switch mounted in a flexible gooseneck is another option.

Specifications

Dimensions

Dimensions:Activating Surface:

Backpad: 2" x 1" (50 x 25 mm)
Long lateral pads: 4" x 2" (100 x 50 mm)
Short lateral pads: 2" x 1" (50 x 25 mm)

Product Information

Model Number:HDR-4M
HDR-5

HCPCS Code:E2312

Starting Retail Price:$5,026

Performance/Weights

Alternative Control Type:Switched

Activation Type:Proximity

Feedback:Wheelchair Movement

Connector:DB9 Connector to Wheelchair Omni or Enhanced Display

Compatibility:

Penny and Giles R-Net (Omni Display from wheelchair manufacturer is required)
Quantum Q-Logic electronics (Enhanced Display from wheelchair manufacturer is required)
Not compatible with Invacare electronics

Mode Switch Inputs:

Proximity Flex Switches
Mechanical switches (i.e., Egg Switch, MicroLite, Piko) into Omni or Enhanced Display
Fiber optic systems (1FBOS, 2FBOS)

Mounting Options:Headrest mounting hardware included: ½" square hardware with 1" mounting ball or Whitmyer hardware (Axys) with ¾" mounting ball. Other mounting hardware available upon request for an upcharge.

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
